Communication Interface Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

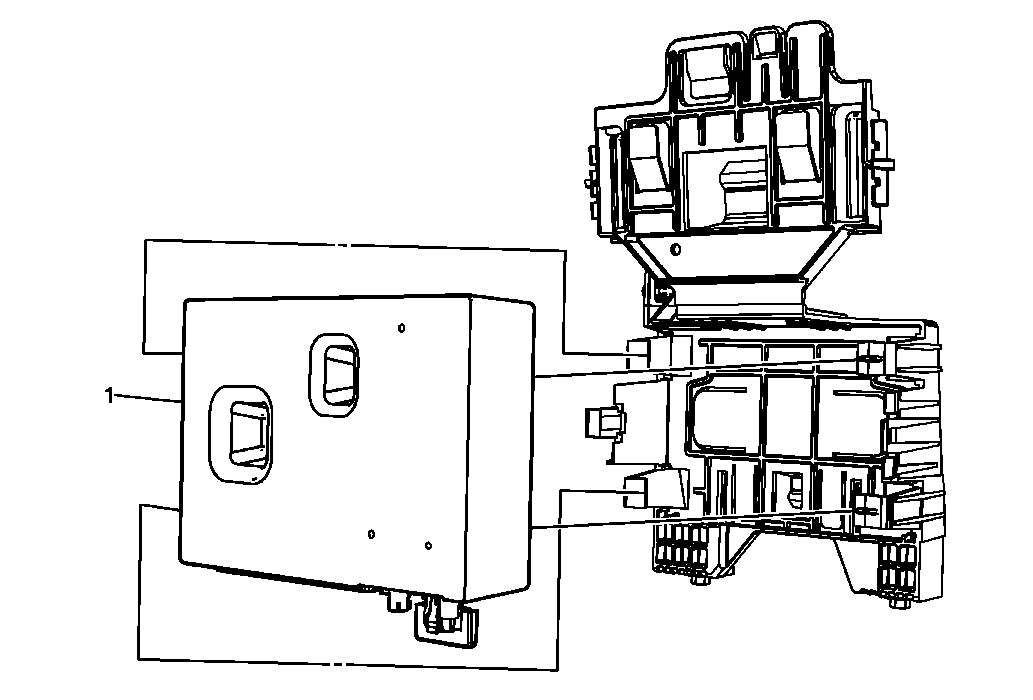

Fig 1: View Of Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .
1	Communication Interface Module Procedure Disconnect the electrical connections. If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .

Communication Interface Module

Procedure

Disconnect the electrical connections.
If replacing the communication interface module be sure to transfer Bluetooth antenna, if equipped.
For programming and set up procedures, refer to Control Module References .
