Rear Differential Clutch Control Module Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

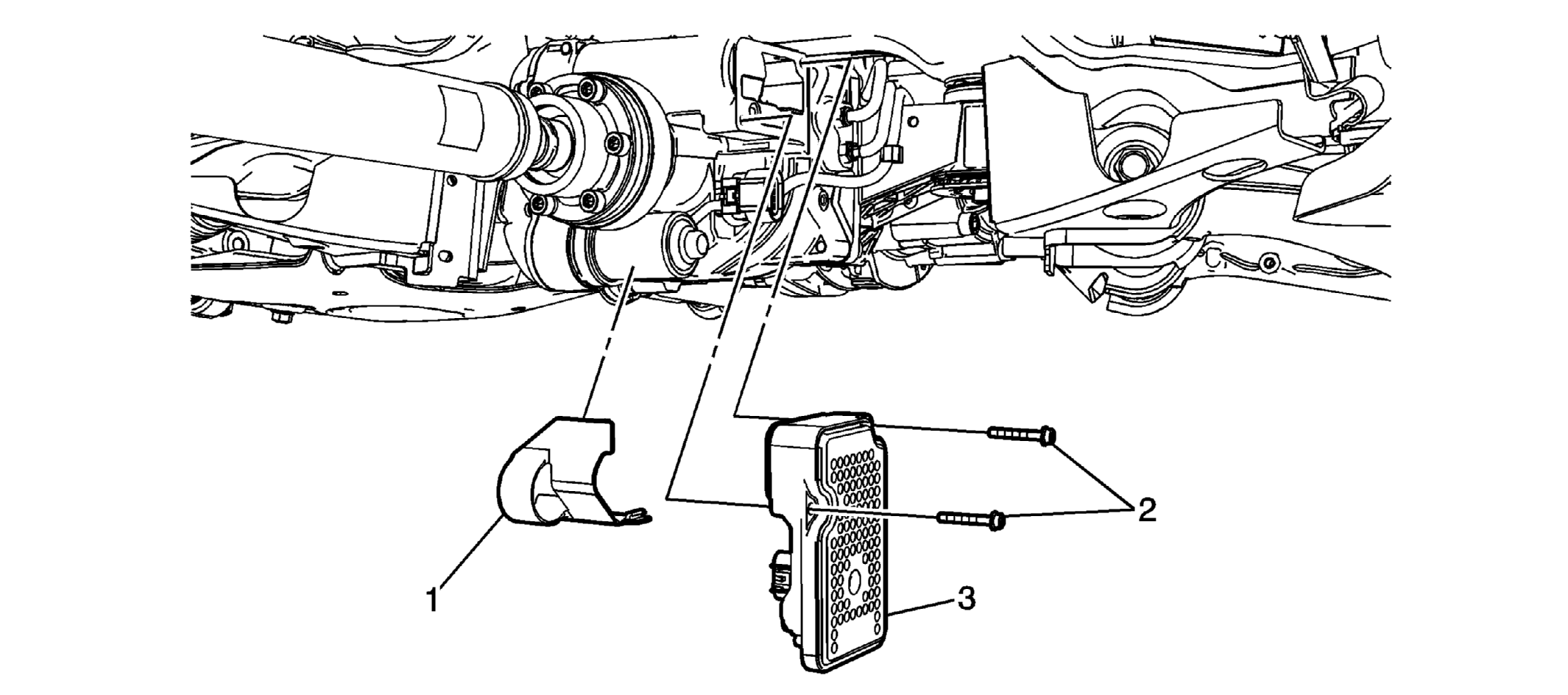

Fig 1: Identifying Rear Differential Clutch Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Protective Cover
2	Differential Clutch Control Module Bolts (Qty: 2) WARNING: The hydraulic pressure in the differential clutch is very high. To prevent personal injury, wait for at least 10 minutes before removing any parts from the differential clutch. CAUTION: Refer to Fastener Caution . Procedure: DO NOT remove the mounting bolts, leave them attached to the Differential Clutch Control Module. Tighten: 6 N.m (53 lb in)
3	Rear Differential Clutch Control Module and Seal Procedure Disconnect the electrical connector. If the Differential Clutch control Module and the valve separate, perform the following: Pull the valve straight out of the bore. Assembly the Differential Clutch control Module and the valve prior to the installation of the seal. Install the NEW seal. DO NOT re-use the old seal. Clean the area with a lint free cloth prior to installing the Differential Clutch Control Module and the valve. Tip: Some oil may leak with the Differential Clutch control Module and valve removed.
