Front Lighting (X88)

Front Lighting (X88)

Component Name Callout
Headlamp - Right Low Beam 1
Headlamp - Right High Beam 2
Park/Turn Signal Lamp - Right 3
Side Marker Lamp - Right Front 4
Headlamp - Left High Beam 5
Headlamp - Left Low Beam 6
Side Marker Lamp - Left Front 7
Park/Turn Signal Lamp - Left 8

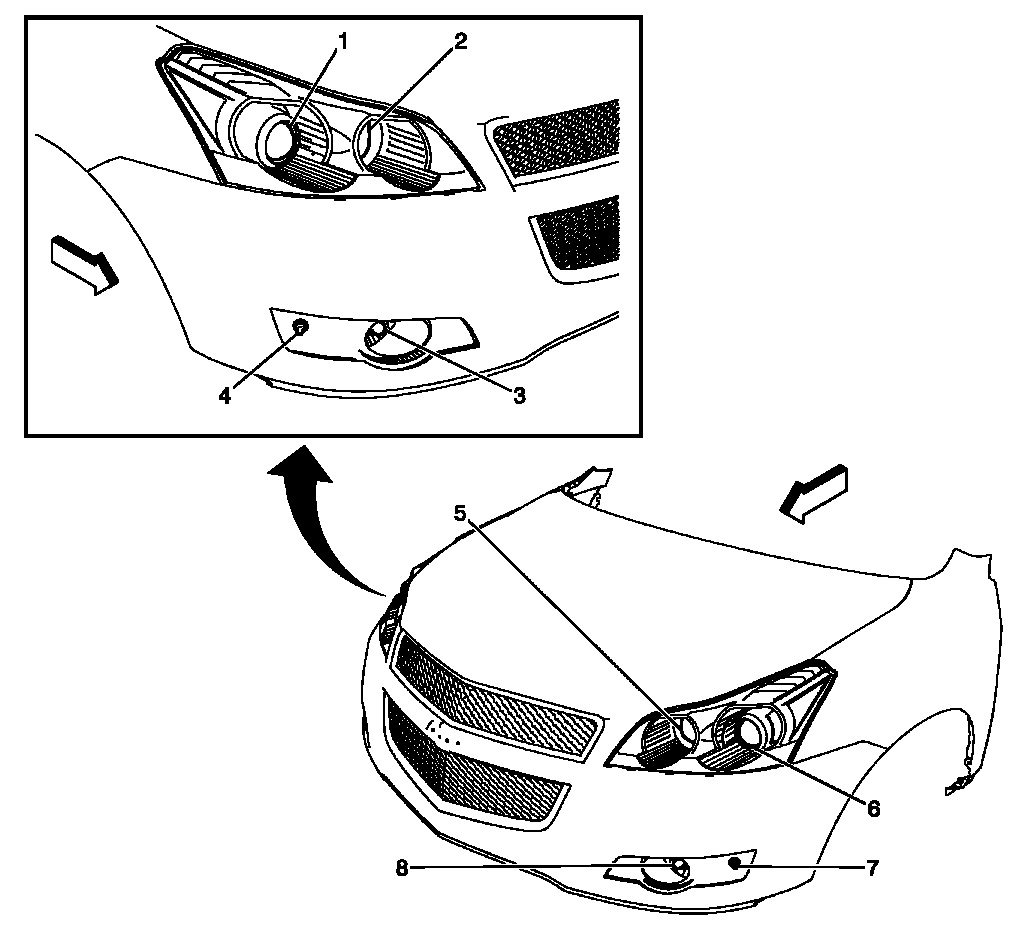

Fig 1: Identifying Front Lighting Components (X88)
GM2178598Courtesy of GENERAL MOTORS CORP.
