Object Detection Wiring Schematics

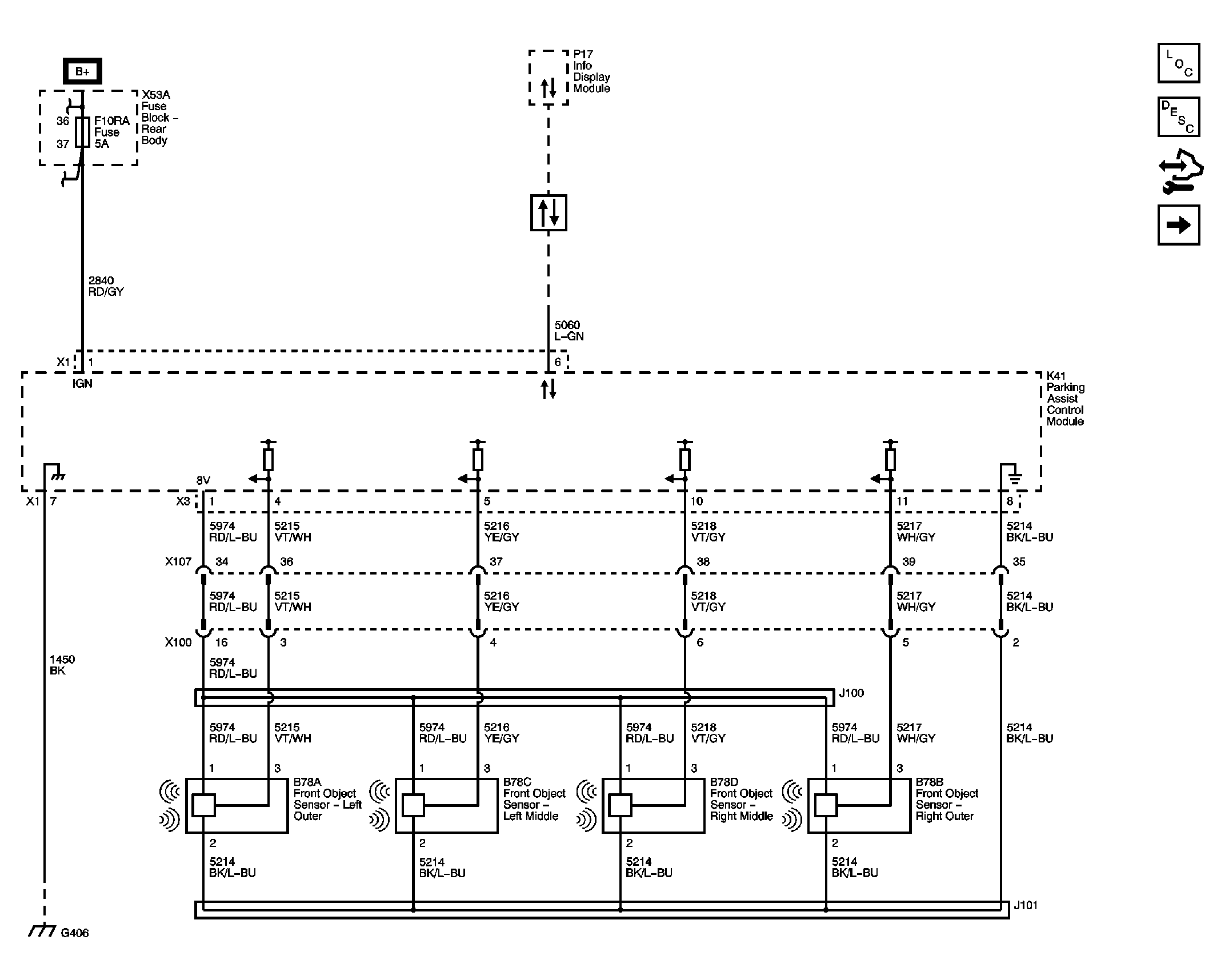

Fig 1: Front Park Assist Wiring Schematic

GM2489895

Courtesy of GENERAL MOTORS CORP.

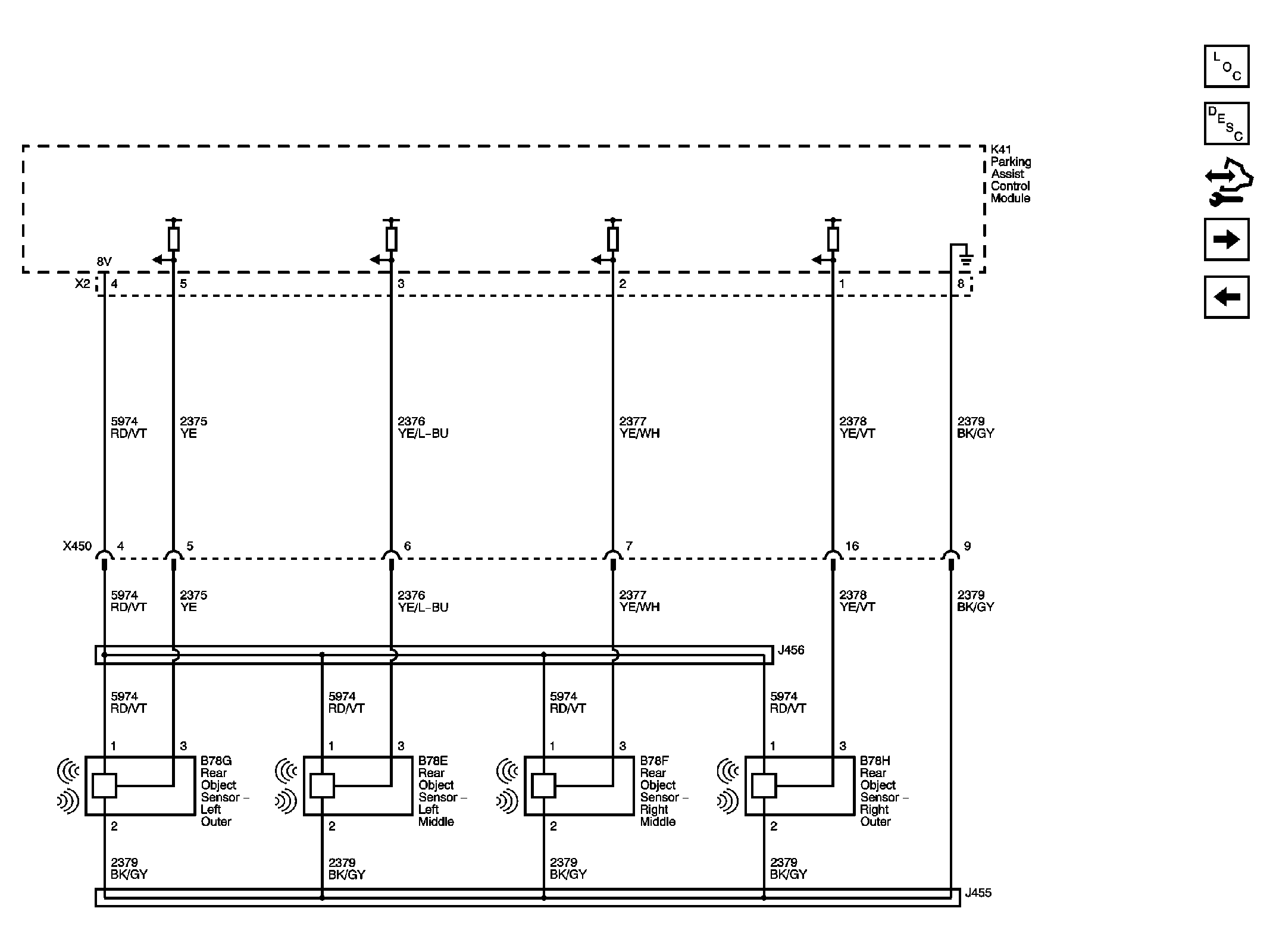

Fig 2: Rear Park Assist Wiring Schematic

GM2489896

Courtesy of GENERAL MOTORS CORP.

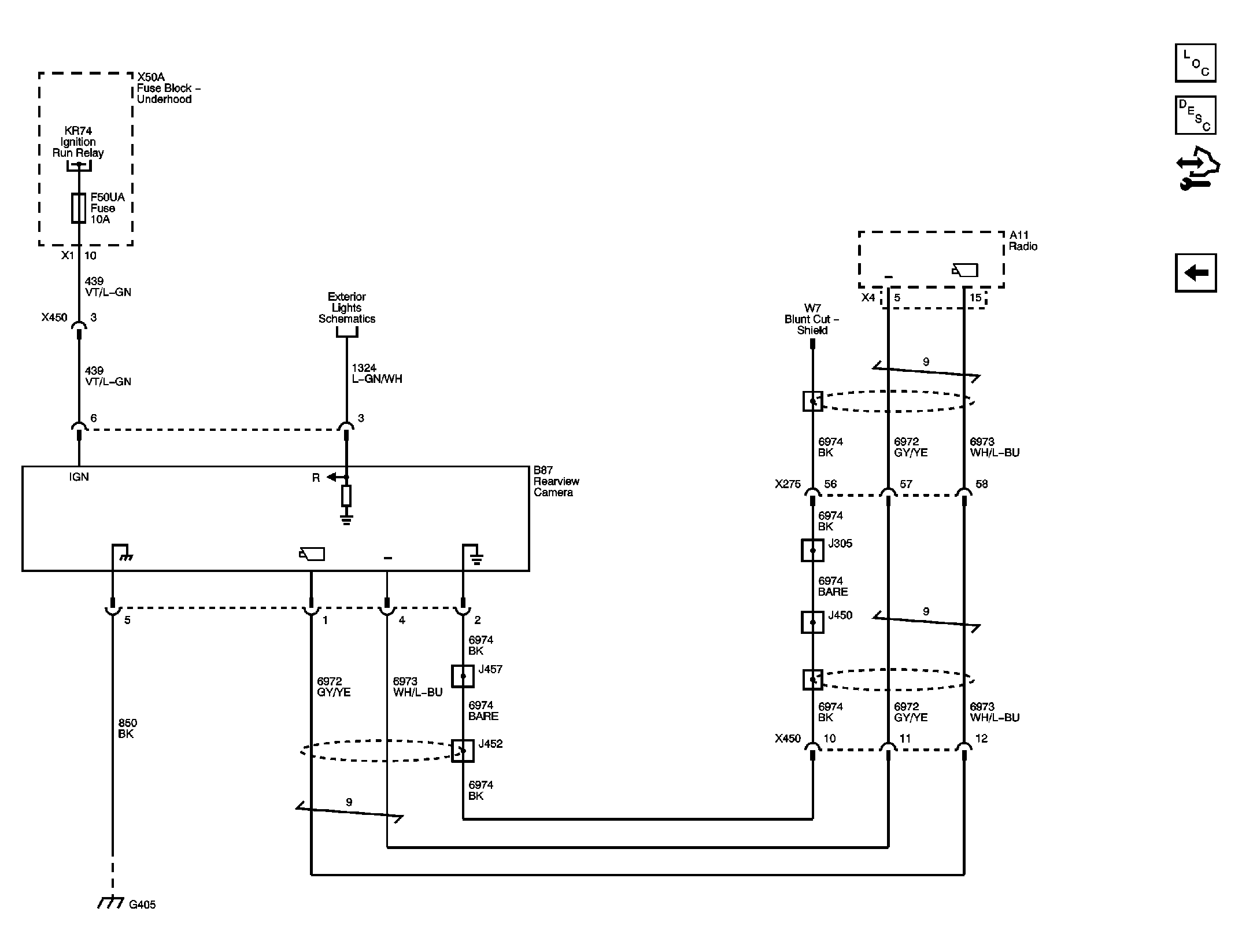

Fig 3: Rearview Camera Wiring Schematic

GM2489897

Courtesy of GENERAL MOTORS CORP.
