Steering Wheel Secondary/Configurable Control Wiring Schematics

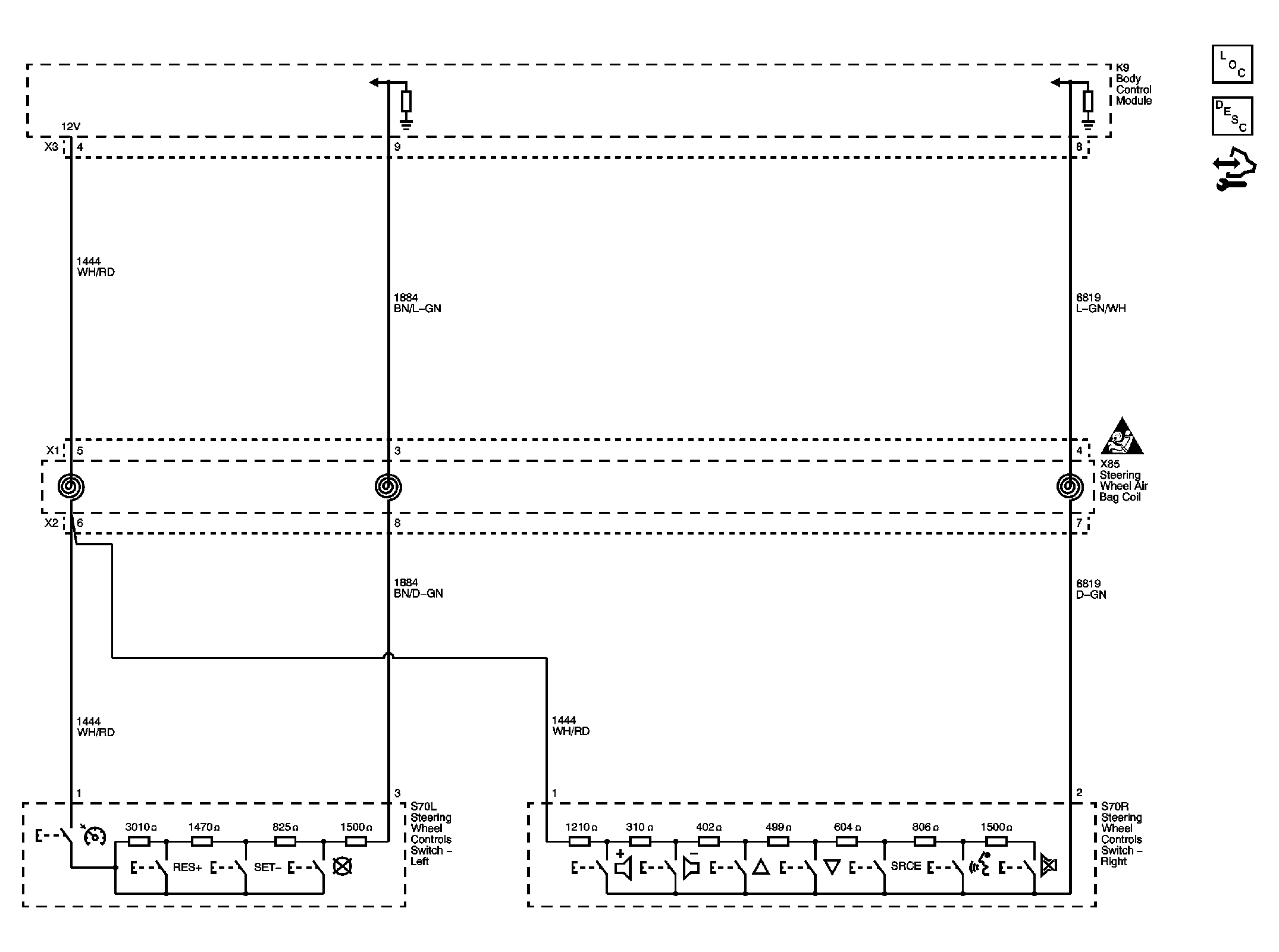

Fig 1: Steering Wheel Controls Wiring Schematic
GM2488632Courtesy of GENERAL MOTORS CORP.
