Fuse Block Replacement

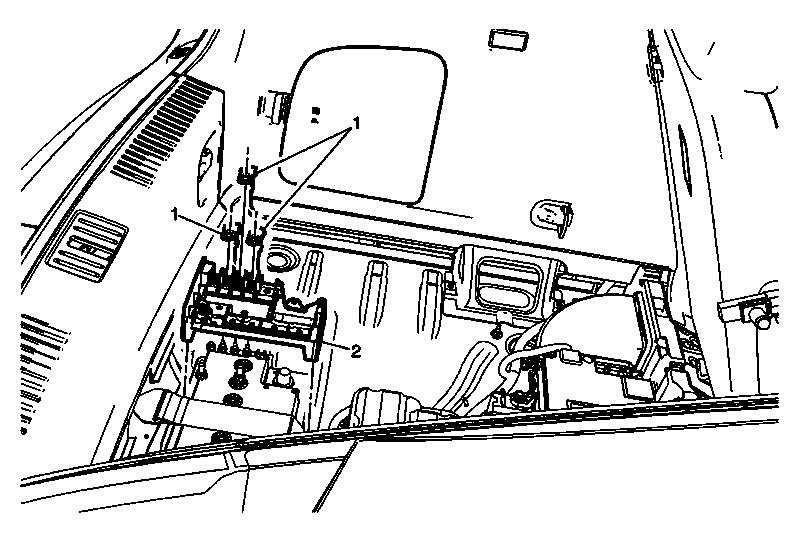

Fig 1: Locating Fuse Block

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the fuse block cover. Remove the negative battery cable. Refer to Battery Negative Cable Replacement . Remove the battery positive cable. Refer to Battery Positive Cable Replacement .
1	Body Harness Terminal Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 17 N.m (13 lb ft)
2	Fuse Block

Callout

Component Name

Preliminary Procedures

Remove the fuse block cover.
Remove the negative battery cable. Refer to Battery Negative Cable Replacement .
Remove the battery positive cable. Refer to Battery Positive Cable Replacement .

Body Harness Terminal Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 17 N.m (13 lb ft)

Fuse Block
