Accessory Switch Replacement

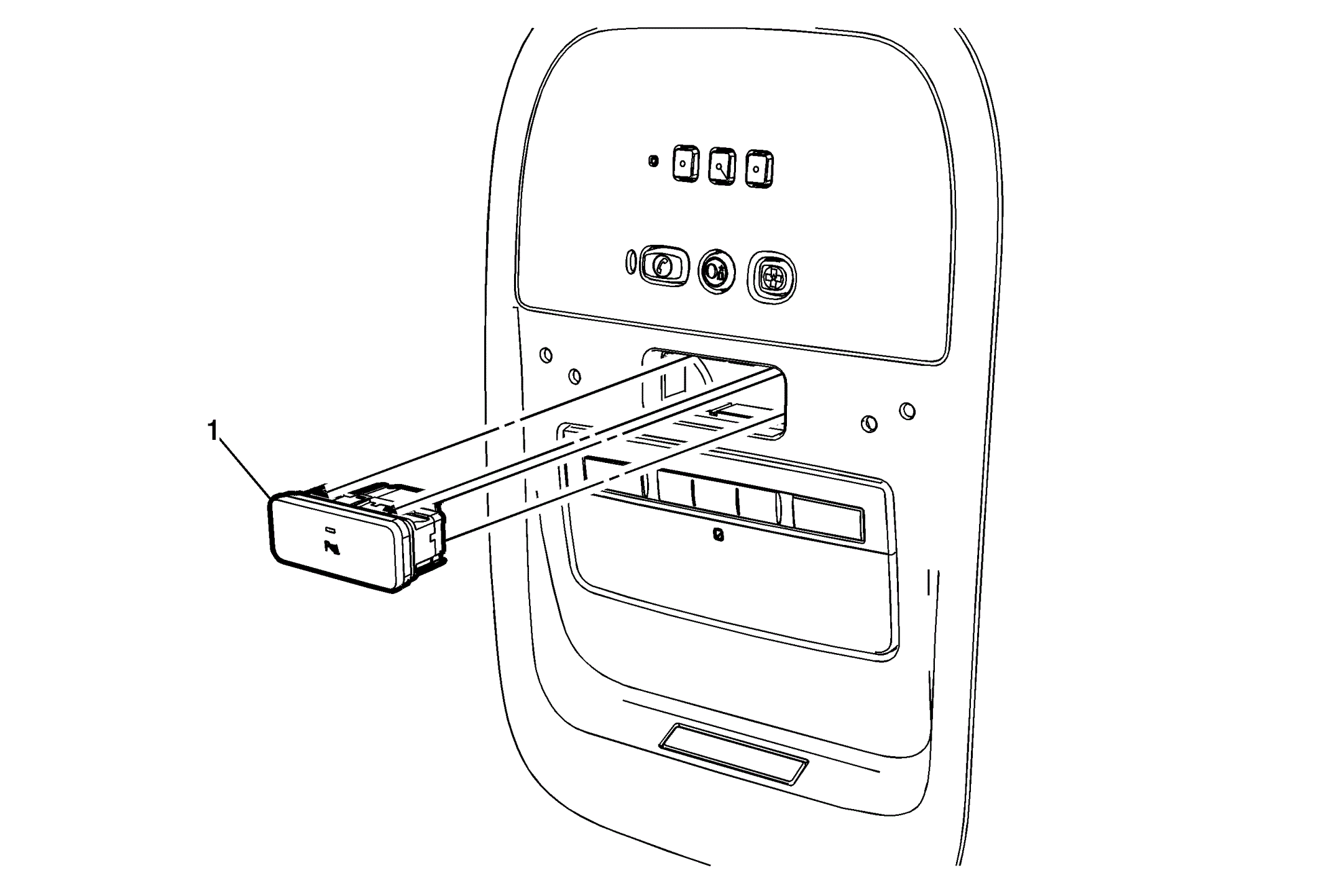

Fig 1: Accessory Switch
GM2406424Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the roof console. Refer to Roof Console Replacement .
1 Accessory Switch
Procedure:
Disconnect the electrical connector.
