Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

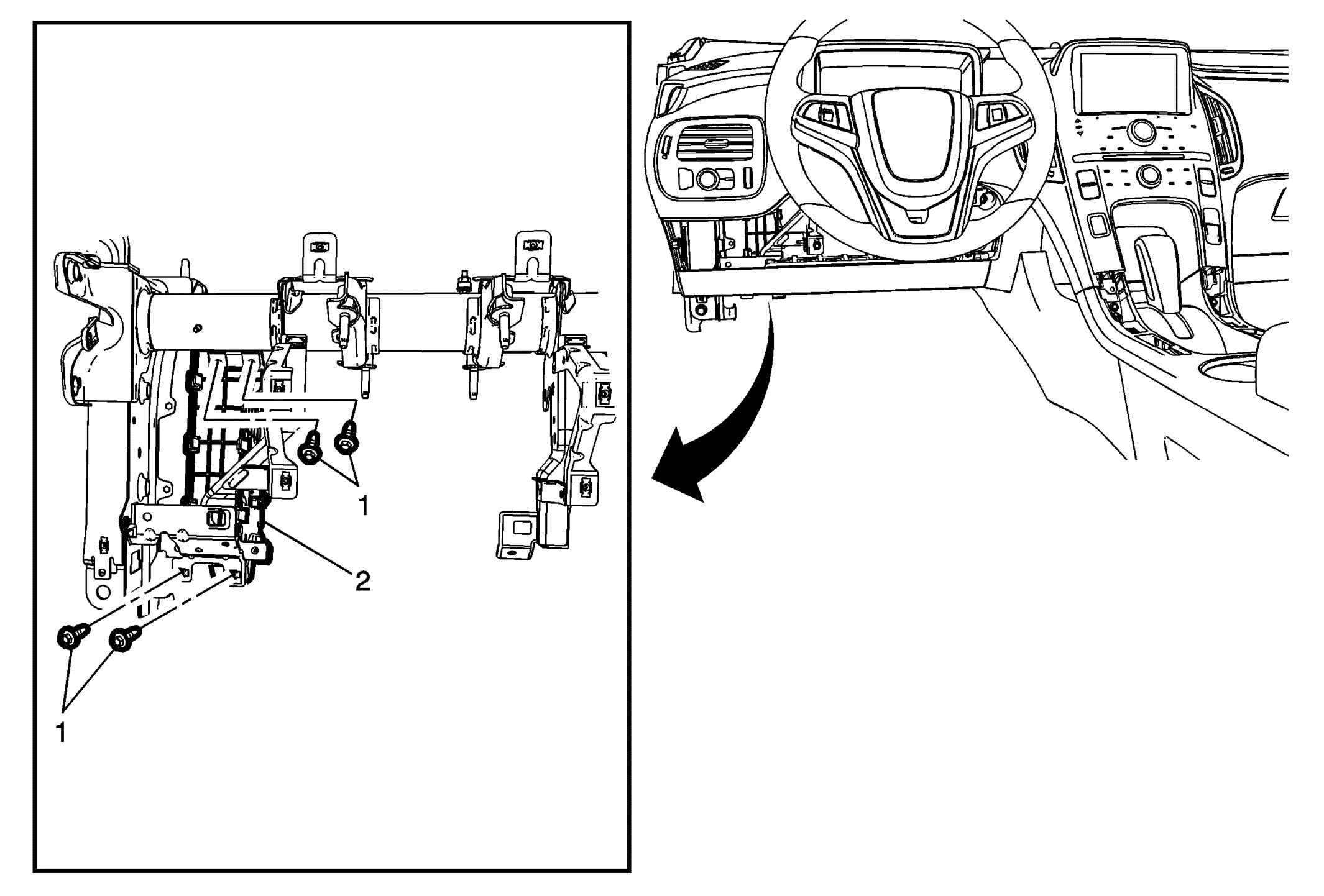

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement .
1	Communication Interface Module Bracket Bolts (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement .

Communication Interface Module Bracket Bolts (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Communication Interface Module Bracket

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
