Hybrid Control Electronic Component Views
WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

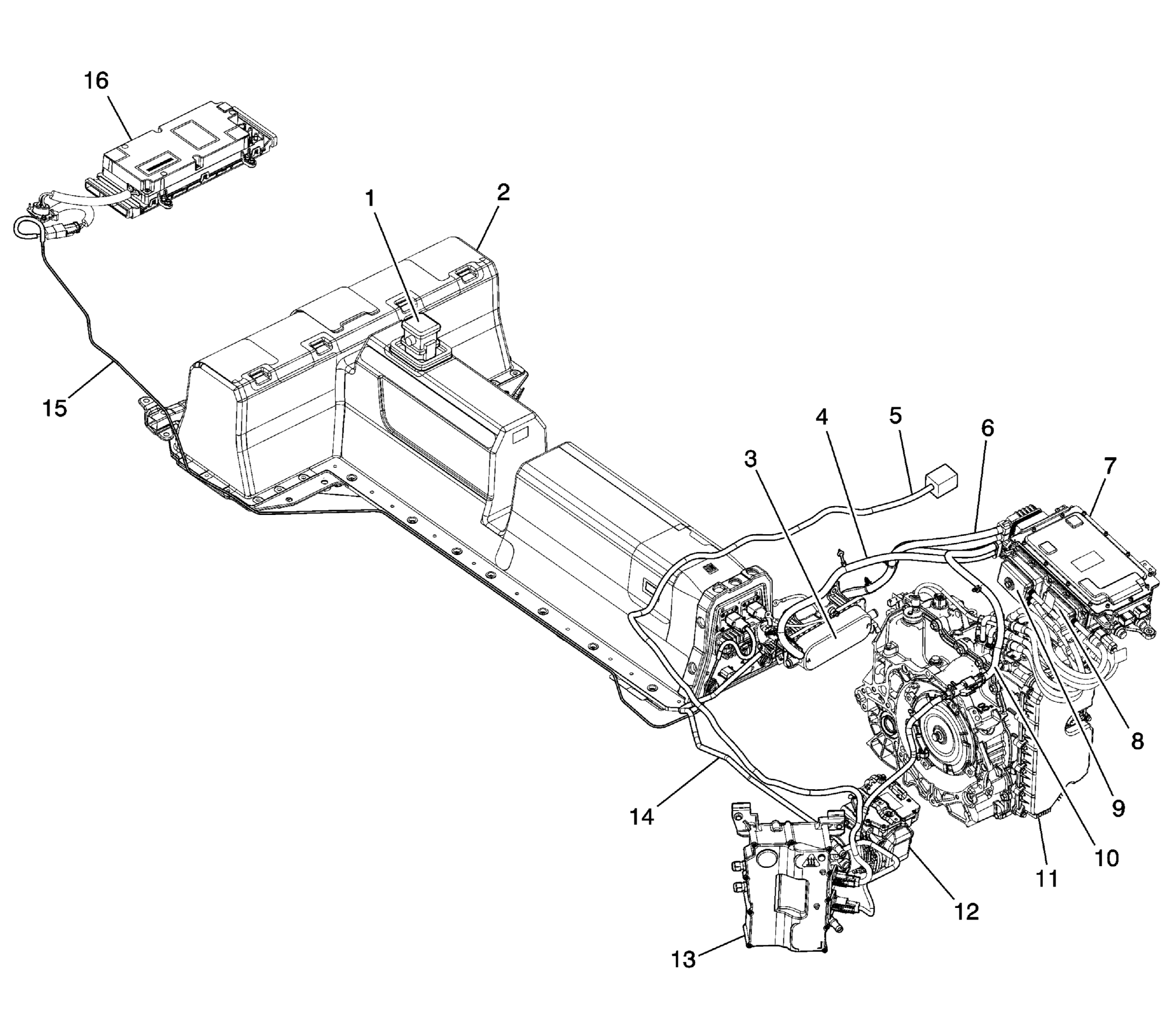

| Callout | Component Name |
|---|---|
| 1 | Drive Motor Battery High Voltage Manual Disconnect Lever |
| 2 | Drive Motor Battery Assembly |
| 3 | Heater Coolant Heater |
| 4 | Battery Positive and Negative (300 V) Cable Assembly - Inverter to Coolant Heater |
| 5 | Battery Positive and Negative (300 V) Cable Assembly - Charger to Charge Receptacle |
| 6 | Battery Positive and Negative (300 V) Cable Assembly - Inverter to Drive Motor Battery |
| 7 | Drive Motor Power Inverter Module Assembly |
| 8 | Drive Motor Power Inverter Module 3 Phase Cable Assembly - B |
| 9 | Drive Motor Power Inverter Module 3 Phase Cable Assembly - A |
| 10 | Battery Positive and Negative (300 V) Cable Assembly - Inverter to Cooling Compressor |
| 11 | Automatic Transmission |
| 12 | AC and Drive Motor Battery Cooling Compressor Assembly |
| 13 | Drive Motor Battery Charger Assembly |
| 14 | Battery Positive and Negative (300 V) Cable Assembly - Drive Motor Battery to Charger |
| 15 | Battery Positive and Negative (300 V) Cable Assembly - Drive Motor Battery to APM Module |
| 16 | Accessory DC Power Control Module Assembly |
