G106 And G113
G106 And G113
Component Name
Callout
G106
1
G113
2

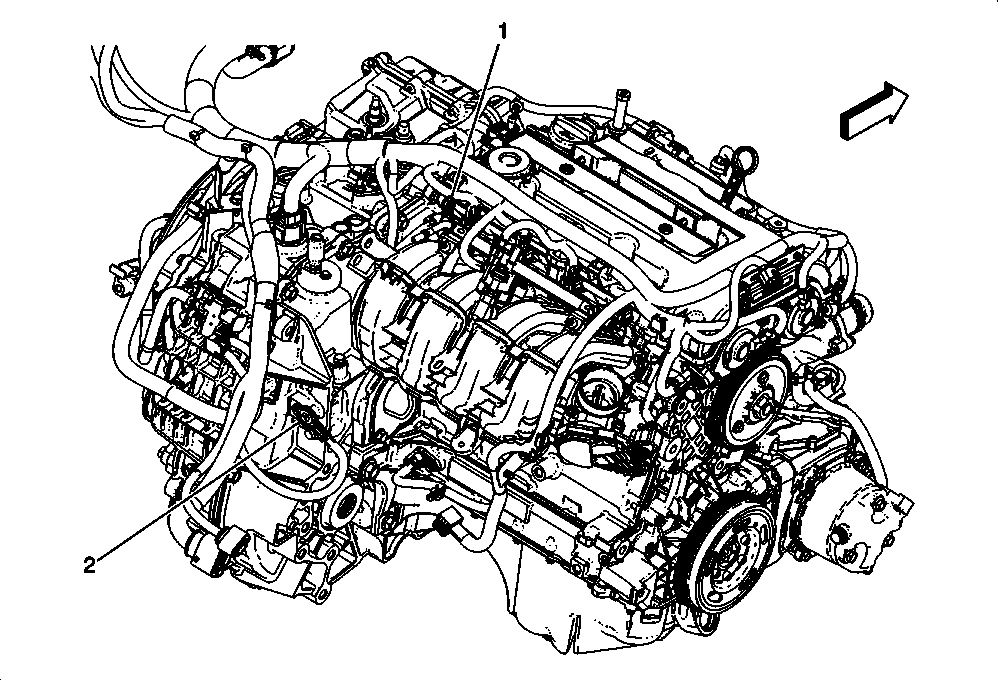

Fig 1: G106 And G113
Courtesy of GENERAL MOTORS CORP.
