Object Detection Wiring Schematics: UVC

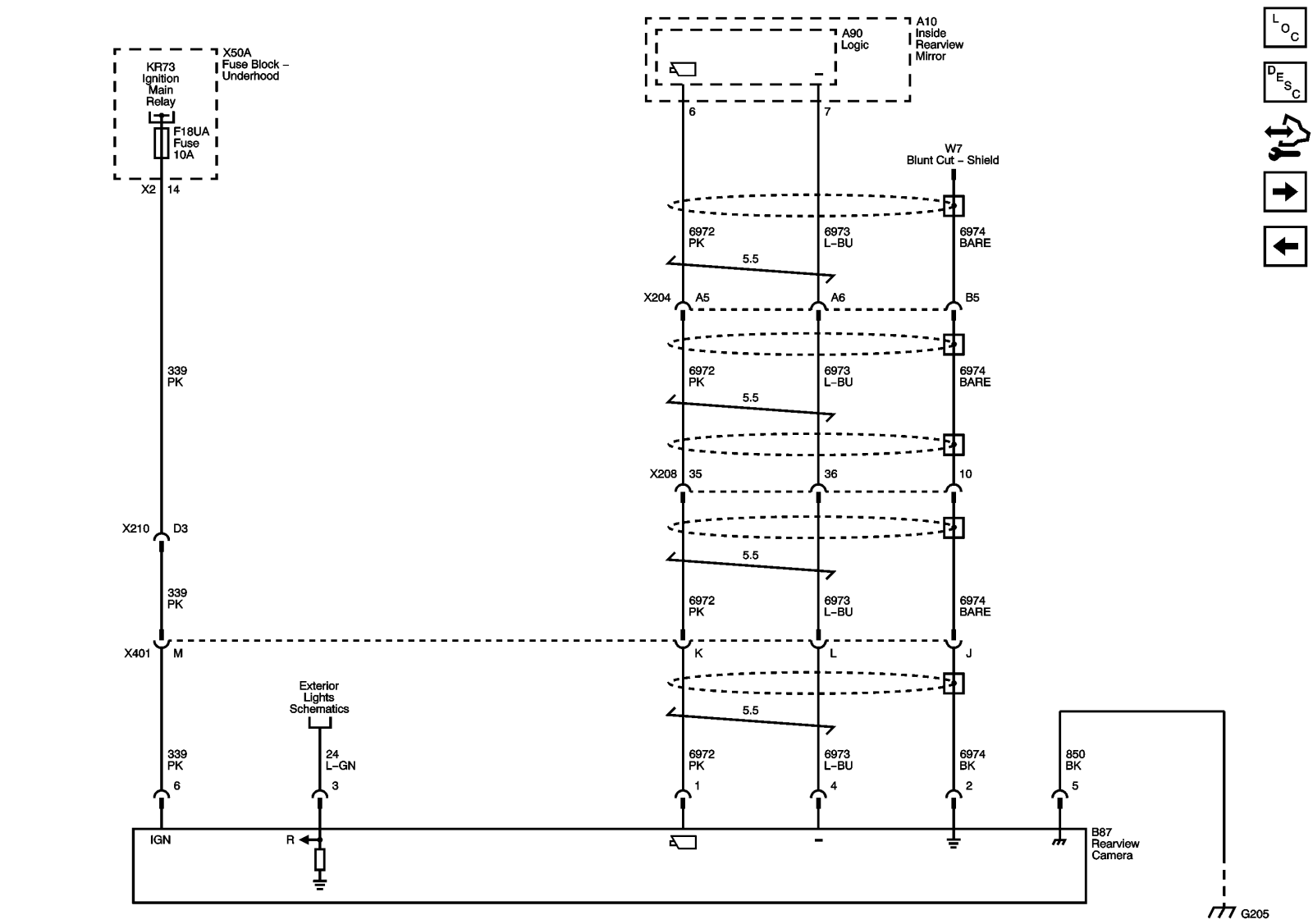

Fig 1: UVC Wiring Schematic
GM2714202Courtesy of GENERAL MOTORS COMPANY
