Communication Interface Module Bracket Replacement

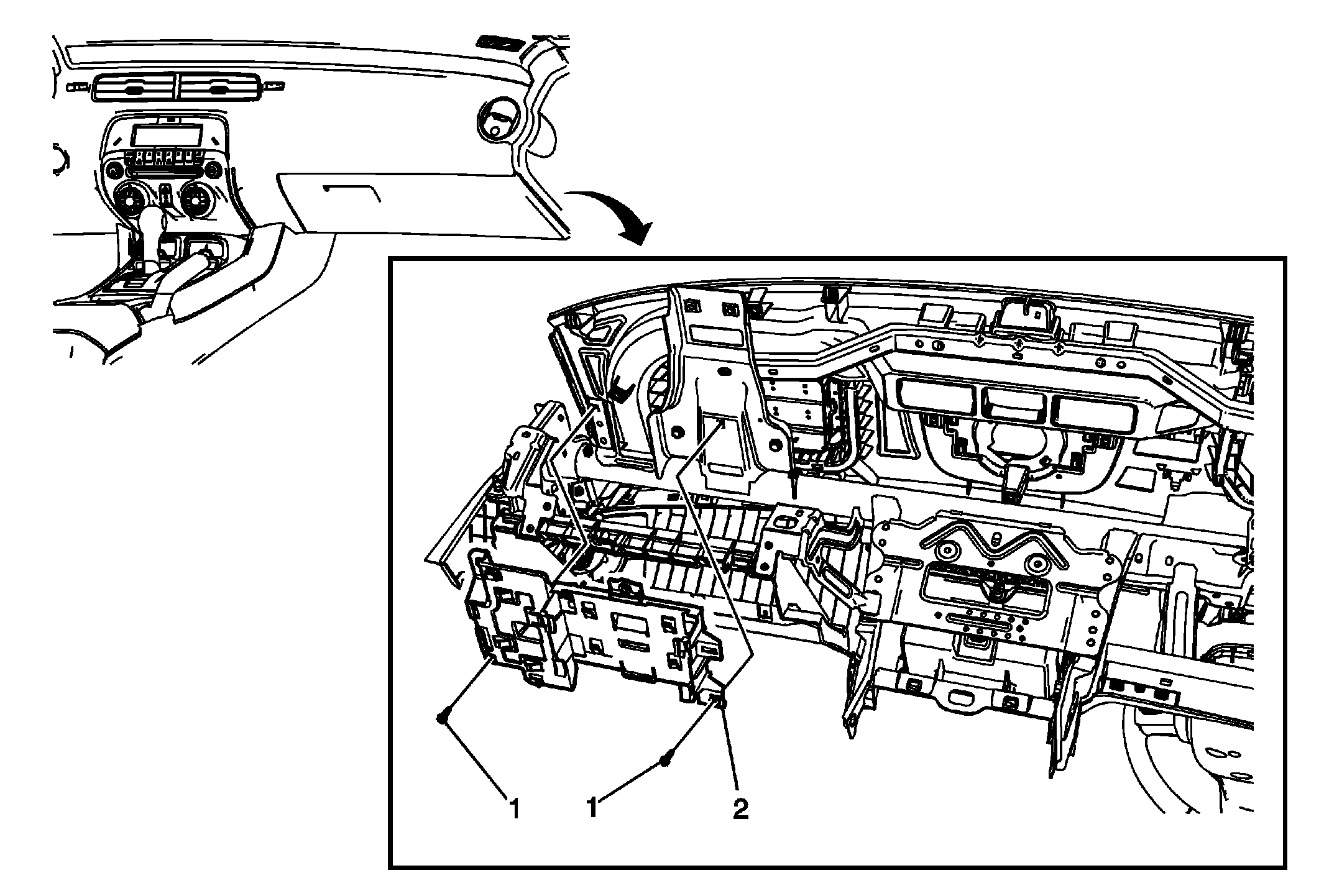

Fig 1: Communication Interface Module Bracket And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the communication interface module. Refer to Communication Interface Module Replacement Remove the communication interface battery. Refer to Communication Interface Module Battery Replacement
1	Communication Interface Module Bracket Bolt Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Communication Interface Module Bracket

Callout

Component Name

Preliminary Procedure

Remove the communication interface module. Refer to Communication Interface Module Replacement
Remove the communication interface battery. Refer to Communication Interface Module Battery Replacement

Communication Interface Module Bracket Bolt Screw (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Communication Interface Module Bracket
