Radio/HVAC Controls

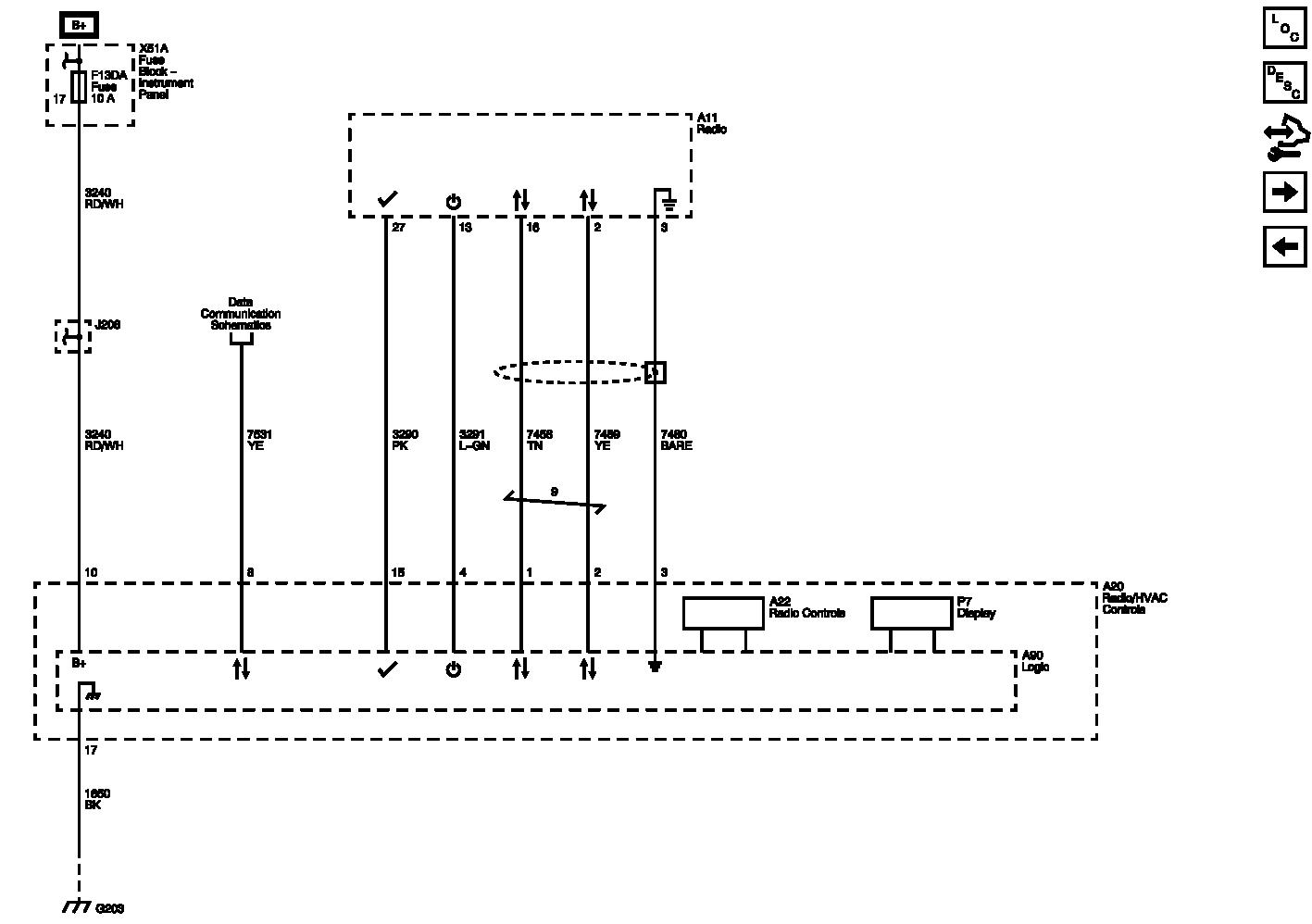

Fig 1: Radio/HVAC Controls Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
