Front Seat Heater Control Module Replacement

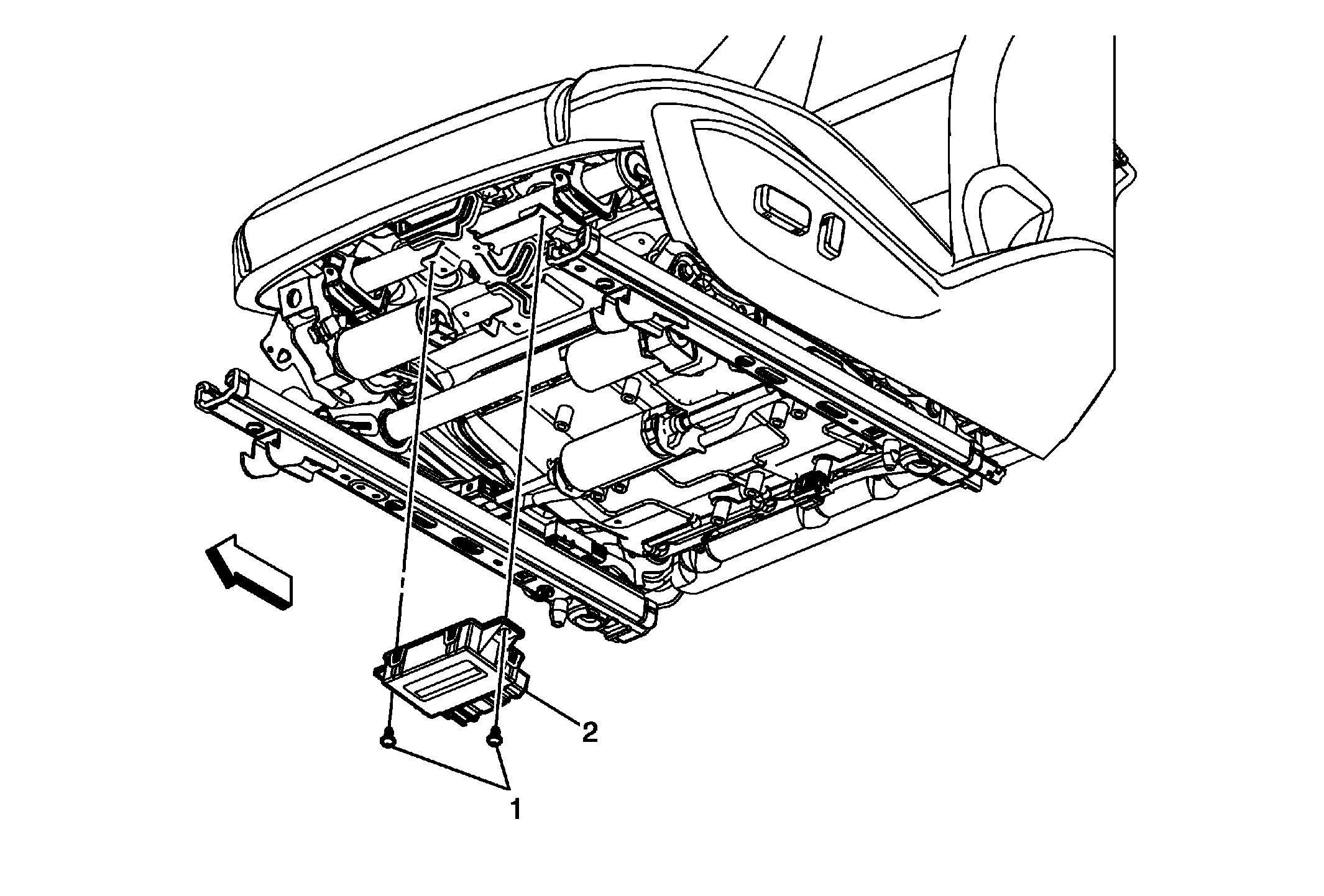

Fig 1: Front Seat Heater Control Module And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Heater Control Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector. Disconnect the module from the bracket if nessasary, then pull downward away from the bottom of the seat. Refer to Control Module References for replacement and setup information.

Callout

Component Name

Front Seat Heater Control Module Bolt (Qty: 2)

CAUTION:

Tighten
4 N.m (35 lb in)

Front Seat Heater Control Module

Procedure

Disconnect the electrical connector.
Disconnect the module from the bracket if nessasary, then pull downward away from the bottom of the seat.
Refer to Control Module References for replacement and setup information.
