Electronic Traction Control Switch Replacement

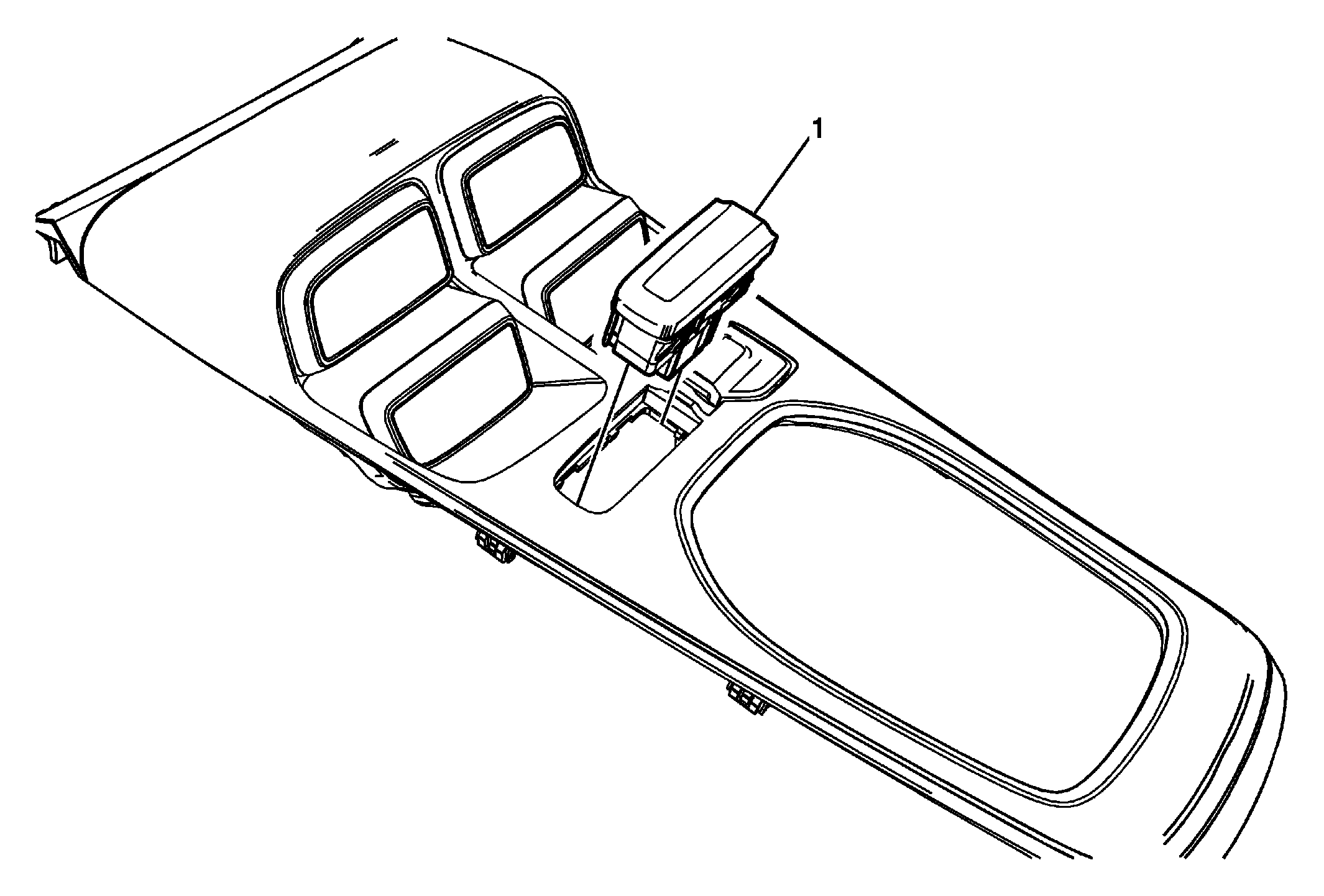

Fig 1: Electronic Traction Control Switch
GM2195604Courtesy of GENERAL MOTORS COMPANY
Electronic Traction Control Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the front floor console front cover. Refer to Front Floor Console Front Cover Replacement (With UMQ) , Front Floor Console Front Cover Replacement (Without UMQ) .
1 Traction Control Switch Assembly

Procedure

  1. Squeeze the tabs in order to release the switch from the trim plate.
  2. Disconnect electrical connector.
