Installation Procedure

    Fig 1: Wheel Speed Sensor & Bolt
    GM2196958Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor assembly to the suspension knuckle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

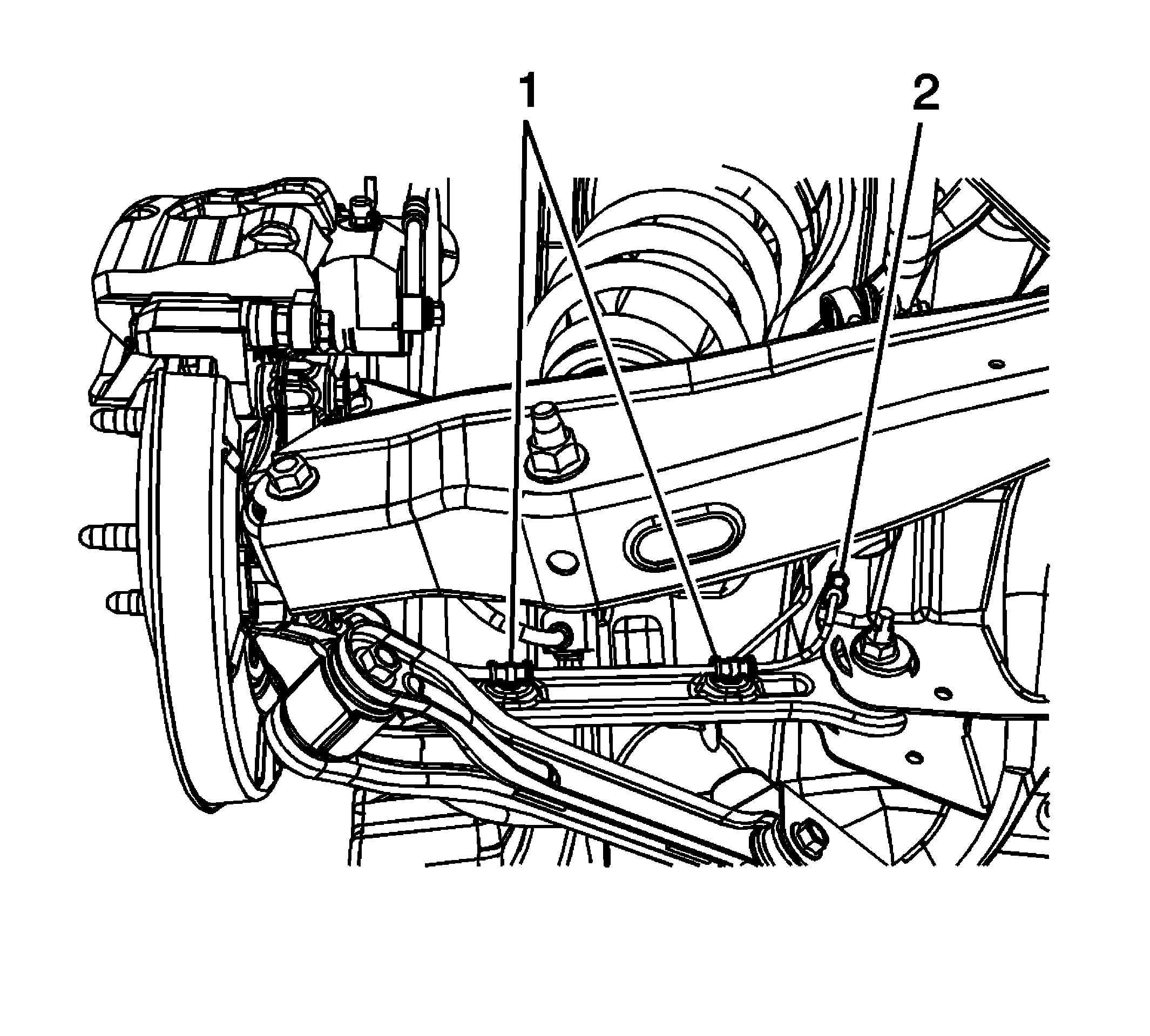

    3. Fig 2: Wheel Speed Sensor Wire Harness
    GM2196956Courtesy of GENERAL MOTORS COMPANY
  3. Release the wheel speed sensor wire harness retainers (1) from the rear suspension tie bar.
  4. Release the wheel speed sensor wire harness from the vehicle underbody (2).

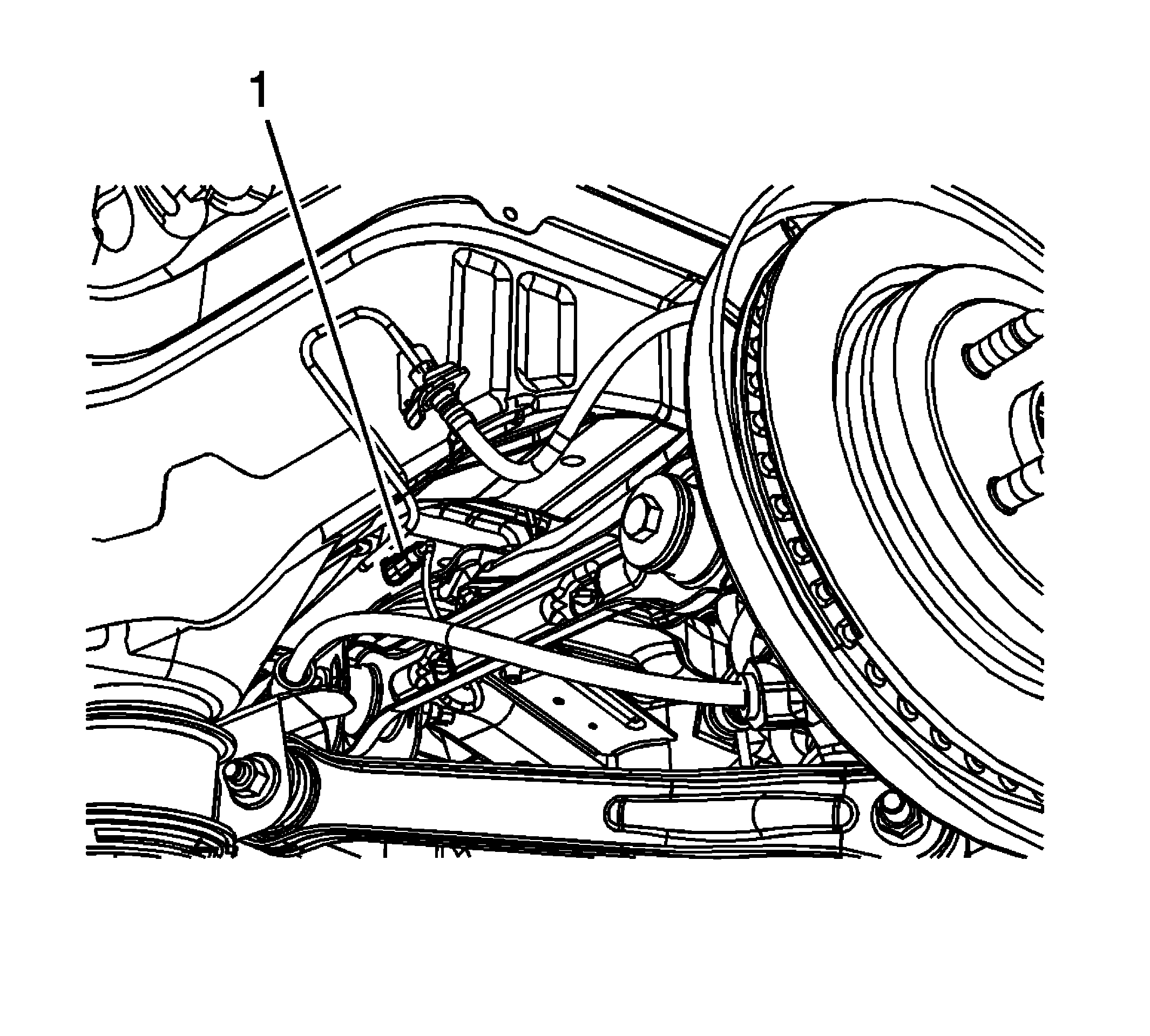

    5. Fig 3: Rear Wheel Sensor Electrical Connector
    GM2196953Courtesy of GENERAL MOTORS COMPANY
  5. Connect the rear wheel speed sensor electrical connector (1).
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
