Generator Bracket Replacement (LS3/L99)

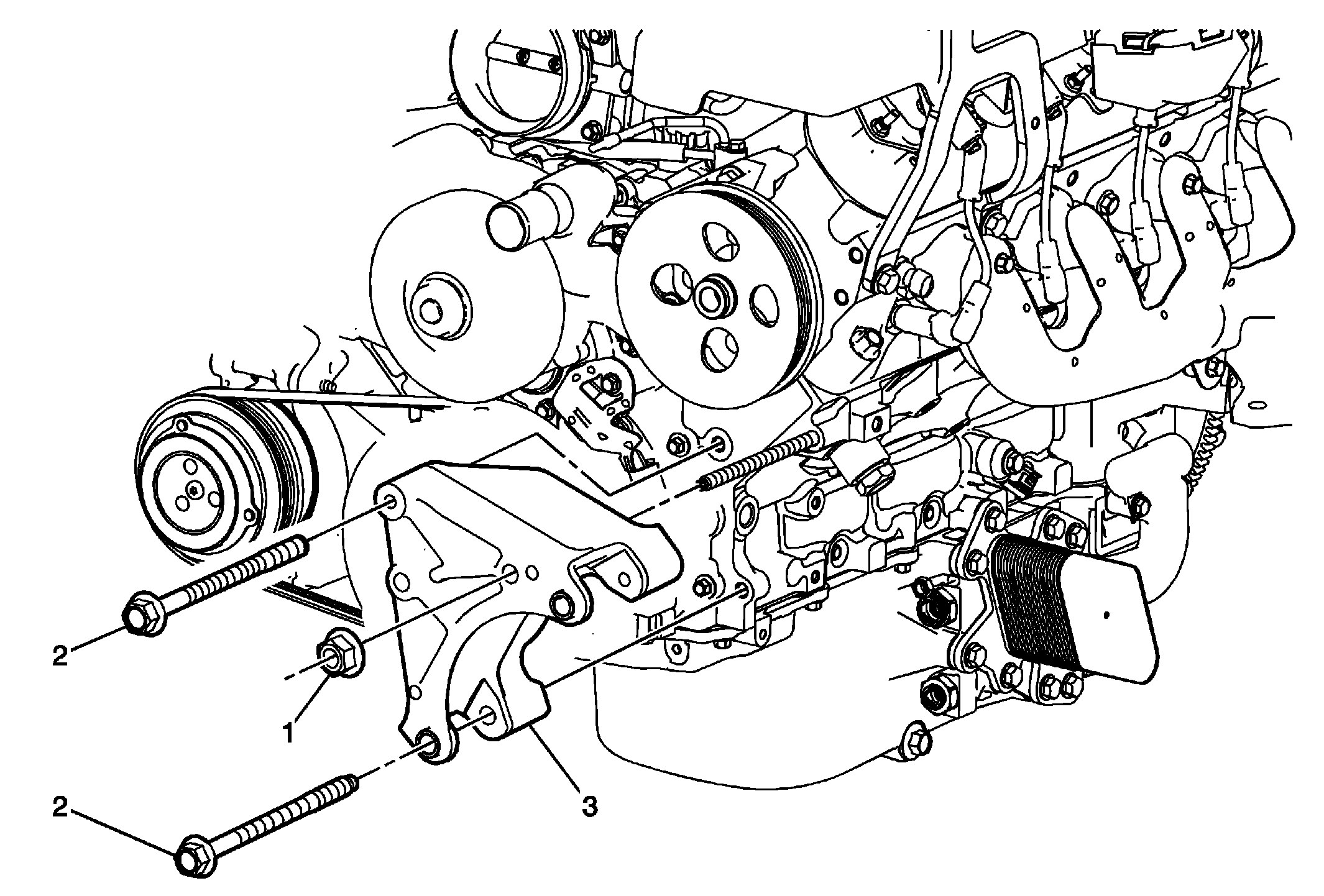

Fig 1: Generator Bracket, Nut And Bolts (LS3/L99)
GM2187456Courtesy of GENERAL MOTORS COMPANY
Generator Bracket Replacement (LS3/L99)

Callout Component Name

Preliminary Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the generator. Refer to Generator Replacement (LS3/L99) .
1 Nut
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
2 Bolt (Qty: 2)
Tighten
50 N.m (37 lb ft)
3 Generator

Procedure

  1. Disconnect the engine harness generator connector.
  2. Transfer the drive belt idler pulley, if necessary.
