Generator Bracket Replacement (LSA)

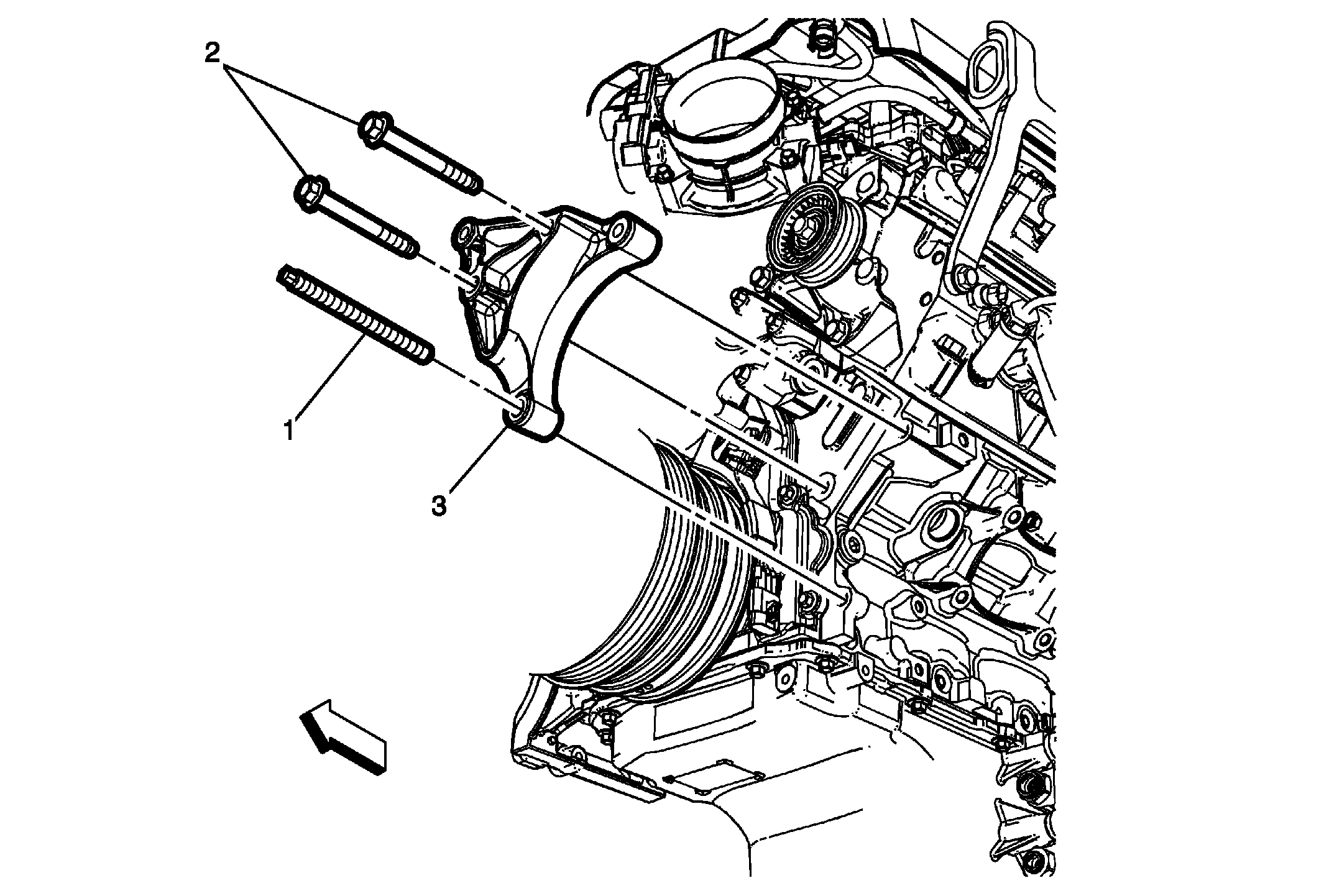

Fig 1: Generator, Stud & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the generator. Refer to Generator Replacement (LSA) .
1	Generator Stud CAUTION: Refer to Fastener Caution . Tighten 20Y (15 lb ft)
2	Generator Fastener (Qty: 2) Tighten 50 N.m (37 lb ft)
3	Generator Procedure Transfer the drive belt idler pulley, if necessary. Refer to Drive Belt Idler Pulley Replacement (LSA Upper) , Drive Belt Idler Pulley Replacement (LSA Lower) . Install the generator stud (1) with the generator installation.
