Generator Replacement (LFX)

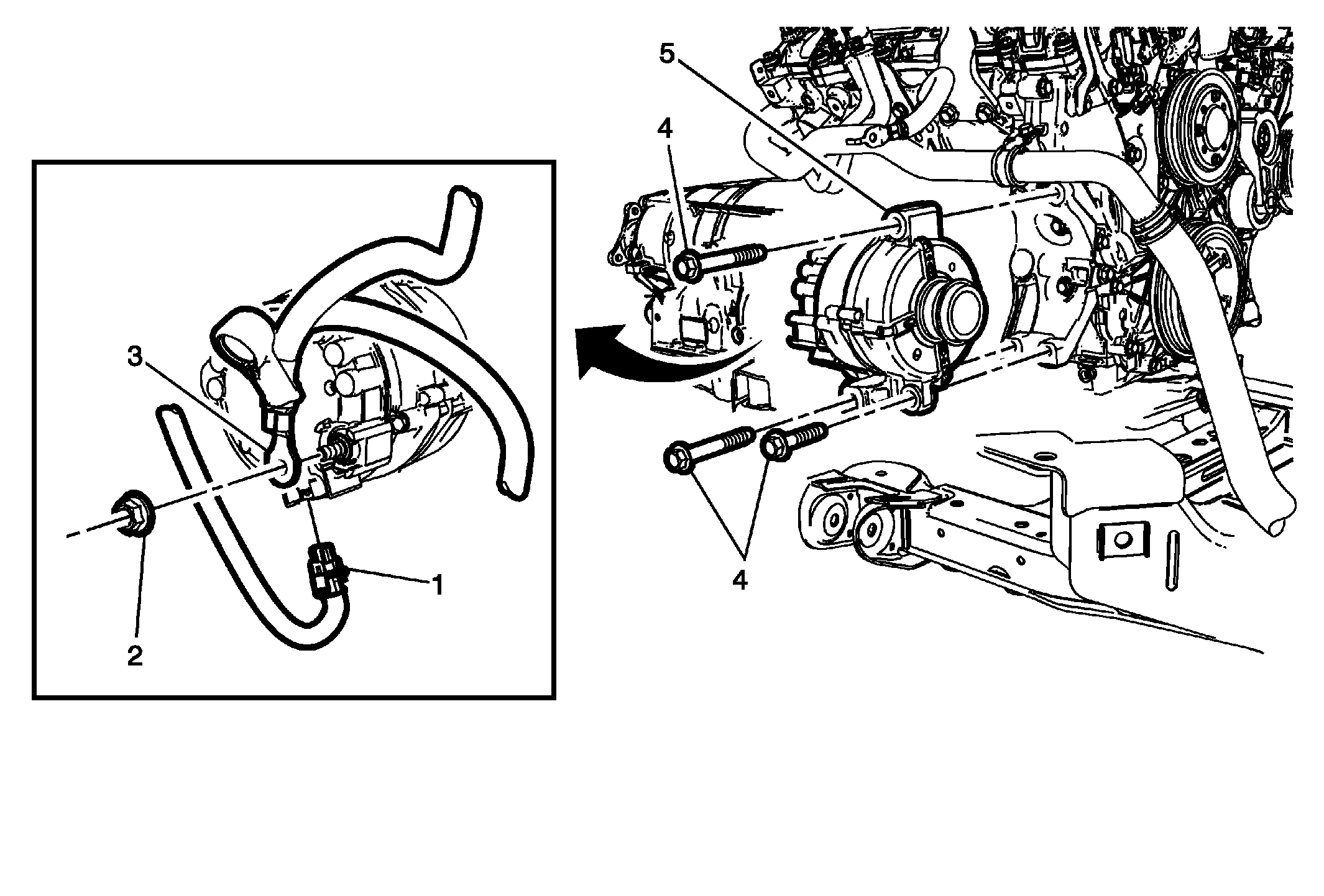

Fig 1: Generator, Engine Harness Connector, Battery Positive Cable & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the engine manifold cover. Refer to Intake Manifold Cover Replacement - Front . Remove the radiator outlet pipe. Refer to Radiator Outlet Pipe Replacement (LFX) . Remove the generator drive belt. Refer to Drive Belt Replacement .
1	Engine Harness Connector
2	Battery Positive Fastener CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
3	Battery Positive Cable
4	Generator Mounting Fastener (Qty: 3) Tighten 58 N.m (43 lb ft)
5	Generator
