Generator Replacement (LS3/L99)

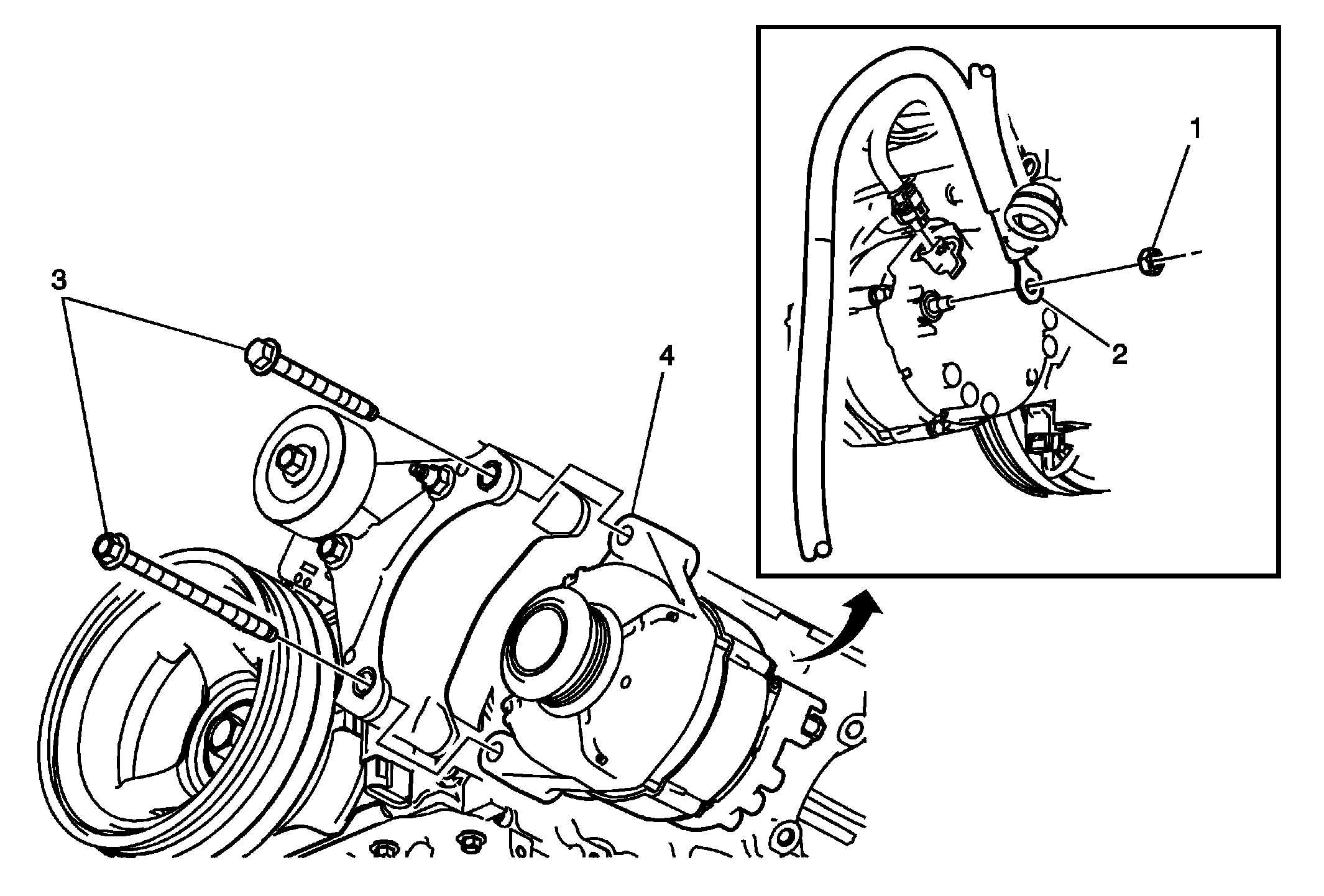

Fig 1: Generator, Positive Battery Cable, Nut And Bolts (LS3/L99)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (L99 or LS3) . Remove the generator drive belt. Refer to Drive Belt Replacement - Accessory (Except LSA) .
1	Nut CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
2	Generator battery positive cable
3	Bolt (Qty: 2) Tighten 58 N.m (43 lb ft)
4	Generator Procedure Disconnect the engine harness generator connector.
