Installation Procedure

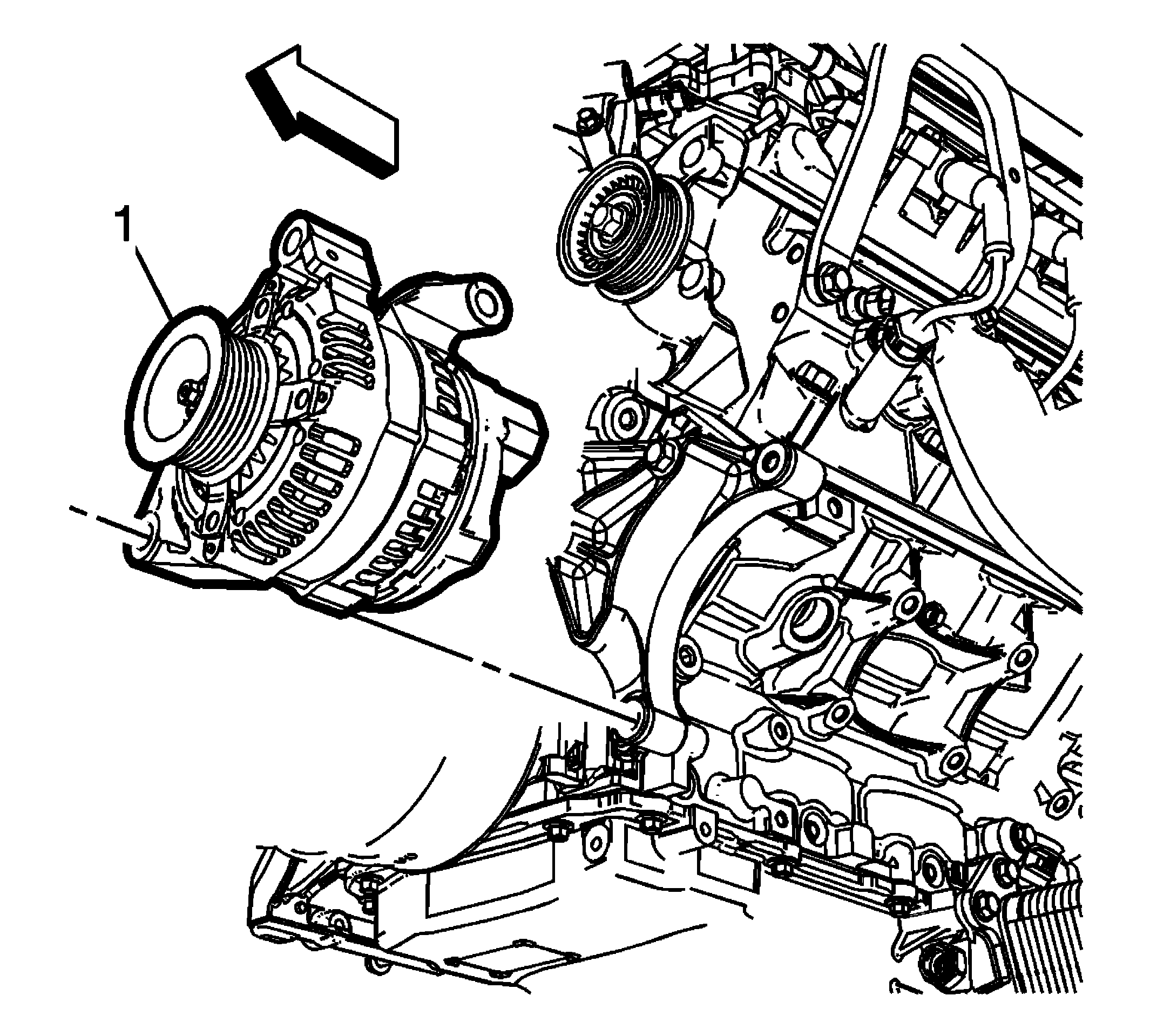

    Fig 1: Generator
    GM2727094Courtesy of GENERAL MOTORS COMPANY
  1. Position the generator (1) into the generator bracket.

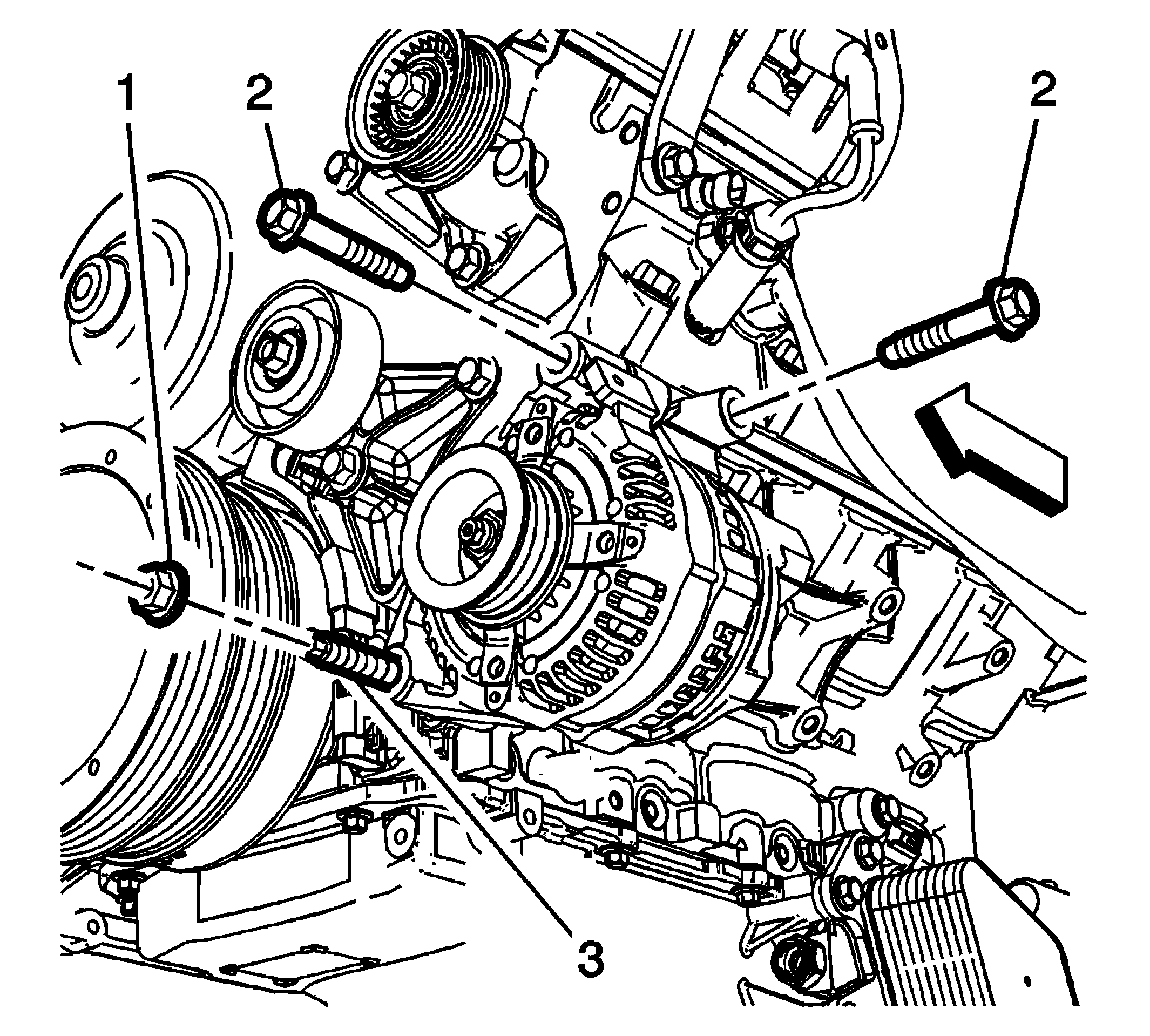

    2. Fig 2: Generator Mounting Components
    GM2727097Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the generator mounting fasteners (2) and tighten to 58 (43 lb ft).
  3. Install the generator mounting stud (3) and tighten to 20 (15 lb ft).
  4. Install the generator fastener (1) and tighten to 58 (43 lb ft).

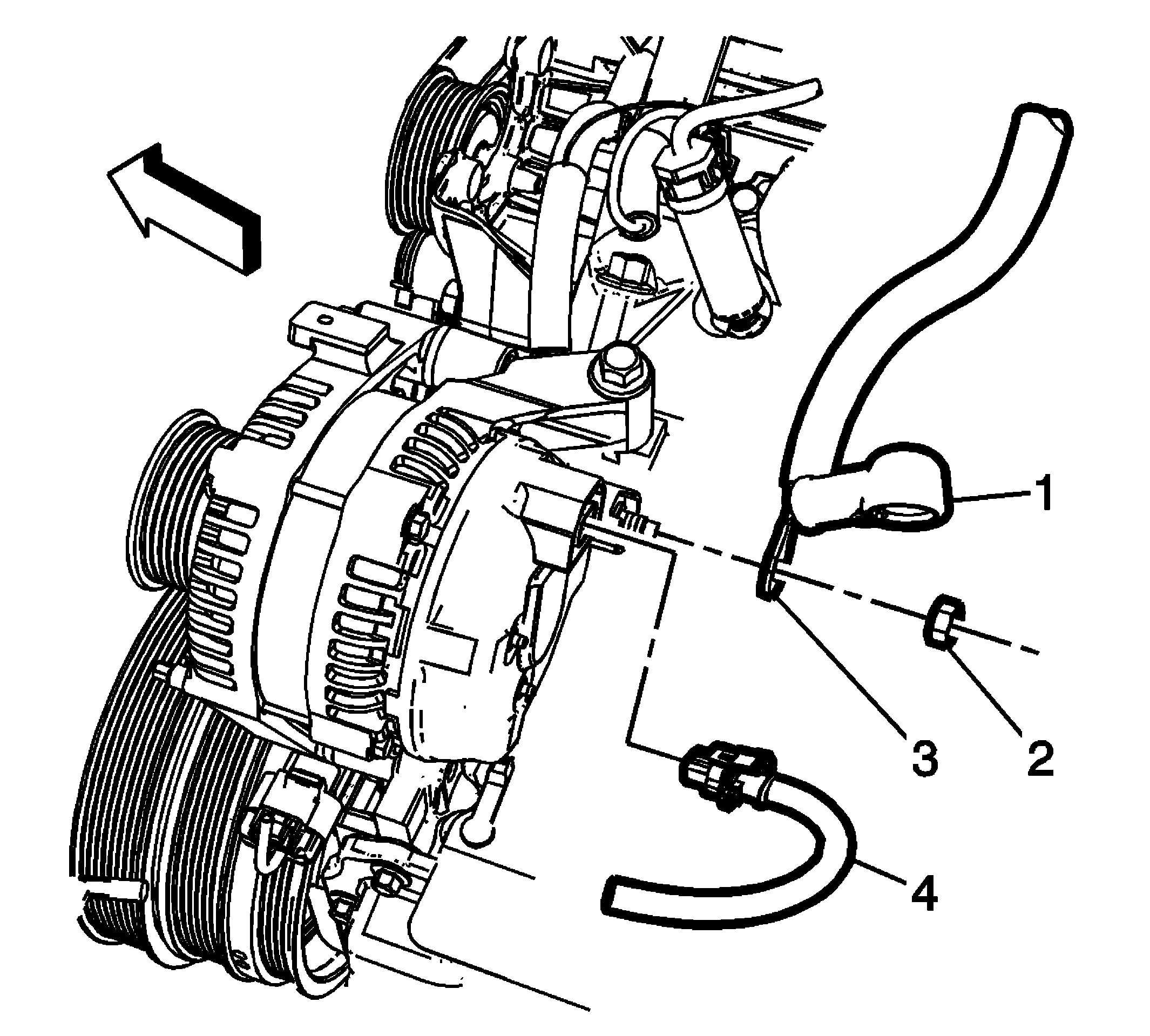

    5. Fig 3: Generator, Battery Positive Cable, Fastener & Protective Boot
    GM2727083Courtesy of GENERAL MOTORS COMPANY
  5. Connect the engine harness connector (4).
  6. Install the battery positive cable (3), to the back of the generator and tighten the fastener (2) to 15 (11 lb ft).
  7. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory (LSA) .
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
