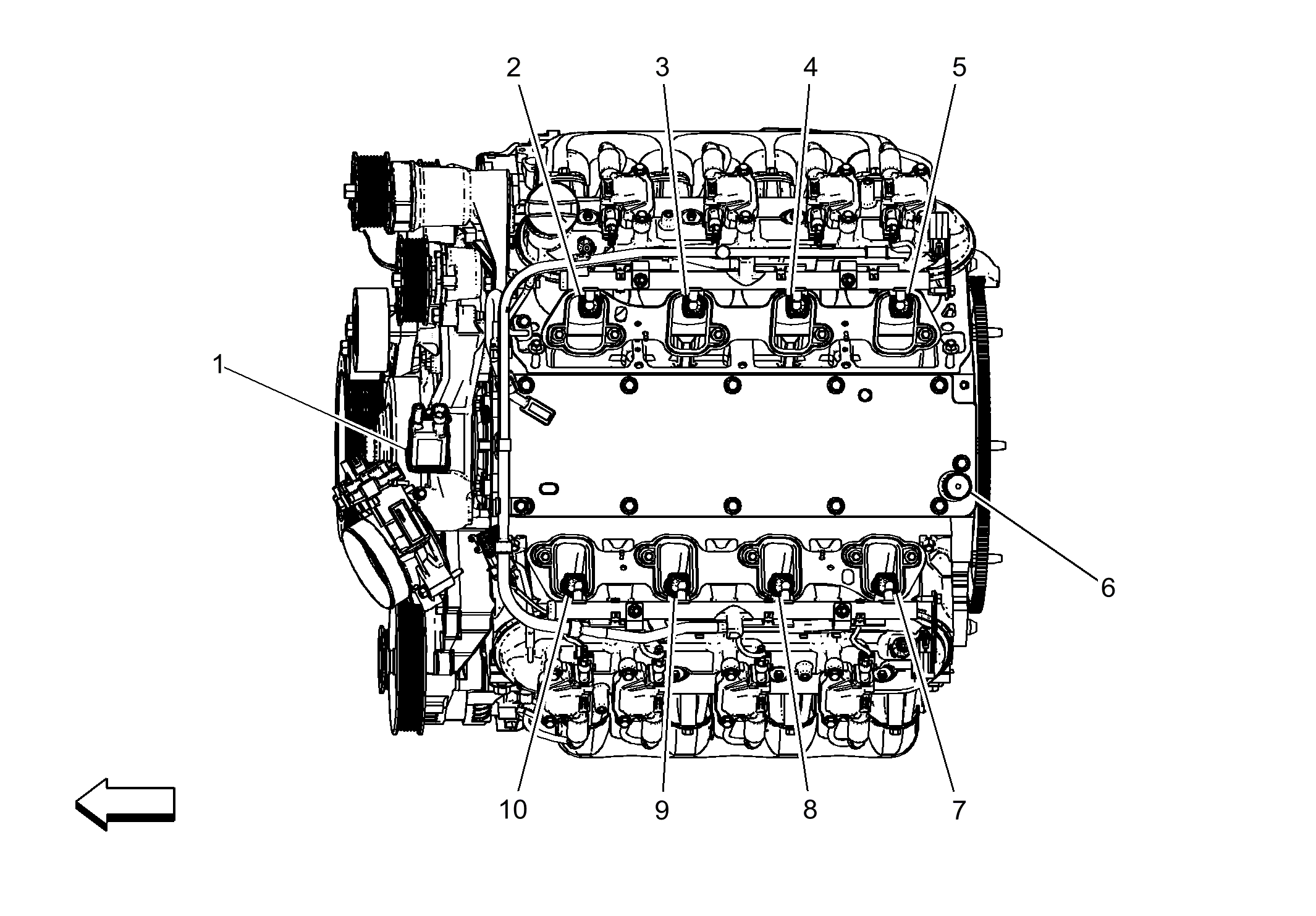

Engine Components - Top of Engine (LSA)
Engine Components - Top of Engine (LSA)
| Component Name | Callout |
|---|---|
| Q12 Evaporative Emissions Canister Purge Solenoid Valve | 1 |
| Q17B Fuel Injector 2 | 2 |
| Q17D Fuel Injector 4 | 3 |
| Q17F Fuel Injector 6 | 4 |
| Q17H Fuel Injector 8 | 5 |
| B37B Engine Oil Pressure Sensor | 6 |
| Q17G Fuel Injector 7 | 7 |
| Q17E Fuel Injector 5 | 8 |
| Q17C Fuel Injector 3 | 9 |
| Q17A Fuel Injector 1 | 10 |
