Front and Left Side of Engine Components (LLT)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

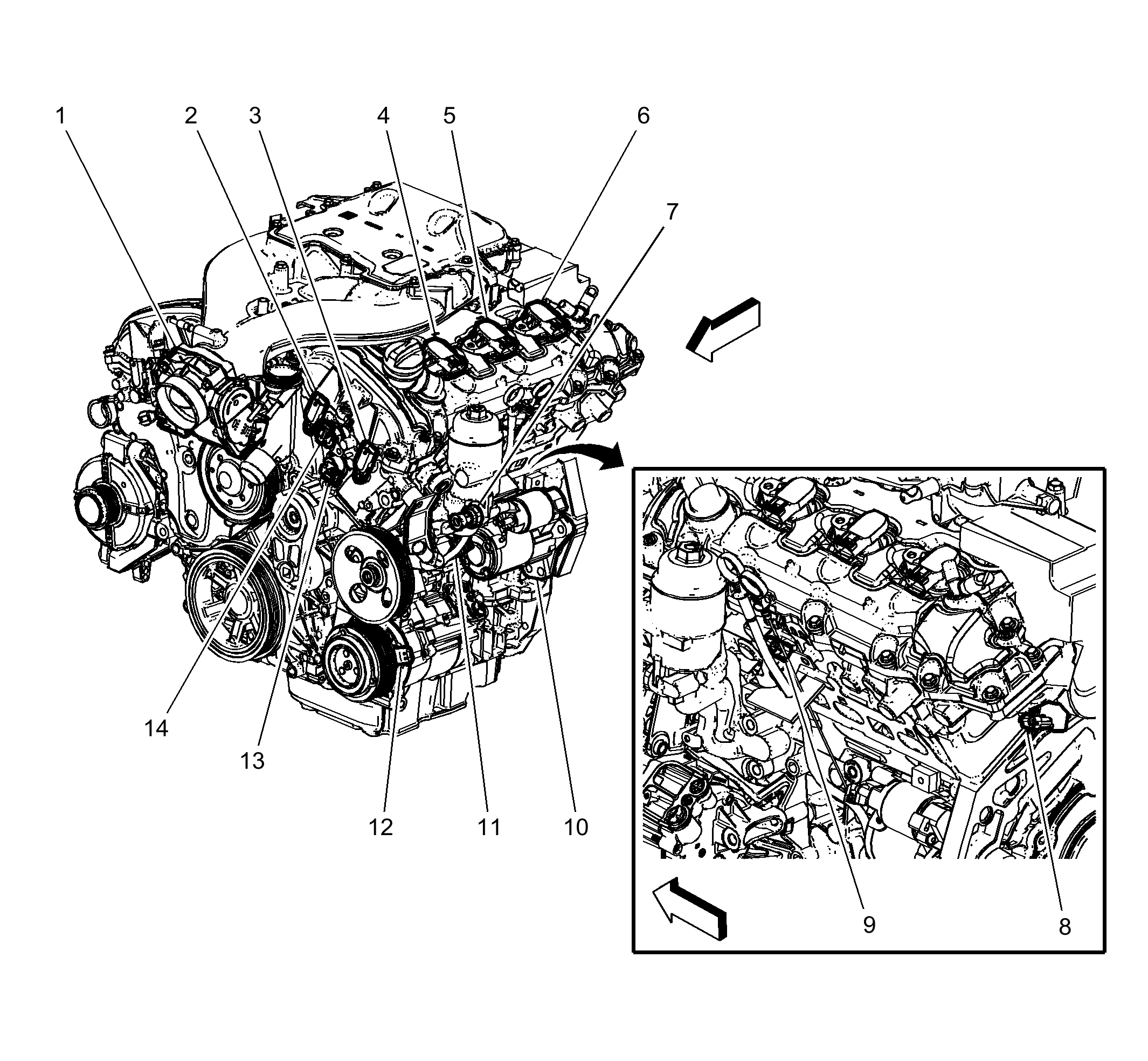

Front and Left Side of Engine Components (LLT)
| Component Name | Callout |
|---|---|
| Q38 Throttle Body | 1 |
| B23D Camshaft Position Sensor - Bank 2 Intake | 2 |
| B23C Camshaft Position Sensor - Bank 2 Exhaust | 3 |
| T8B Ignition Coil 2 | 4 |
| T8D Ignition Coil 4 | 5 |
| T8F Ignition Coil 6 | 6 |
| B37B Engine Oil Pressure Sensor | 7 |
| G18 High Pressure Fuel Pump | 8 |
| B34 Engine Coolant Temperature Sensor | 9 |
| M64 Starter Motor | 10 |
| B68B Knock Sensor 2 | 11 |
| Q2 A/C Compressor Clutch | 12 |
| Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust | 13 |
| Q6B Camshaft Position Actuator Solenoid Valve - Bank 2 Intake | 14 |
