Right Front of the Engine Components (LLT)
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

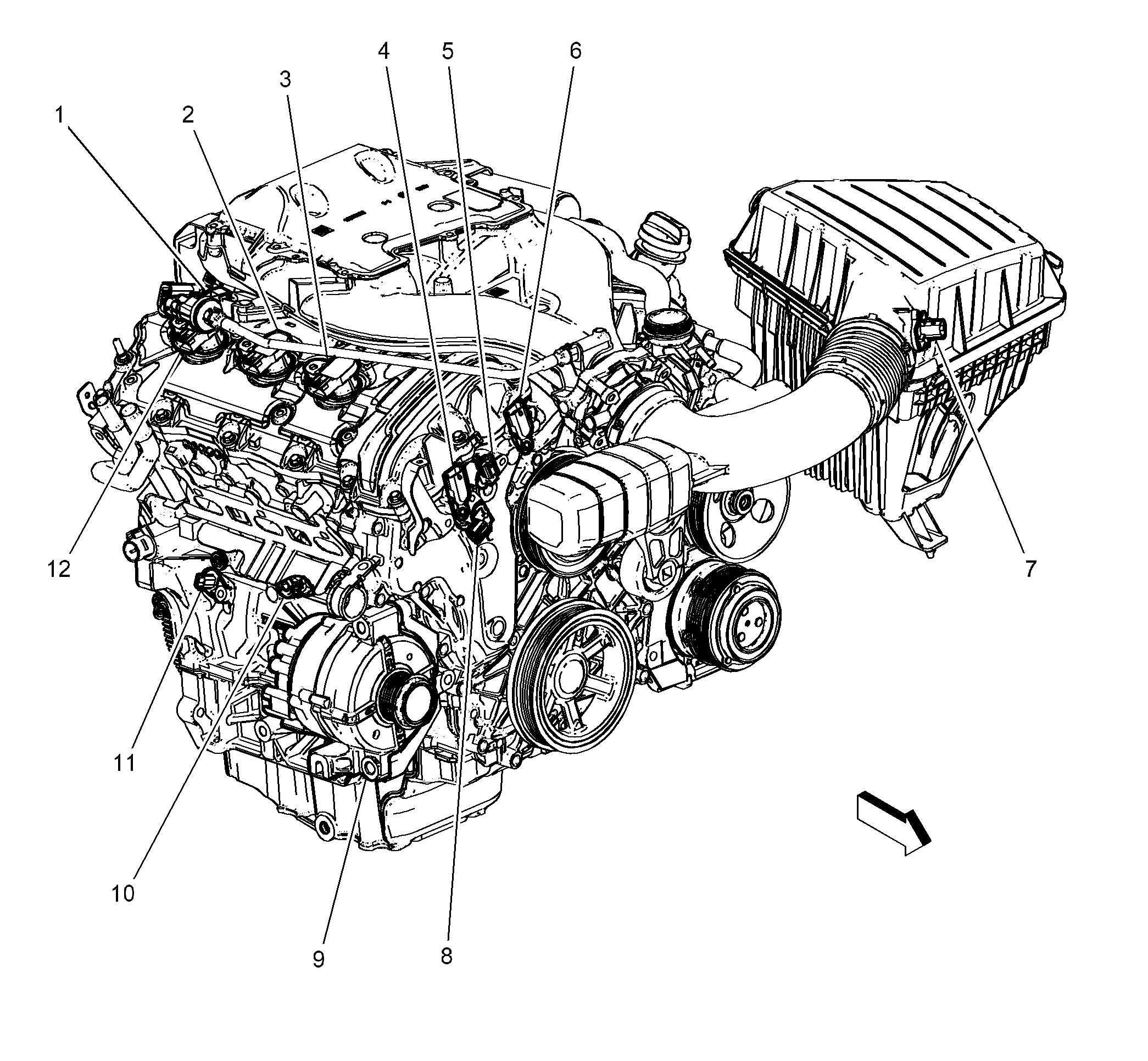

Right Front of the Engine Components (LLT)
| Component Name | Callout |
|---|---|
| Q12 Evaporative Emission (EVAP) Purge Solenoid Valve | 1 |
| T8C Ignition Coil 3 | 2 |
| T8A Ignition Coil 1 | 3 |
| B23A Camshaft Position Sensor - Bank 1 Exhaust | 4 |
| Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake | 5 |
| B23B Camshaft Position Sensor - Bank 1 Intake | 6 |
| B75B Mass Air Flow/Intake Air Temperature Sensor | 7 |
| Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust | 8 |
| G13 Generator | 9 |
| B68A Knock Sensor 1 | 10 |
| B26 Crankshaft Position Sensor | 11 |
| T8E Ignition Coil 5 | 12 |
