Under Rear of Vehicle Components
WARNING: This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

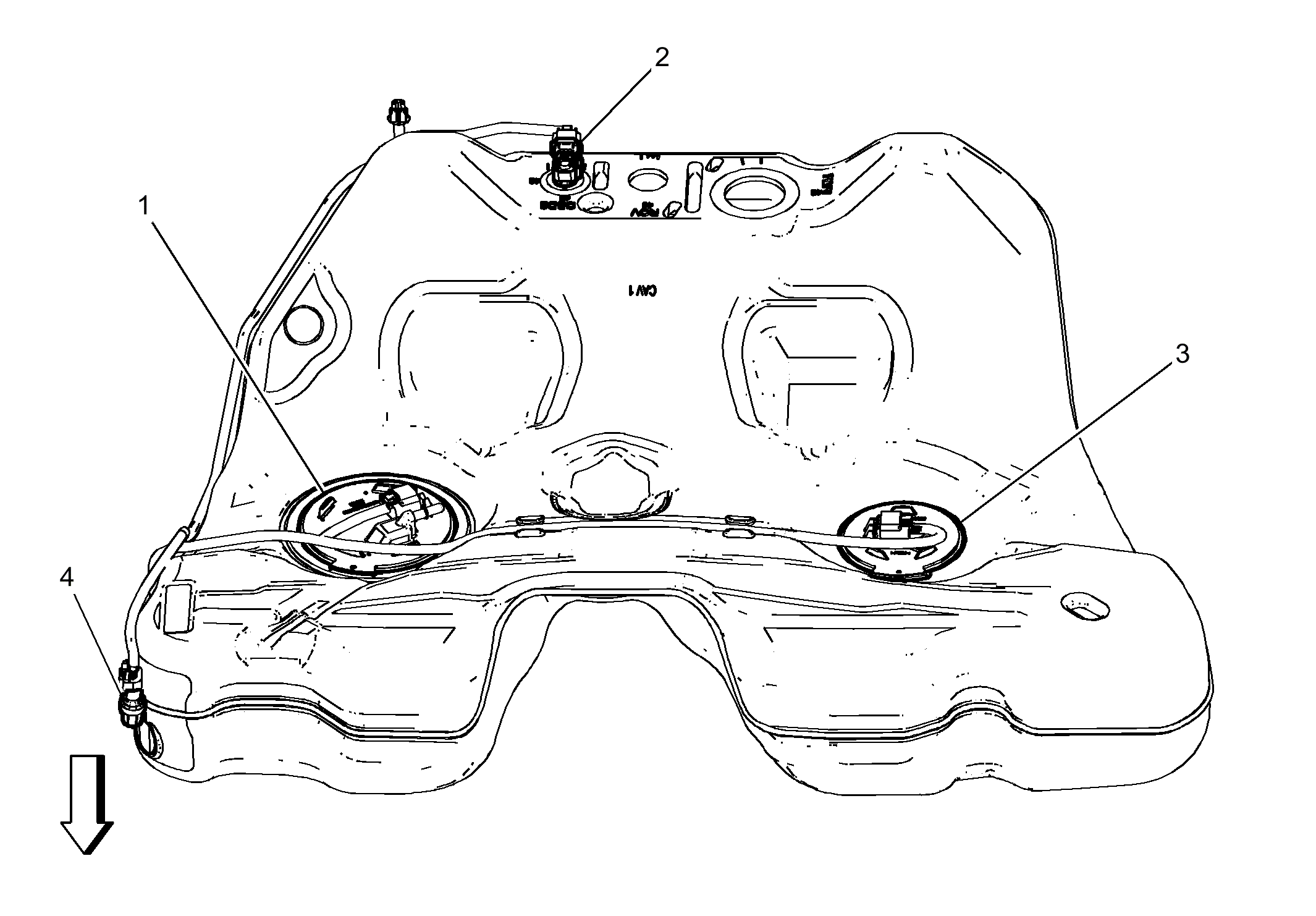

Under Rear of Vehicle Components
| Component Name |
Callout |
| A7 Fuel Pump and Level Sensor Assembly |
1 |
| B150 Fuel Tank Pressure Sensor |
2 |
| B46B Fuel Level Sensor - Secondary |
3 |
| B47 Fuel Pressure Sensor |
4 |
Courtesy of GENERAL MOTORS CORP.
