Front End Inflatable Restraint Discriminating Sensor Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

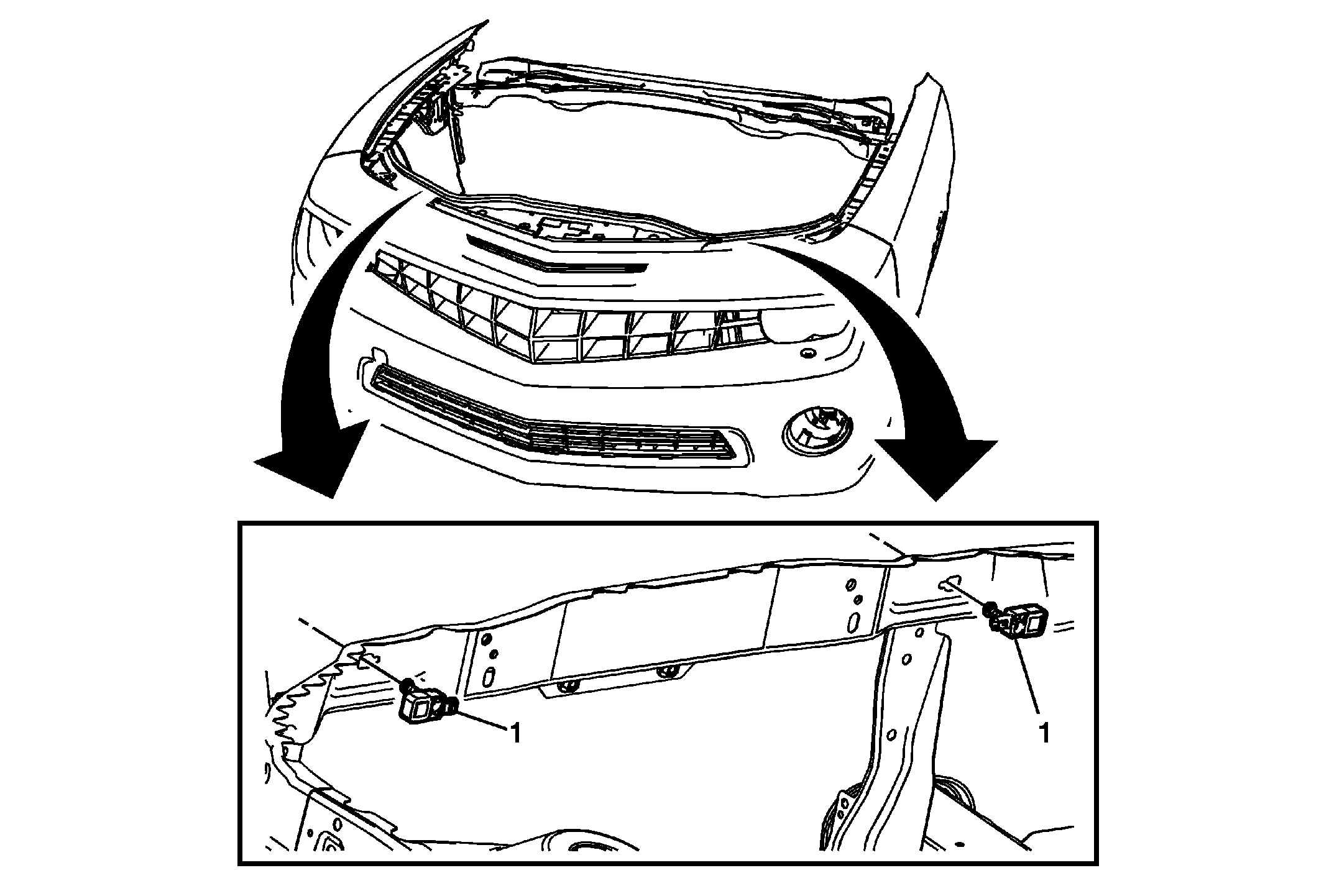

Fig 1: Front End Inflatable Restraint Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Front End Sensor Assembly CAUTION: Refer to Fastener Caution . Procedure Loosen the bolts and slide the sensor out of the keyhole slots. The bolts are integral to the sensor assembly and DO NOT remove separately. Tighten: 11 N.m (97 lb in)

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Front End Sensor Assembly

CAUTION: Refer to Fastener Caution .

Procedure

Loosen the bolts and slide the sensor out of the keyhole slots.
The bolts are integral to the sensor assembly and DO NOT remove separately.

Tighten: 11 N.m (97 lb in)
