Inflatable Restraint Instrument Panel Module Indicator Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

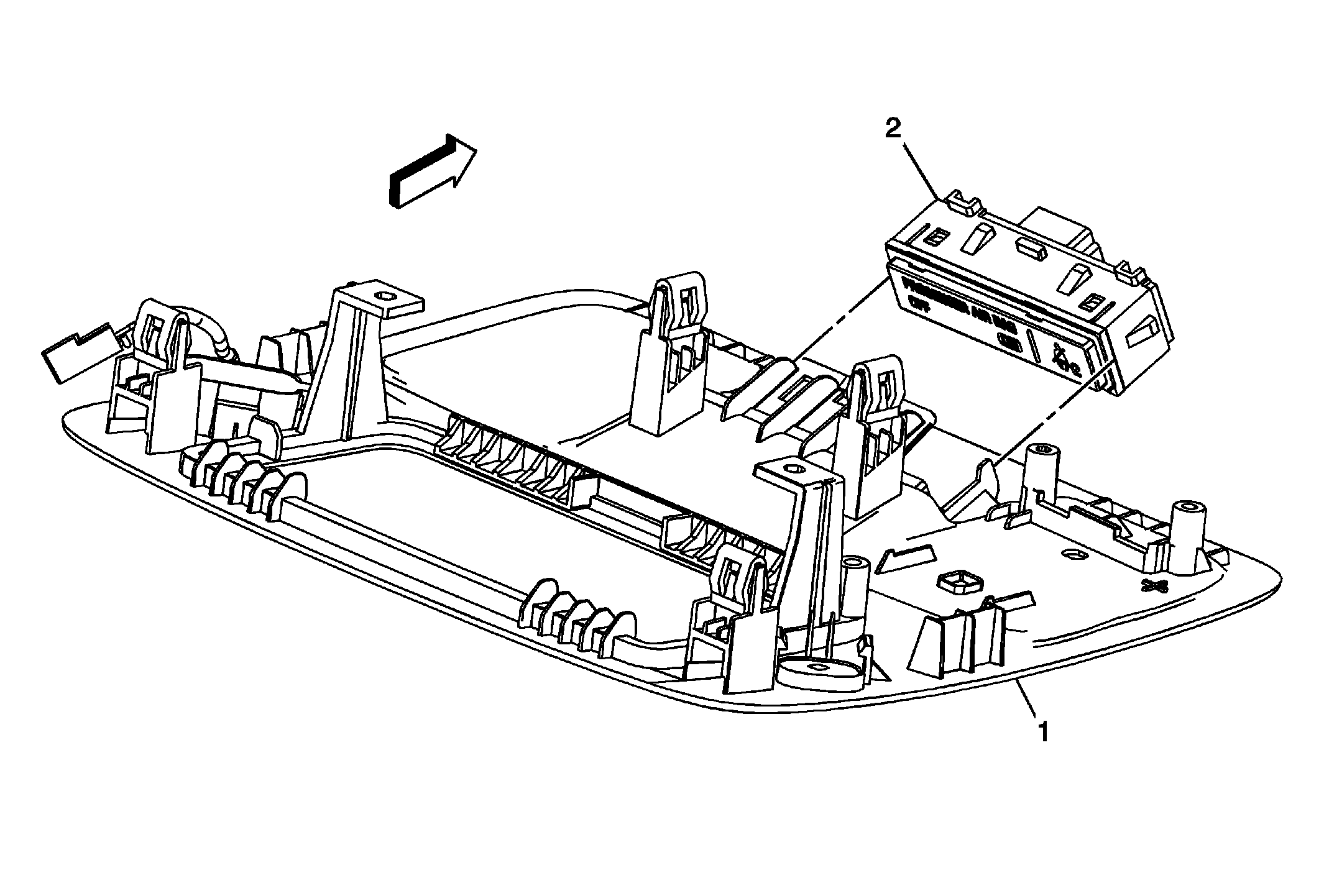

Fig 1: Inflatable Restraint Instrument Panel Module Indicator
GM2211387Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Console Assembly
Procedure:
Remove the roof console. Refer to Roof Console Replacement .
2 Inflatable Restraint Instrument Panel Module Indicator Assembly
Procedure:
Unsnap the indicator from the roof console bezel.
