SIR Identification Views
WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

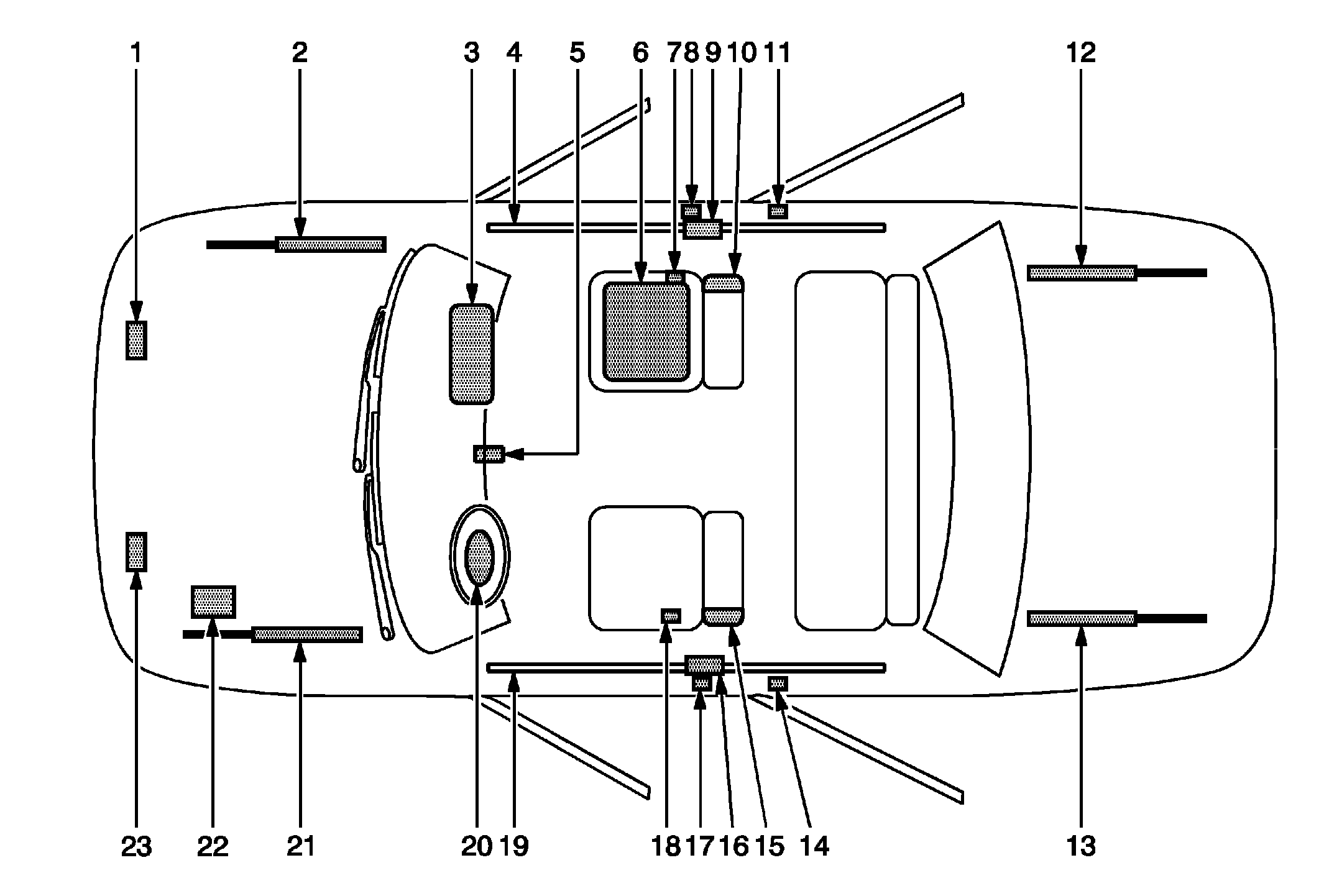

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Left Front Impact Sensor-Located under the hood at the front left side of the vehicle |
| 2 | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| 3 | Passenger Instrument Panel Air Bag-Located at the top right under the instrument panel |
| 4 | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located underneath the center stack |
| 6 | Passenger Presence System (PPS)-Located on the passenger front seat underneath the seat bottom trim |
| 7 | Passenger Seat Belt Anchor Pretensioner-Located on the outboard side of the passengers seat |
| 8 | Right Front Side Impact Sensor-Located at the B-pillar underneath the door sill |
| 9 | Inflator Module for Right Roof Rail Air Bag-Located behind headliner at the upper B-pillar |
| 10 | Passenger Seat Side Air Bag-Located on the seat back of passenger seat |
| 11 | Passenger Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the passenger side of vehicle |
| 12 | Rear Hood Assist Rod-A gas shock located under the rear truck lid on the passenger side |
| 13 | Rear Hood Assist Rod-A gas shock located under the rear truck lid on the driver side |
| 14 | Driver Seat Belt Retractor Pretensioner-Located under the trim near the bottom of the center pillar on the driver side of vehicle |
| 15 | Driver Seat Side Air Bag-Located on the seat back of driver seat |
| 16 | Inflator Module for Left Roof Rail Air Bag-Located behind headliner at the upper B-pillar |
| 17 | Left Front Side Impact Sensor-Located at the B-pillar underneath the door sill |
| 18 | Driver Seat Belt Anchor Pretensioner-Located on the outboard side of the drivers seat |
| 19 | Left Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| 20 | Driver Steering Wheel Air Bag-Located on the steering wheel |
| 21 | Front Hood Assist Rod-A gas shock located under the front hood on the driver side |
| 22 | Vehicle Battery-Located under the hood on the left side |
| 23 | Right Front Impact Sensor-Located under the hood at front right side of the vehicle |
