Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

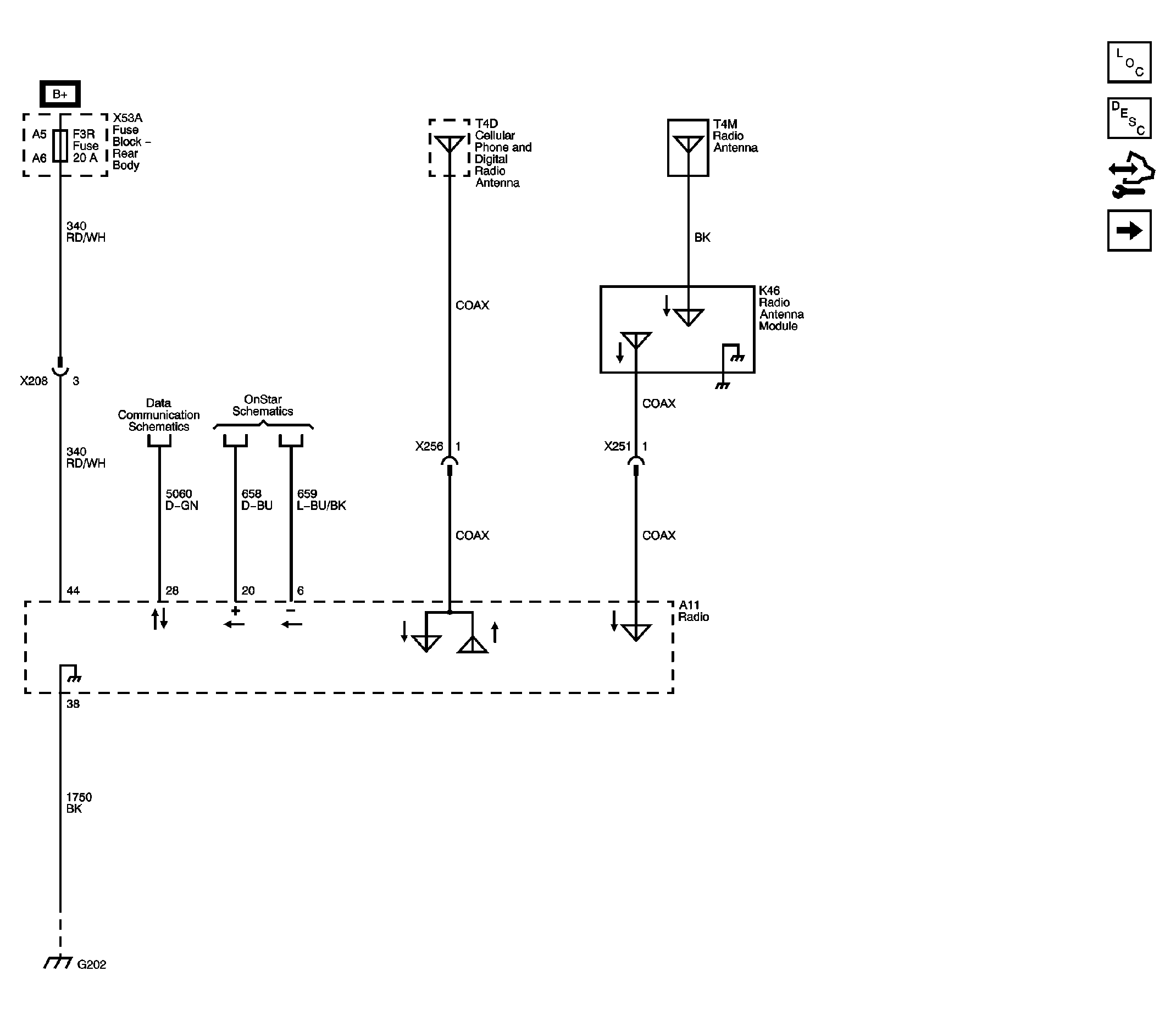

Fig 1: Power, Ground, References and Antennas

Courtesy of GENERAL MOTORS CORP.

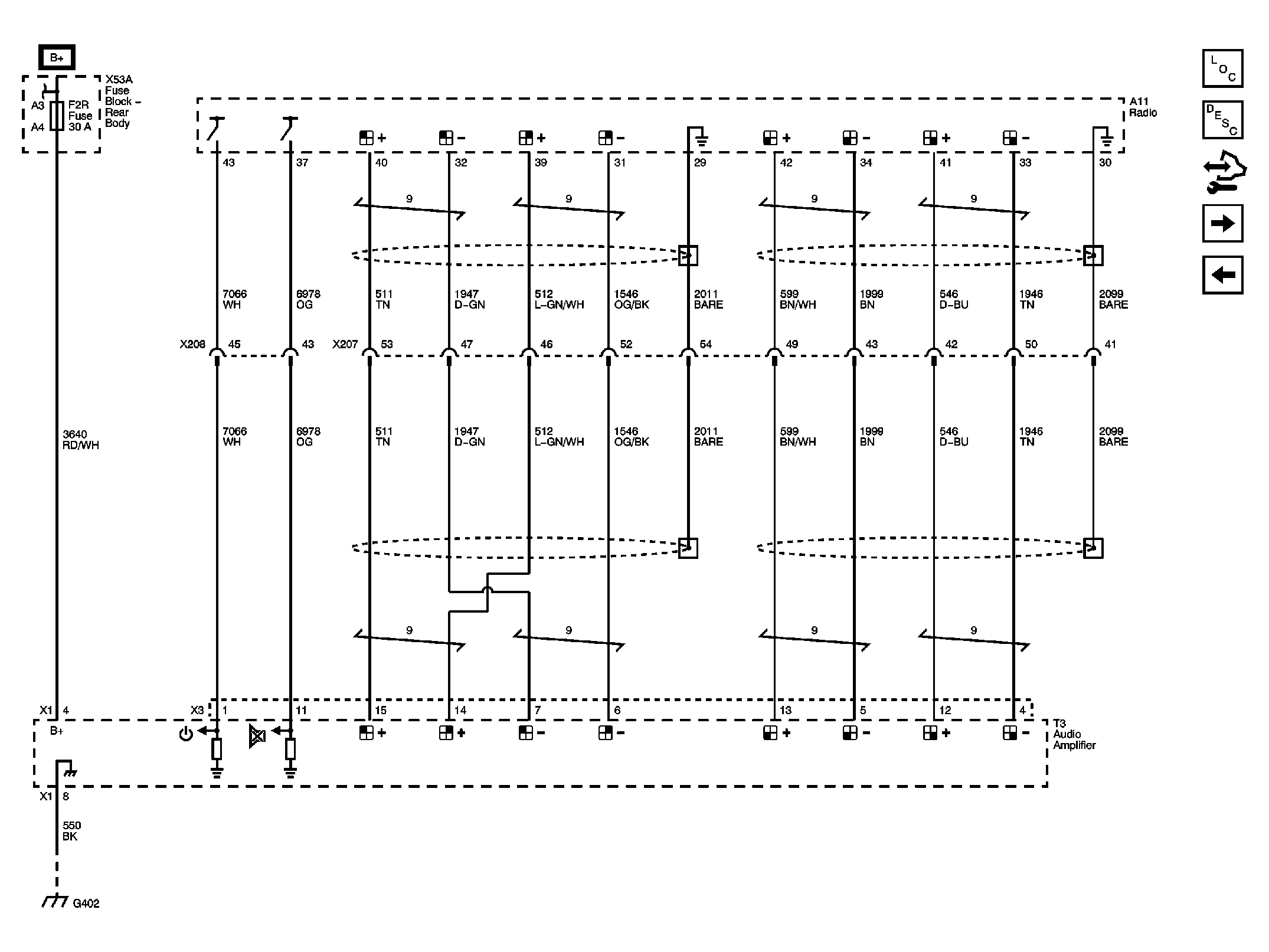

Fig 2: Amplifier - UQA

Courtesy of GENERAL MOTORS CORP.

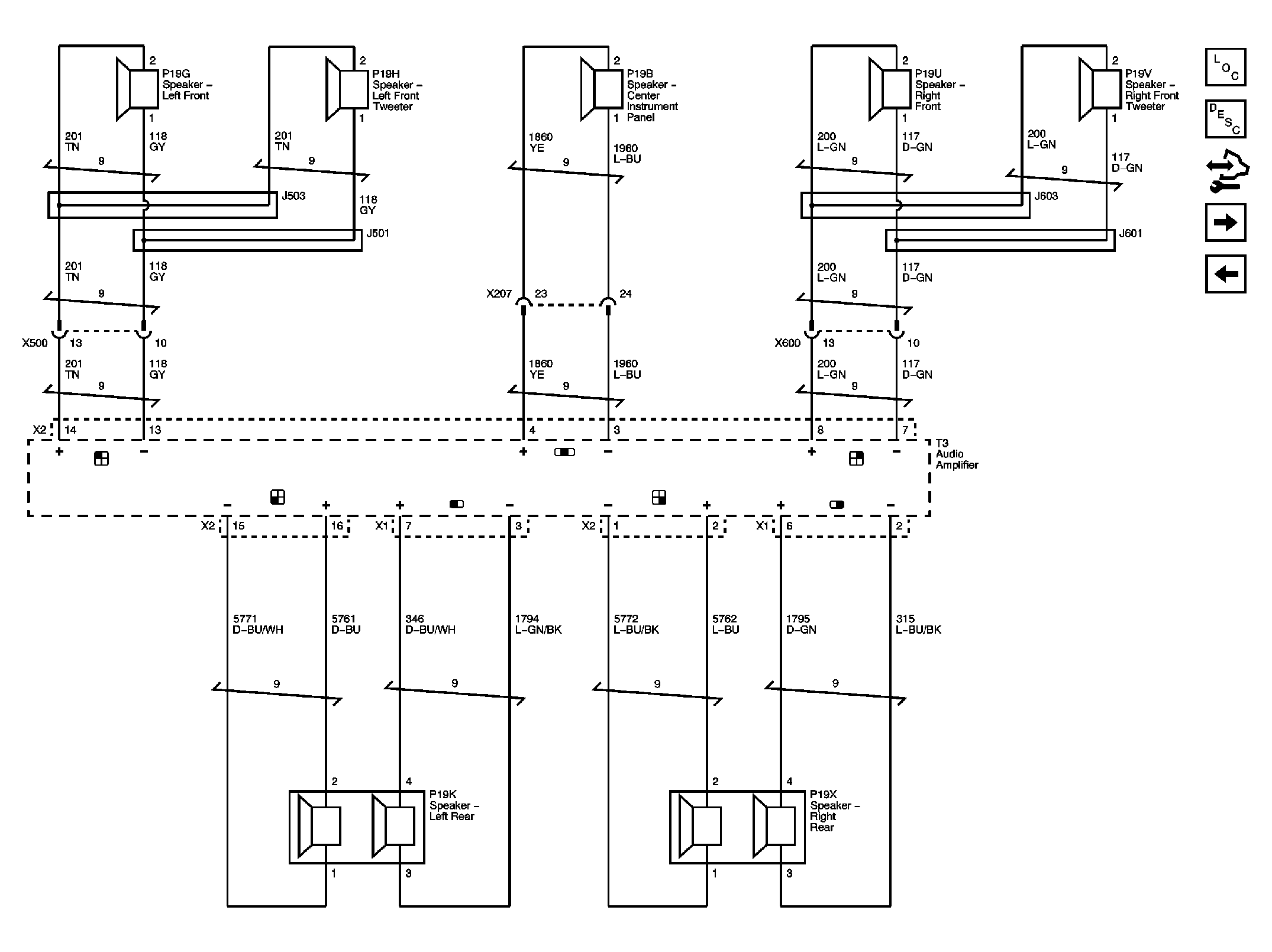

Fig 3: Speakers - UQA

Courtesy of GENERAL MOTORS CORP.

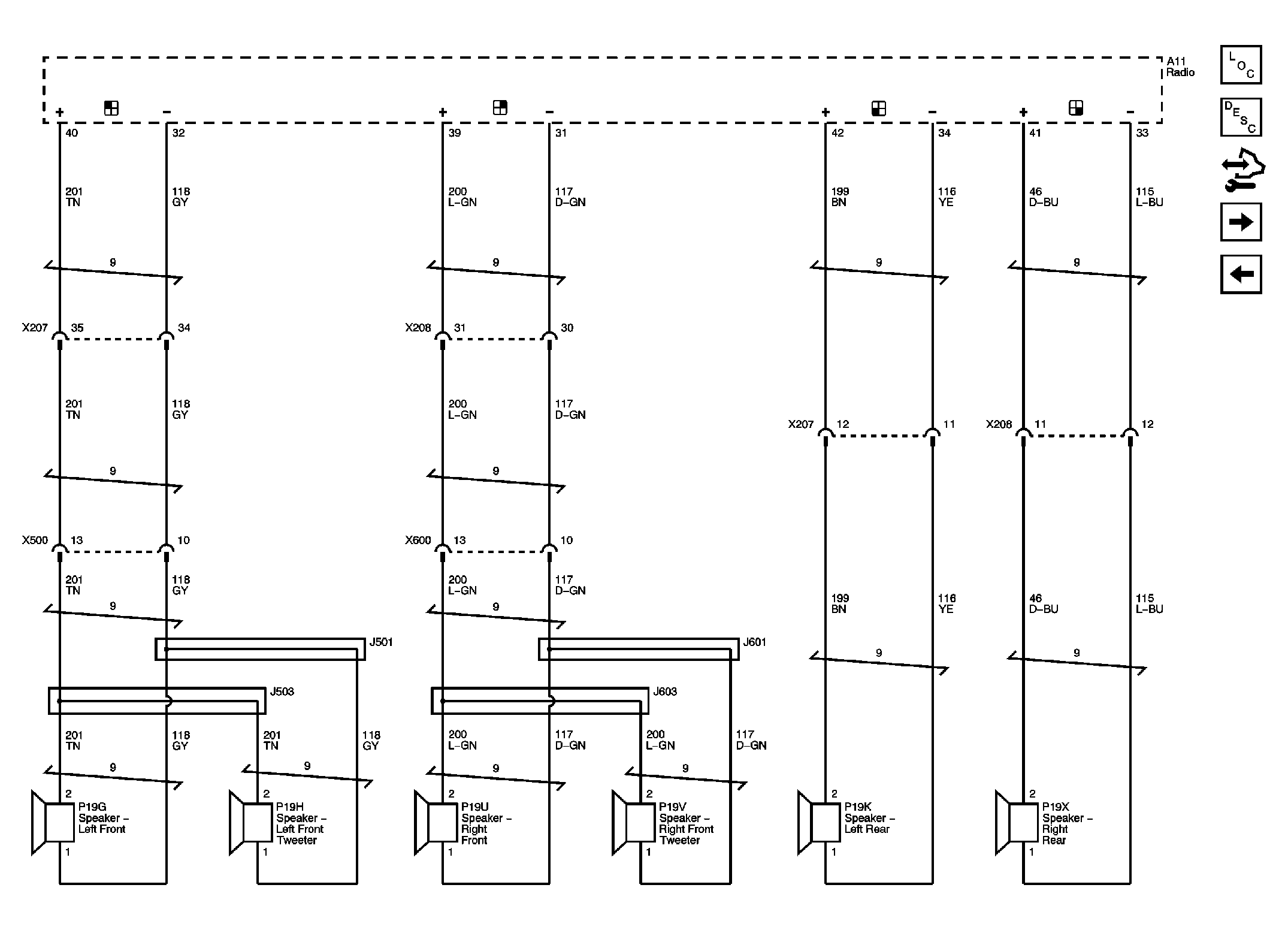

Fig 4: Speakers - UQ3

Courtesy of GENERAL MOTORS CORP.

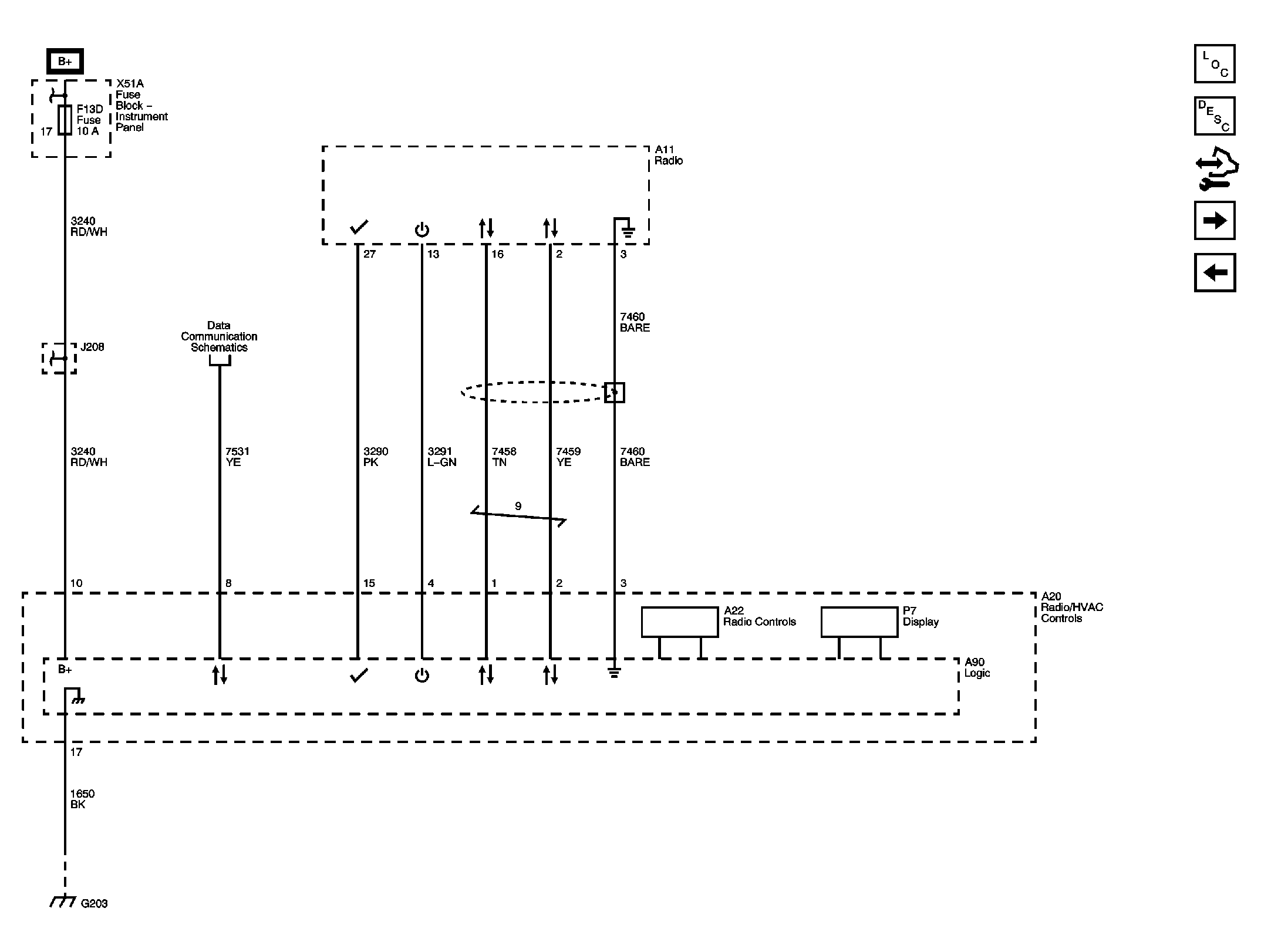

Fig 5: Infotainment Display

Courtesy of GENERAL MOTORS CORP.

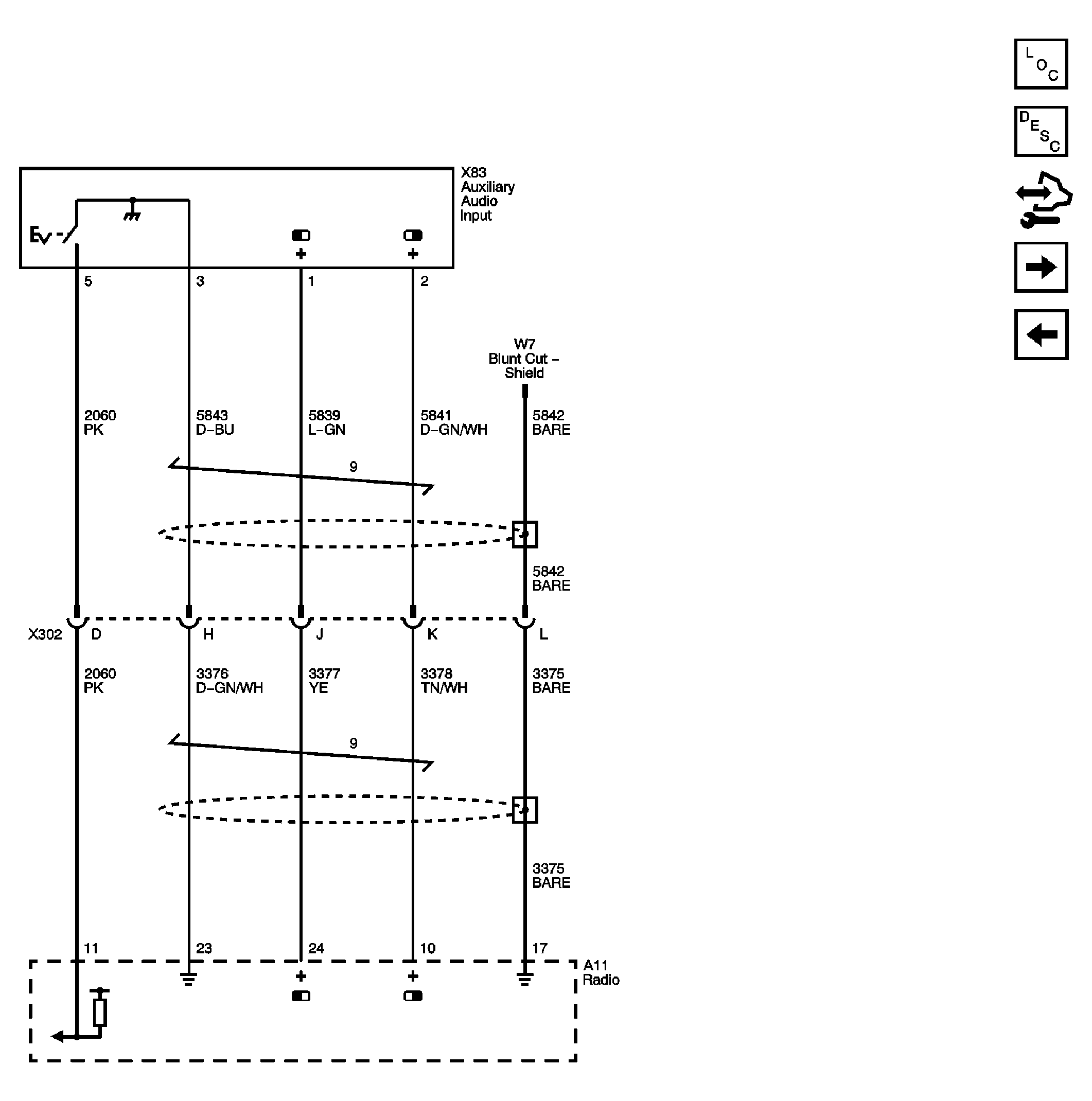

Fig 6: Auxiliary Audio Input without USR

Courtesy of GENERAL MOTORS CORP.

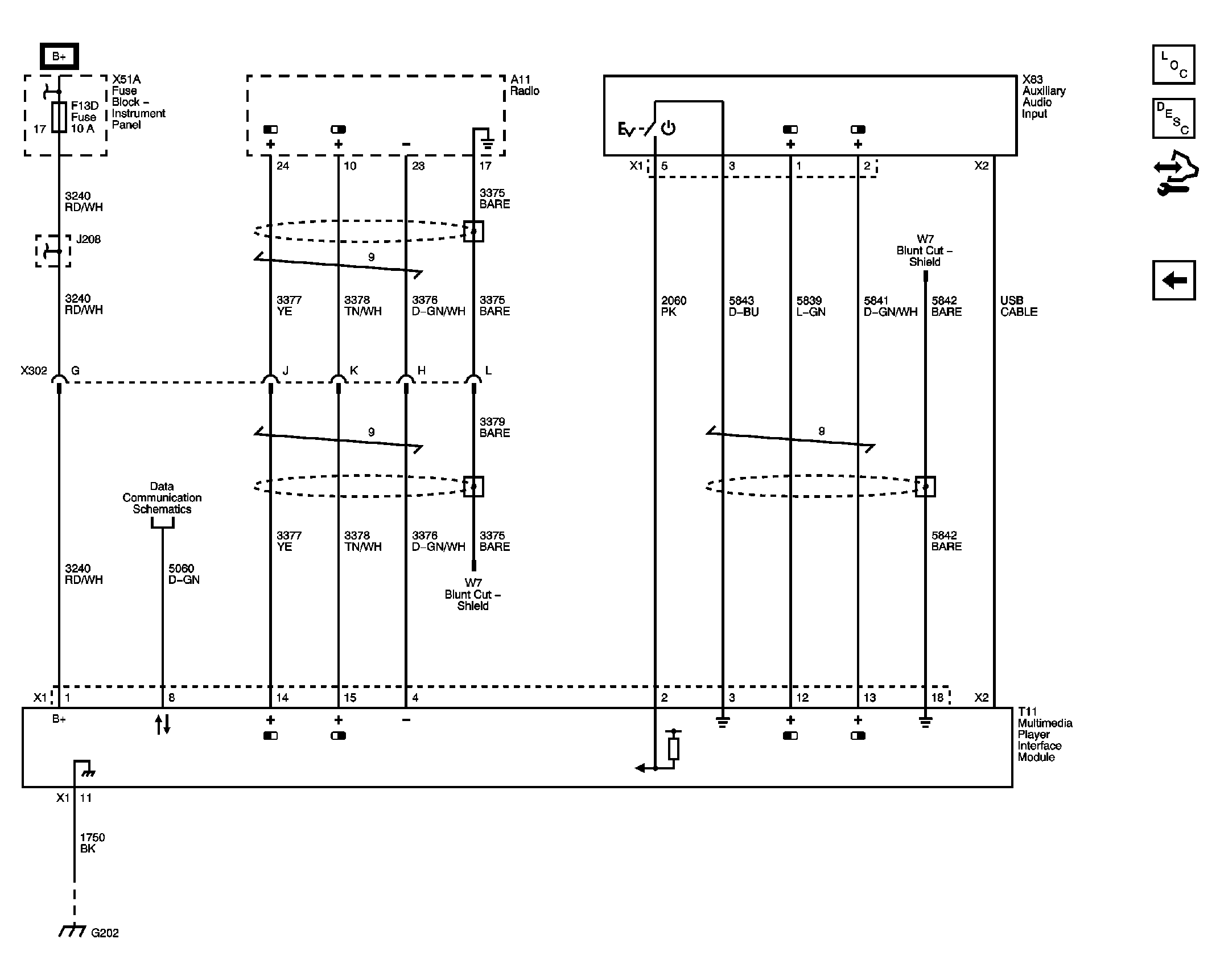

Fig 7: Auxiliary Audio Input with USR

Courtesy of GENERAL MOTORS CORP.
