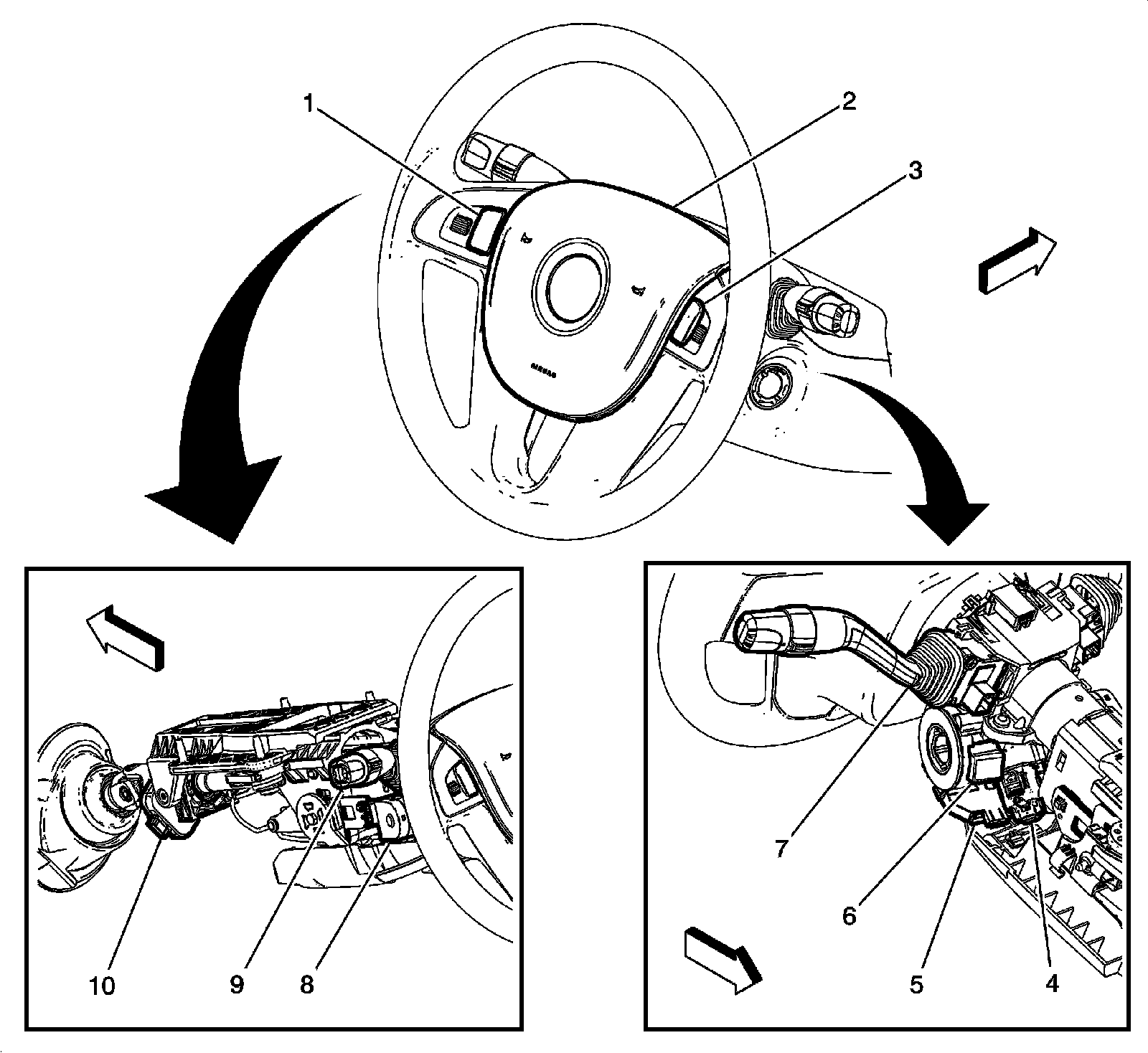

Steering Wheel and Column Components





1 - S70L Steering Wheel Controls Switch - Left

2 - F107 Steering Wheel Air Bag

3 - S70R Steering Wheel Controls Switch - Right

4 - K89 Immobilizer Control Module

5 - M93 Key Capture Solenoid Actuator

6 - E47 Ignition Lock Cylinder Lamp

7 - S82 Windshield Wiper/Washer Switch

8 - S39 Ignition Switch

9 - S78 Turn Signal/Multifunction Switch

10 - B99 Steering Wheel Angle Sensor
