Fuel Level Sensor - Secondary

Wheels/Vehicle Underbody Component Views

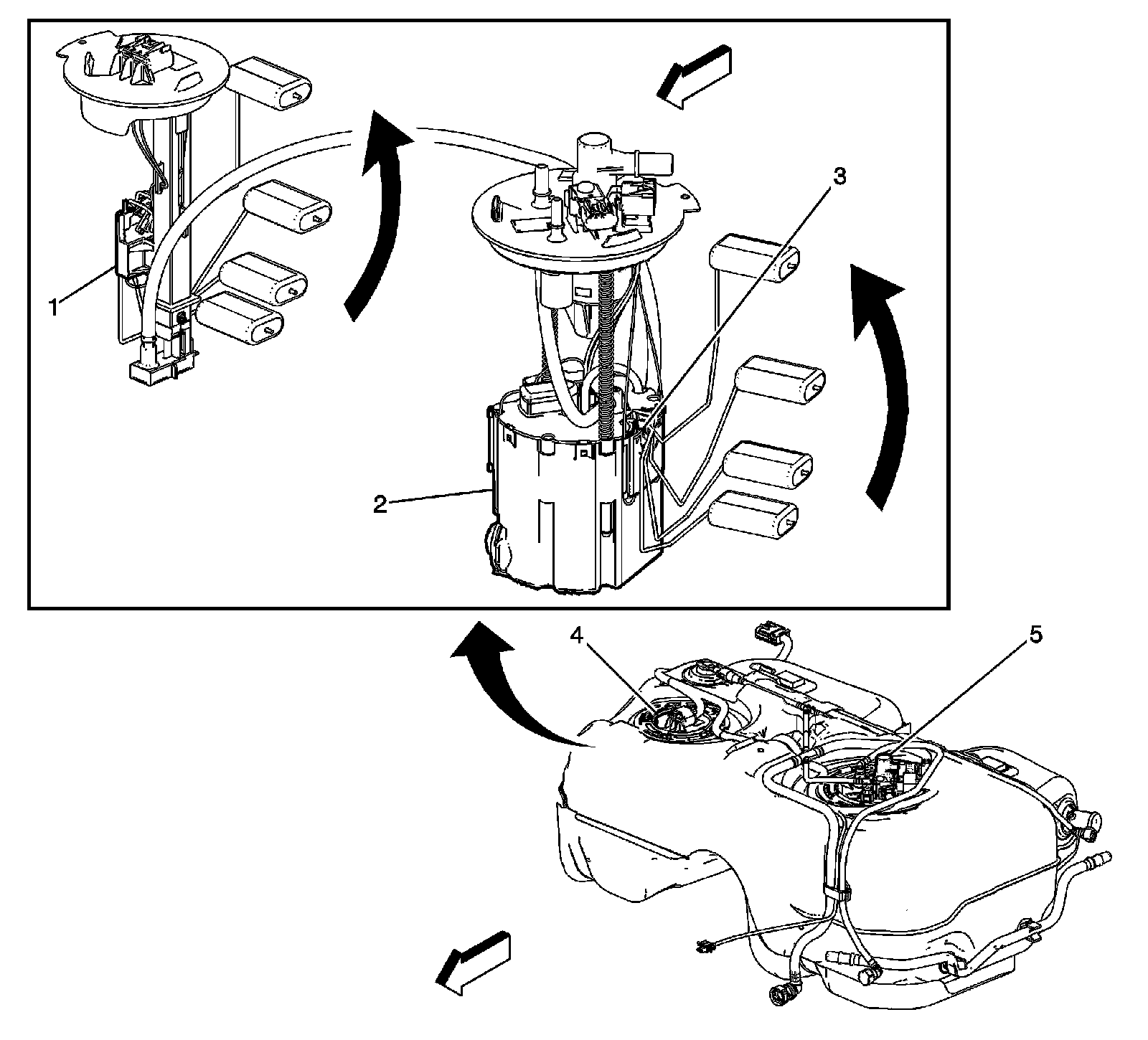

Fuel Tank Components





1 - Fuel Level Sensor - Secondary

2 - Fuel Pump

3 - Fuel Level Sensor - Primary/Fuel Pump Motor

4 - Fuel Sender Assembly - Secondary

5 - Fuel Pump and Sender Assembly - Primary
