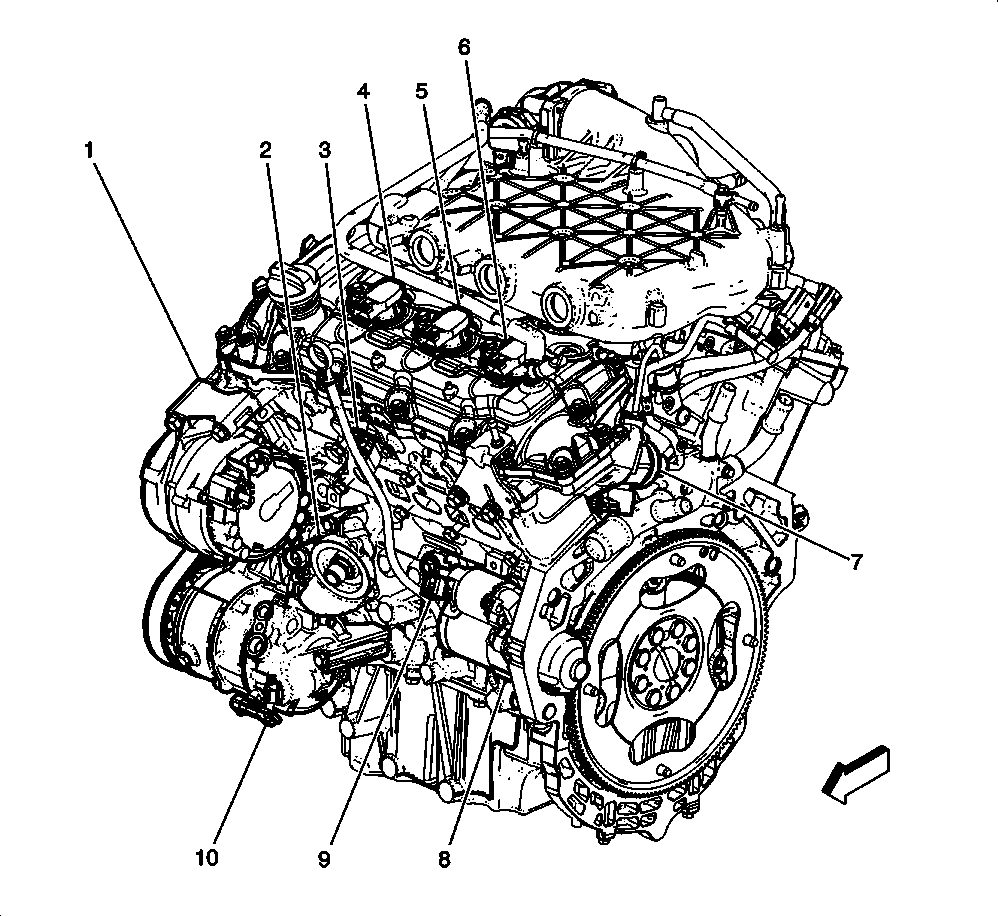

Left Front Engine Components (LFW)
 Courtesy of GENERAL MOTORS COMPANY
|
Left Front Engine Components (LFW)
| Component Name |
Callout |
| Generator |
1 |
| Engine Oil Pressure Switch |
2 |
| Engine Coolant Temperature Sensor |
3 |
| Ignition Coil 2 |
4 |
| Ignition Coil 4 |
5 |
| Ignition Coil 6 |
6 |
| High Pressure Fuel Pump |
7 |
| Starter Motor |
8 |
| Knock Sensor 2 |
9 |
| A/C Compressor |
10 |
