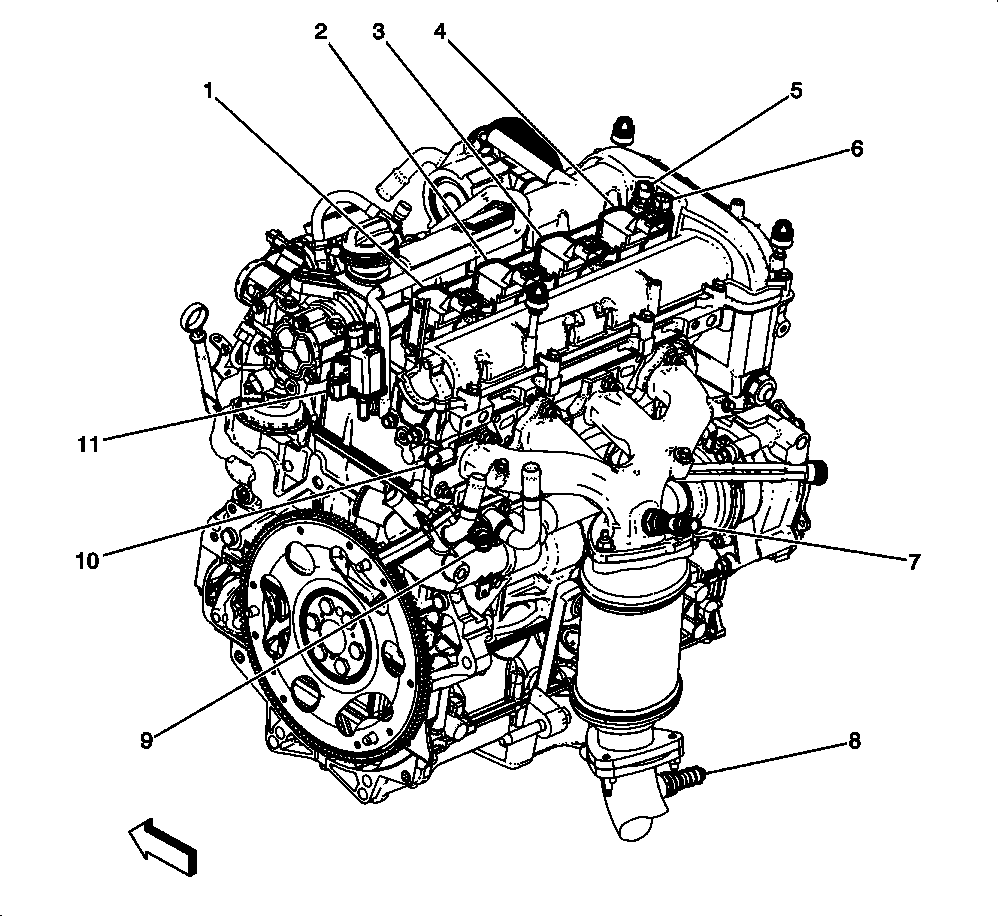

Left Rear Engine Components (LEA)
Left Rear Engine Components (LEA)
| Component Name | Callout |
|---|---|
| Ignition Coil 4 | 1 |
| Ignition Coil 3 | 2 |
| Ignition Coil 2 | 3 |
| Ignition Coil 1 | 4 |
| Camshaft Position Actuator Solenoid Valve - Intake | 5 |
| Camshaft Position Actuator Solenoid Valve - Exhaust | 6 |
| Heated Oxygen Sensor 1 | 7 |
| Heated Oxygen Sensor 2 | 8 |
| Engine Coolant Temperature Sensor | 9 |
| Camshaft Position Sensor - Exhaust | 10 |
| Evaporative Emission (EVAP) Purge Solenoid Valve | 11 |
