Removal Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

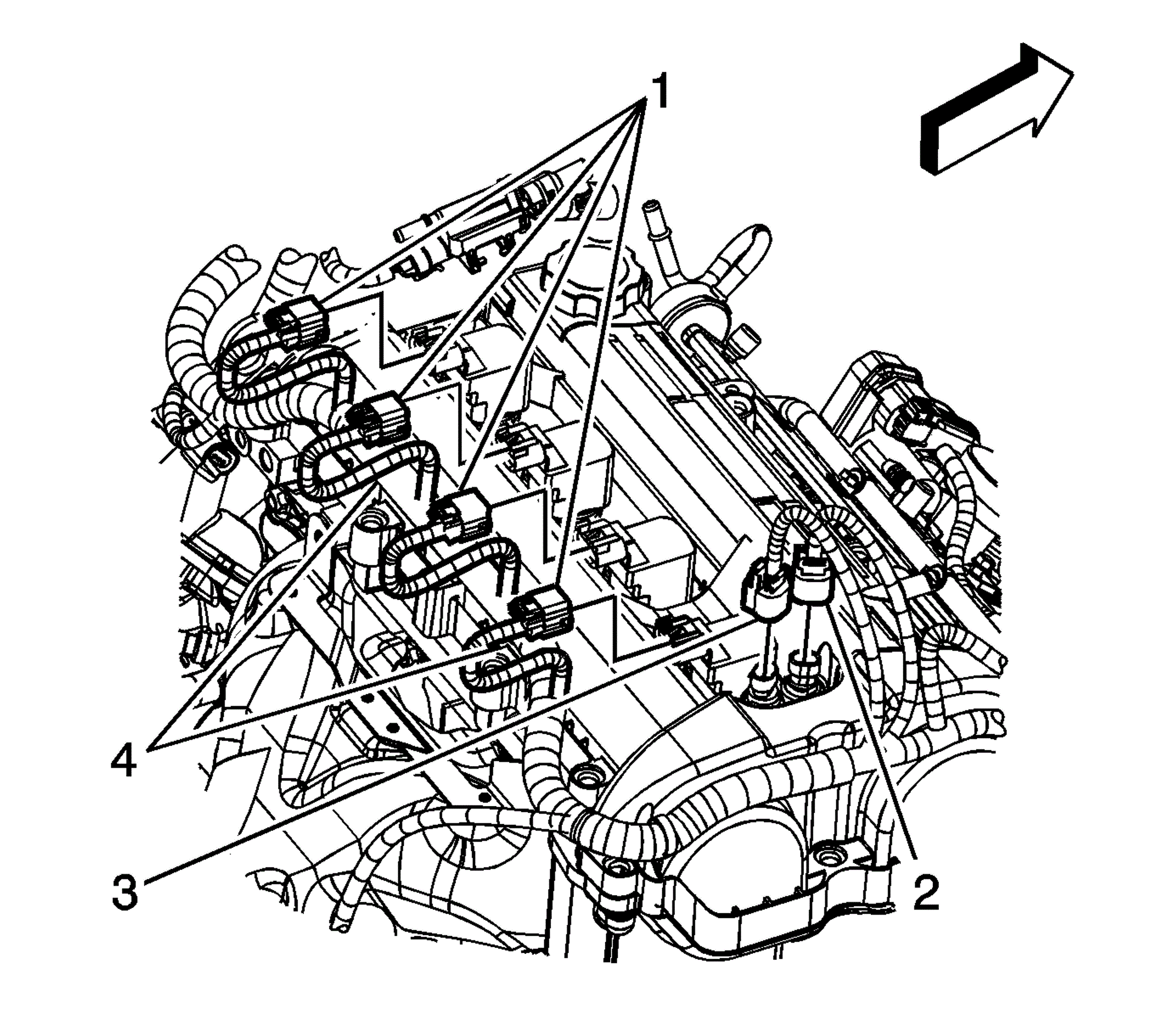

    3. Fig 1: Identifying Engine Wiring Harness Electrical Connectors
    GM1811485Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the engine wiring harness electrical connector(s) (1) from the ignition coil(s).
    4. Fig 2: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS COMPANY
  4. Remove the ignition coil bolt(s).
  5. Remove the ignition coil(s).
