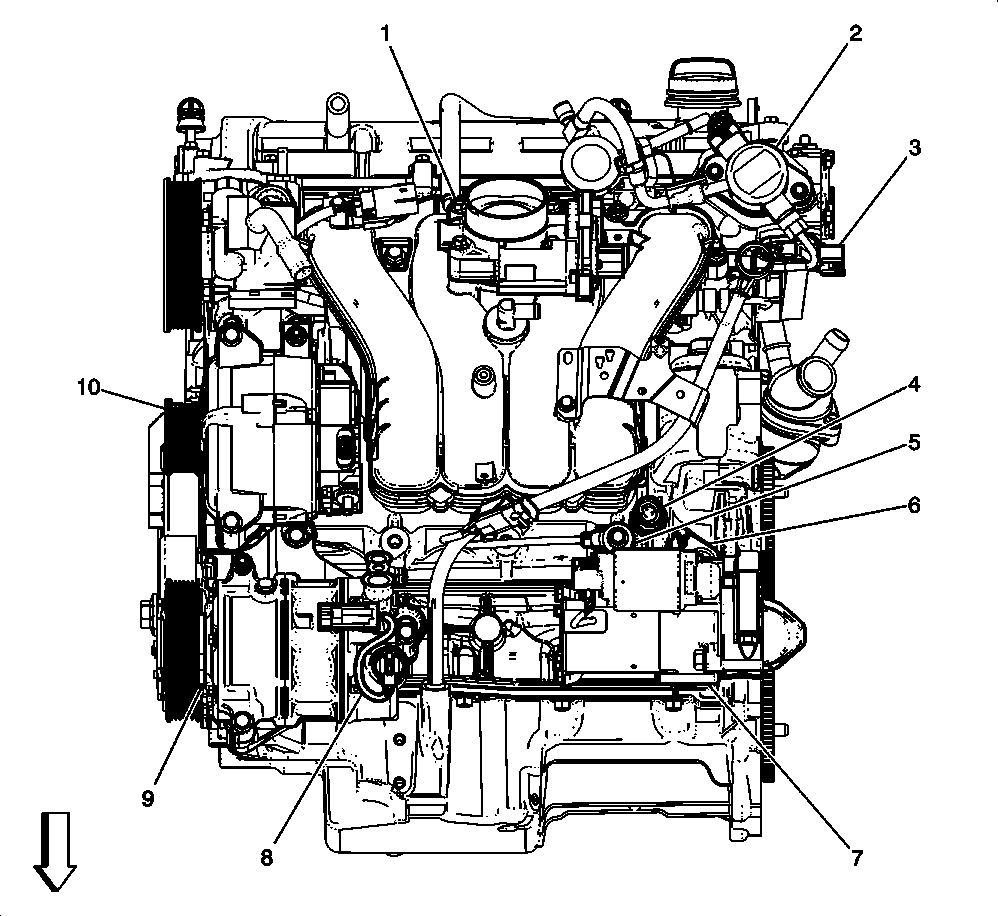

Front Engine Components (LEA 1 of 2)
 Courtesy of GENERAL MOTORS COMPANY
|
Front Engine Components (LEA 1 of 2)
| Component Name |
Callout |
| Throttle Actuator Control (TAC) Module |
1 |
| High Pressure Fuel Pump |
2 |
| Camshaft Position Sensor - Intake |
3 |
| Engine Oil Pressure Switch |
4 |
| Knock Sensor |
5 |
| Crankshaft Position Sensor |
6 |
| Starter Motor |
7 |
| A/C Compressor |
8 |
| Generator |
9 |
