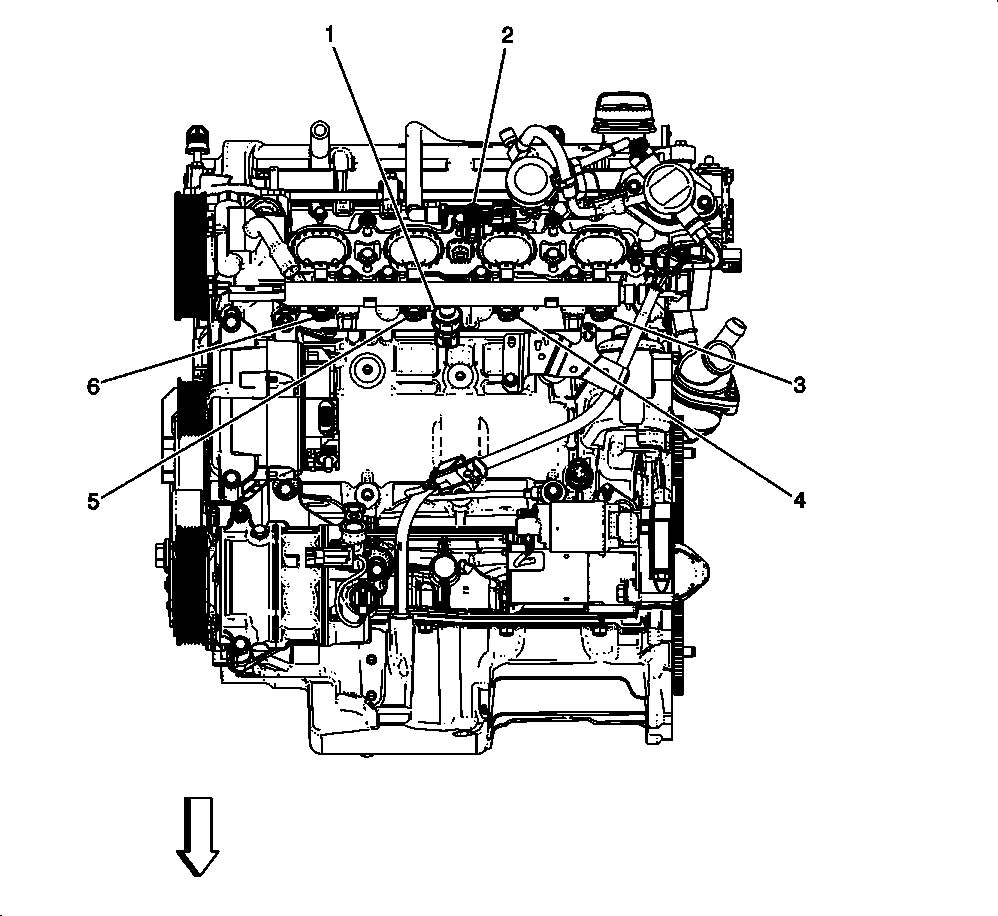

Front Engine Components (LEA 2 of 2)
 Courtesy of GENERAL MOTORS COMPANY
|
Front Engine Components (LEA 2 of 2)
| Component Name |
Callout |
| Fuel Rail Pressure Sensor |
1 |
| Manifold Absolute Pressure Sensor |
2 |
| Fuel Injector 4 |
3 |
| Fuel Injector 3 |
4 |
| Fuel Injector 2 |
5 |
| Fuel Injector 1 |
6 |
