Installation Procedure

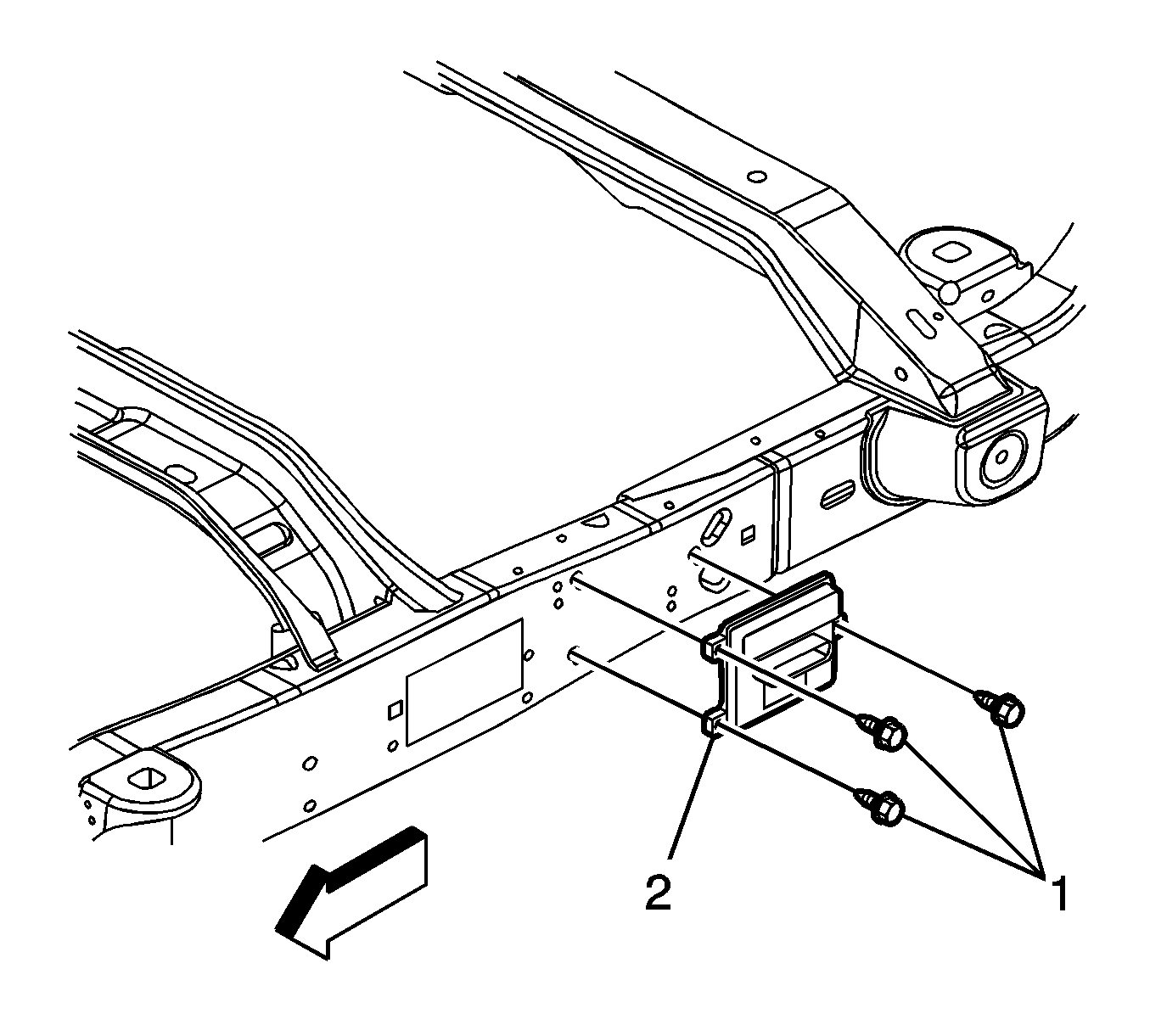

    Fig 1: View Of Fuel Pump Flow Control Module & Bolts
    GM1931045Courtesy of GENERAL MOTORS COMPANY
  1. Place the fuel pump flow control module (2) against the frame.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the fuel pump flow control module bolts (1) and tighten to 9 N.m (80 lb in) .

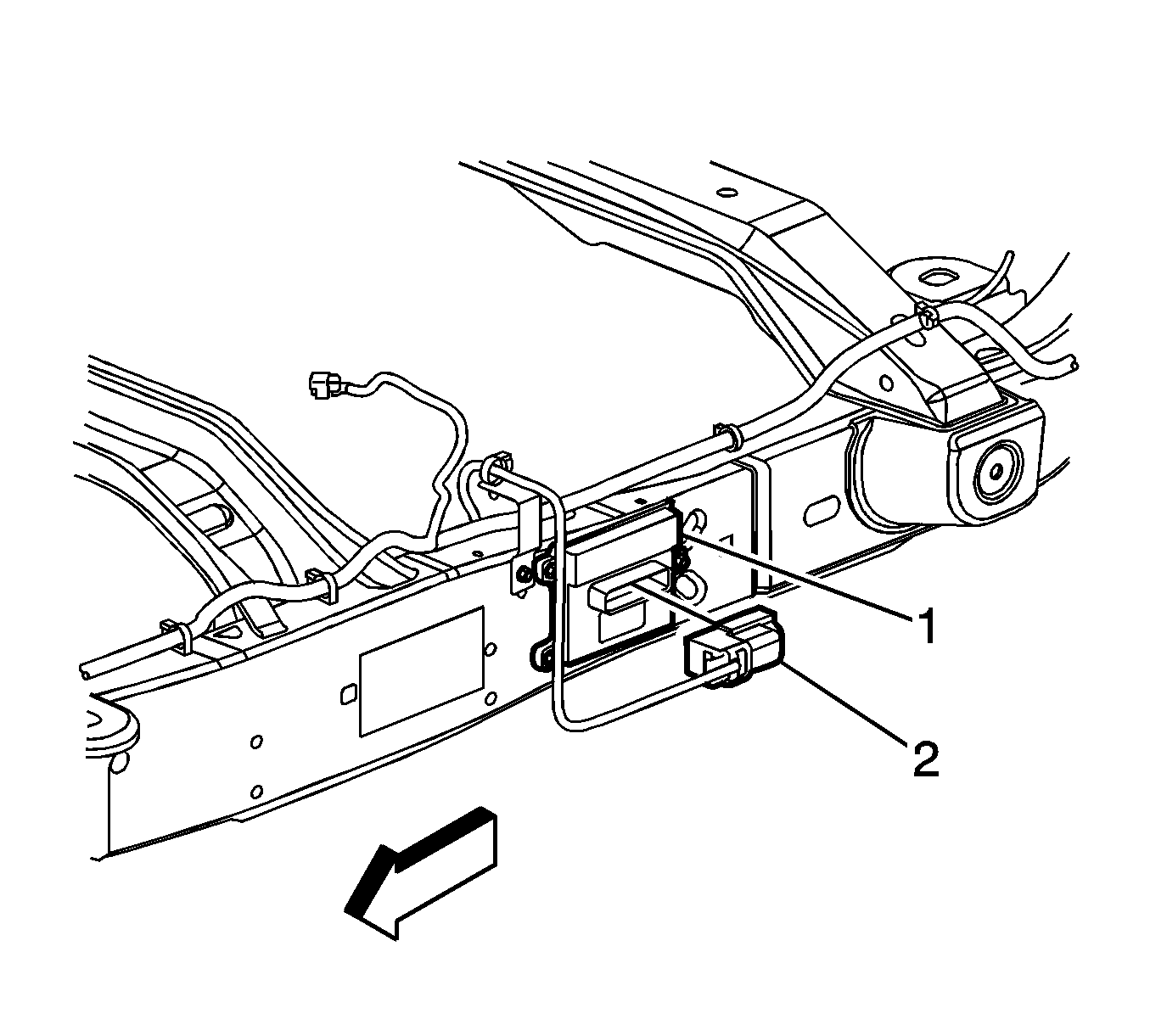

    3. Fig 2: View Of Chassis Wiring Harness Electrical Connector & Fuel Pump Flow Control Module
    GM1931044Courtesy of GENERAL MOTORS COMPANY
  3. Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module (2).
  4. Lower the vehicle.
  5. Program the fuel pump flow control module. Refer to Control Module References .
