Chevy Express H1500, Van Cargo
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communications System Wiring Schematics
>>
High Speed GMLAN (Diesel)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
High Speed GMLAN (Diesel)

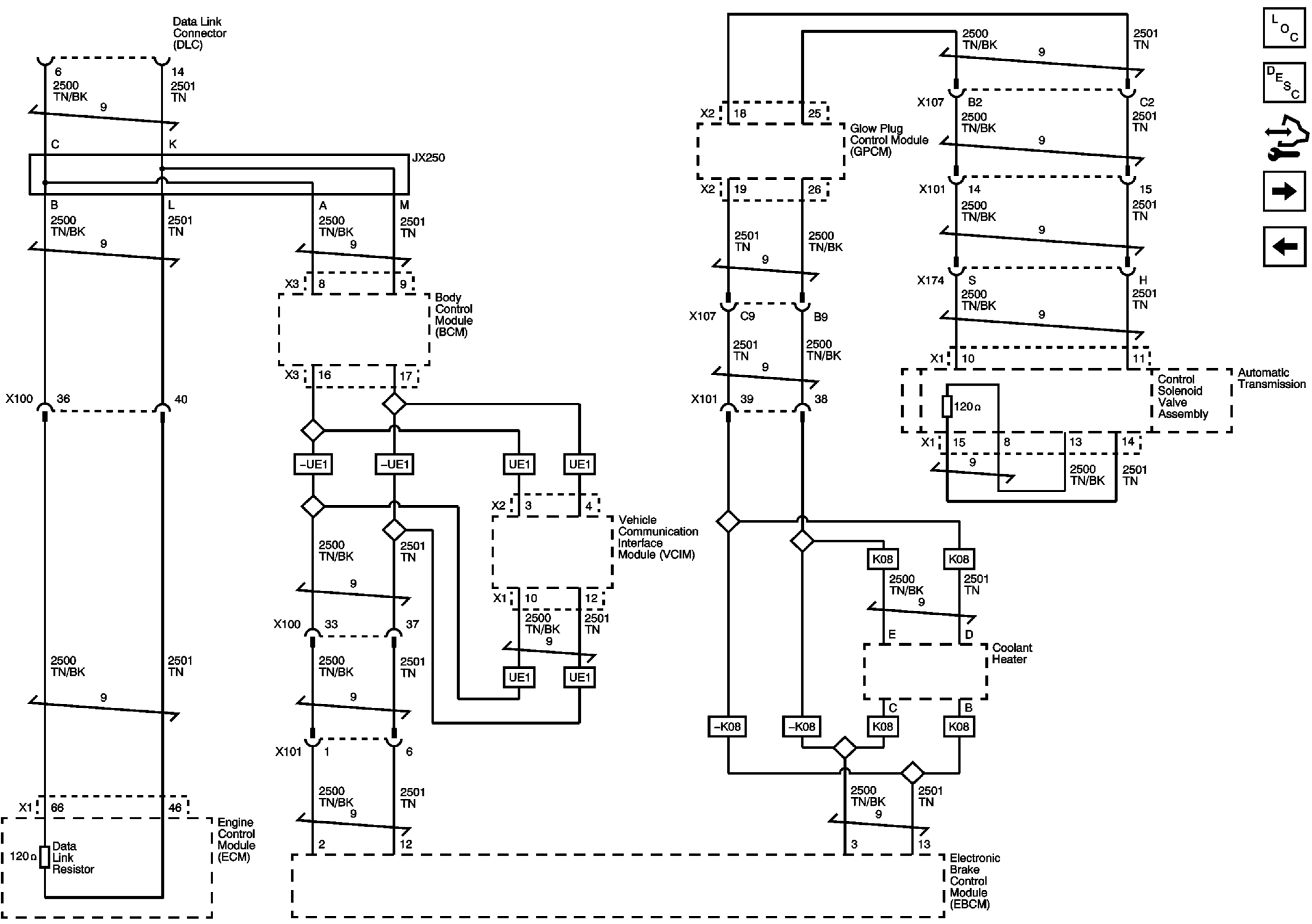

Fig 1: High Speed GMLAN (Diesel) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
