Data Communications System Wiring Schematics
>>
High Speed GMLAN (Gas)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
High Speed GMLAN (Gas)

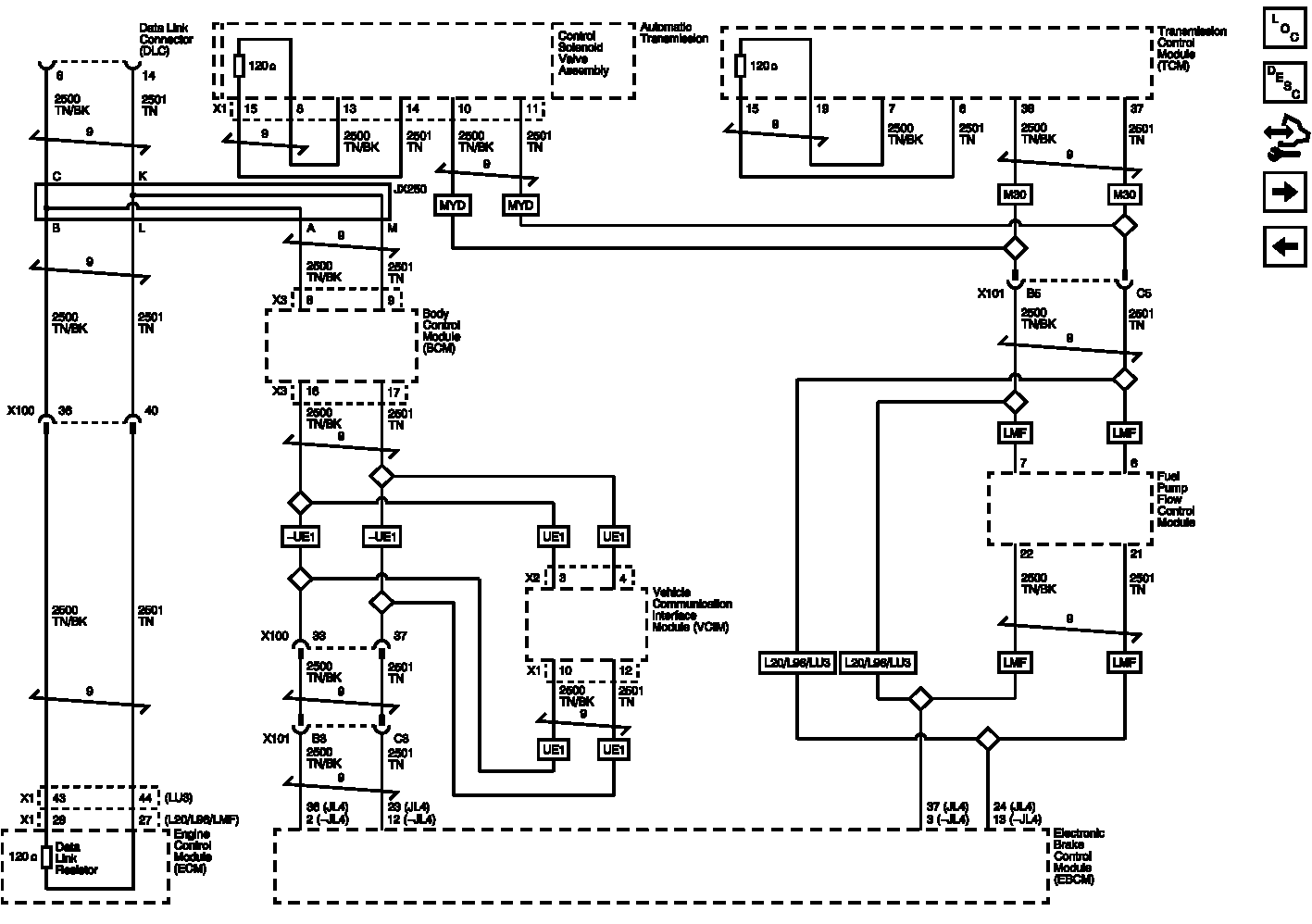

Fig 1: High Speed GMLAN (Gas) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
