Wiper/Washer System Components

Wiper/Washer System Components

Component Name Callout
Heated Washer Nozzle- Left (CE4) 1
Windshield Wiper/Washer Switch 2
Windshield Wiper Motor 3
Windshield Washer Fluid Level Switch 4
Windshield Washer Fluid Pump 5
Headlamp Washer Fluid Pump (CE4) 6
Heated Washer Nozzle- Right (CE4) 7

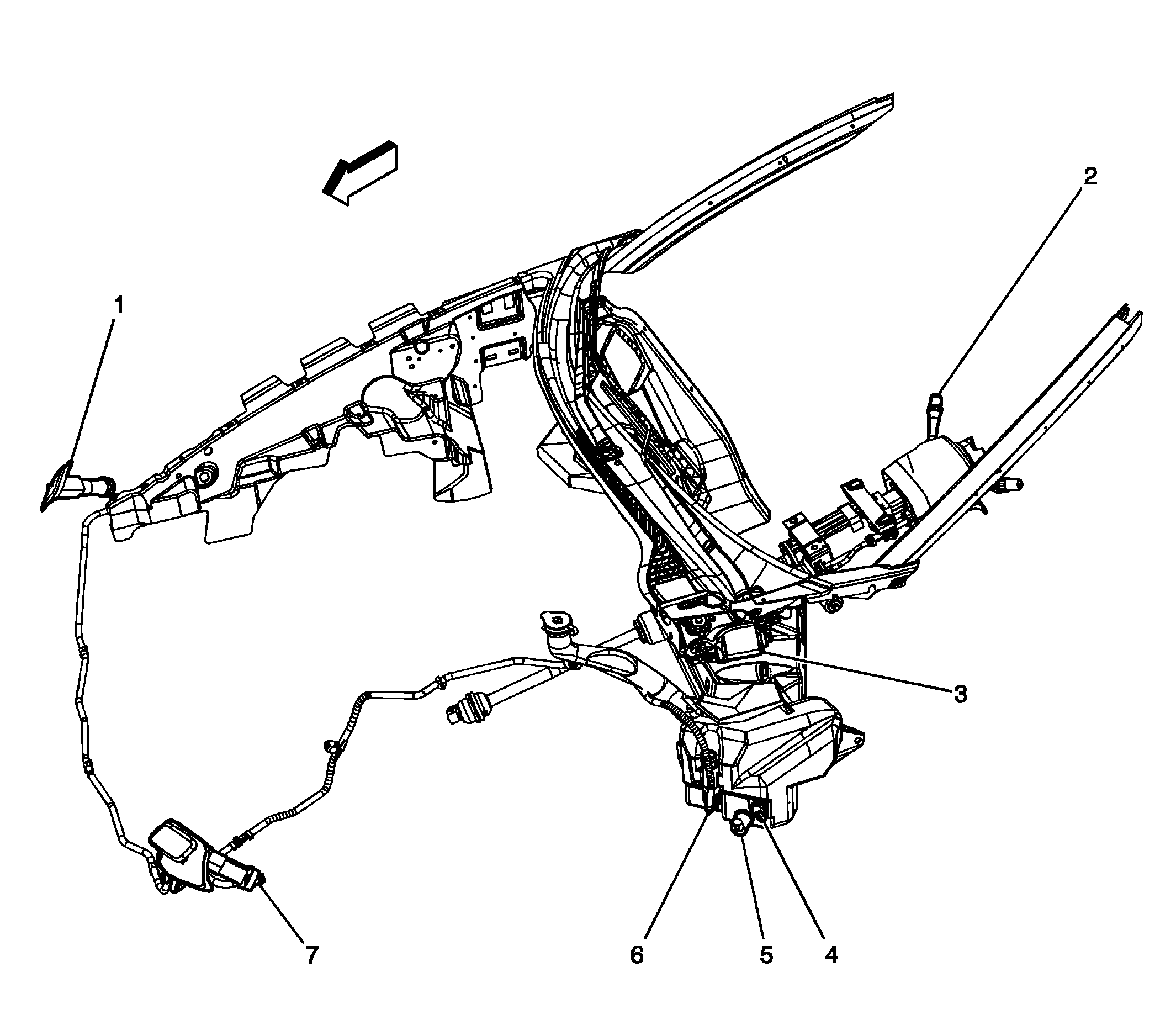

Fig 1: Wiper Washer Components
GM1489114Courtesy of GENERAL MOTORS COMPANY
