Front of Engine Compartment Components

Front of Engine Compartment Components

Component Name Callout
X149 (LS9) 1
X150 (LS9) 2
G101 3
Side Marker Lamp- Left Front 4
Fog Lamp- Left Front 5
Inflatable Restraints Front End Sensor- Left 6
X131 7
Inflatable Restraints Front End Sensor- Right 8
Ambient Air Temperature Sensor 9
Charge Air Cooler (CAC) Coolant Pump (LS9) 10
Horns 11
Fog Lamp- Right 12
J102 13
Side Marker Lamp- Right Front 14
G102 15

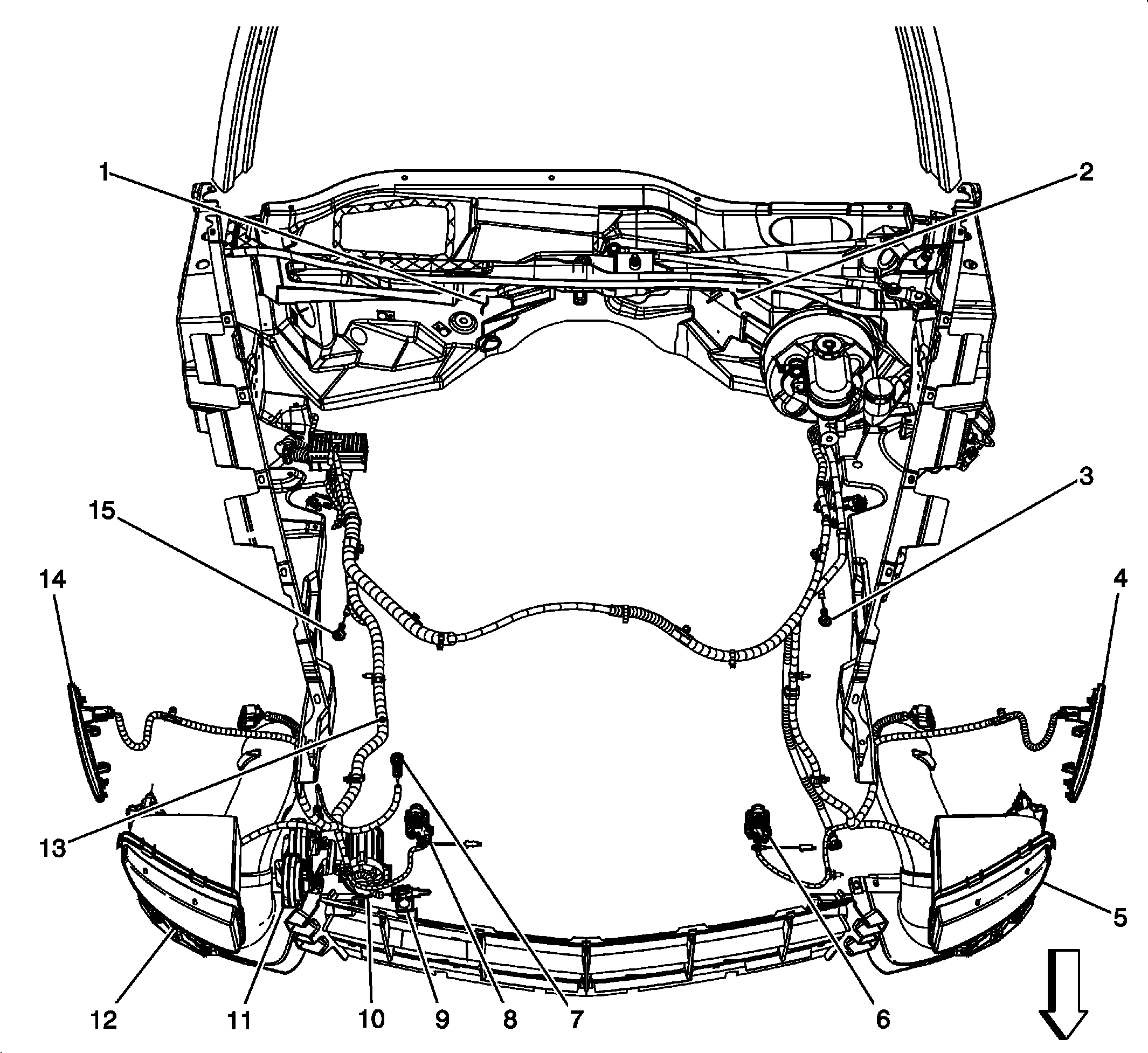

Fig 1: Front of Engine Compartment Components
GM2528600Courtesy of GENERAL MOTORS COMPANY
