Lumbar Switch Replacement
Lumbar Switch Replacement

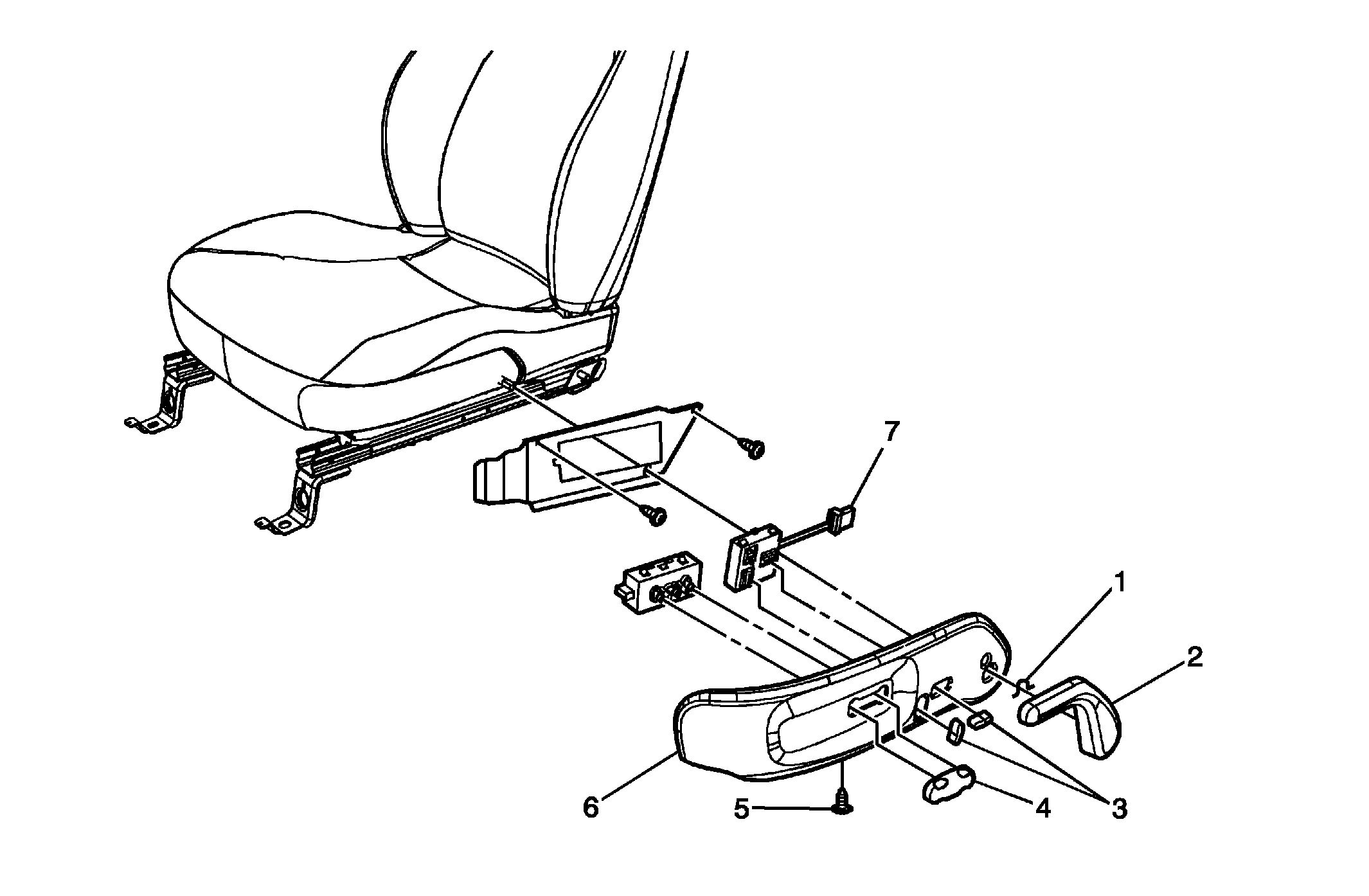

| Callout | Component Name |
|---|---|
| 1 | Recliner Handle Retainer Clip |
| 2 | Recliner Handle TIP: Using a flat-bladed tool, push the retainer clip downward and pull outward to release the handle. |
| 3 | Lumbar Switch Knob (Qty: 2) |
| 4 | Power Seat Switch Knob |
| 5 | Shield Attachment Screw
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 6 | Side Shield |
| 7 | Lumbar Switch Assembly |
