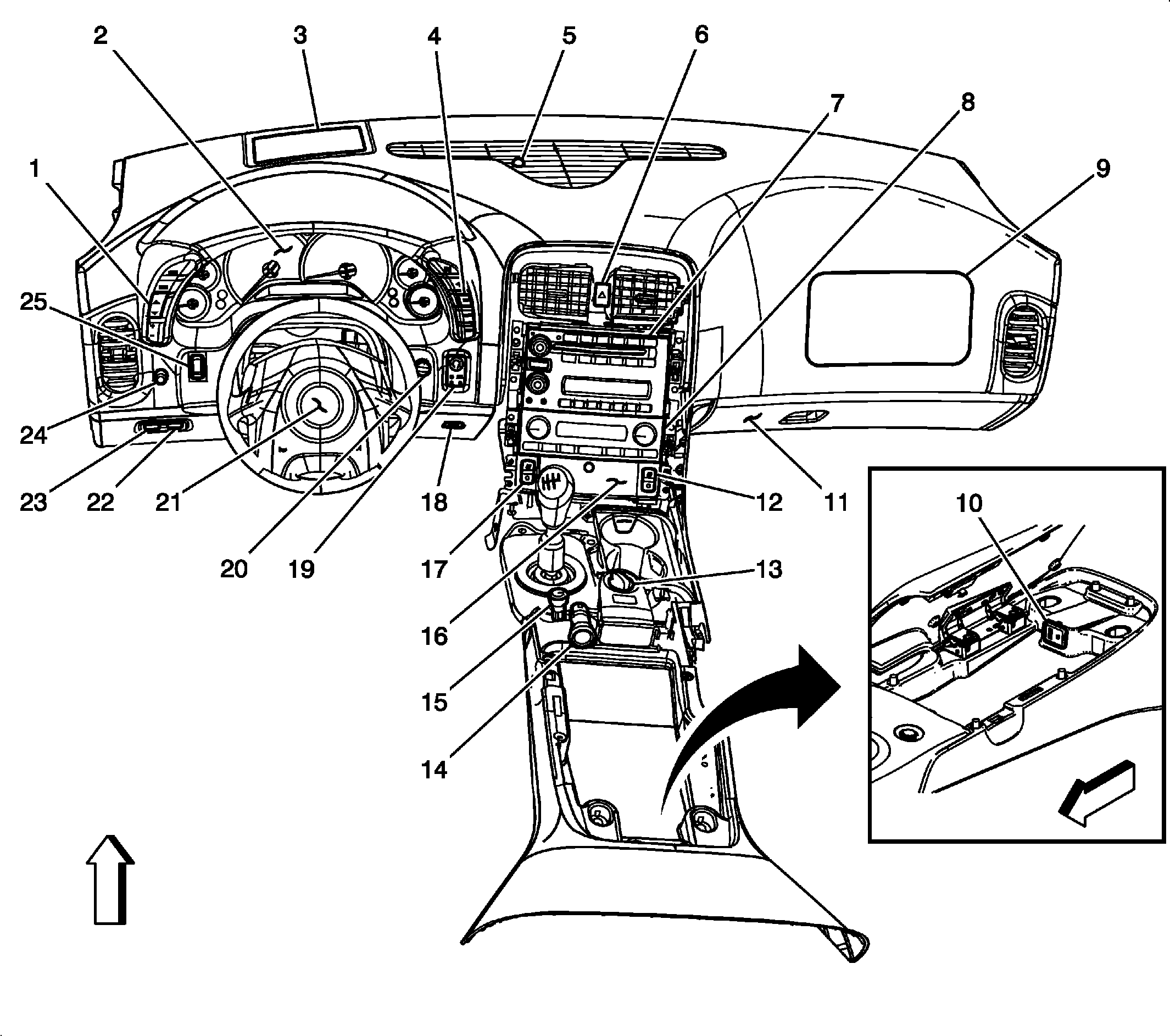

Instrument Panel and Center Console Components
Instrument Panel and Center Console Components
| Component Name | Callout |
|---|---|
| Head Up Display (HUD) Switch (UV6) | 1 |
| Instrument Panel Cluster (IPC) | 2 |
| Head Up Display (HUD) (UV6) | 3 |
| Driver Information Center (DIC) Switch | 4 |
| Sunload Sensor | 5 |
| Hazard Warning Switch | 6 |
| Radio | 7 |
| HVAC Control Module | 8 |
| Inflatable Restraint I/P Module | 9 |
| Auxiliary Audio Jack (U3U) | 10 |
| I/P Compartment Lamp | 11 |
| Heated Seat Switch - Passenger (KA1) | 12 |
| Suspension Control Switch (F55) | 13 |
| Accessory Power Outlet | 14 |
| Traction Control Switch (TCS) | 15 |
| Cigar Lighter | 16 |
| Heated Seat Switch - Driver (KA1) | 17 |
| Noise Compensation Microphone (U65) | 18 |
| Ignition Mode Switch | 19 |
| Air Temperature Sensor - Inside | 20 |
| Inflatable Restraint Steering Wheel Module | 21 |
| Rear Compartment Lid Release Switch - Interior | 22 |
| Fuel Door Release Switch | 23 |
| I/P Dimmer Switch | 24 |
| Folding Top Control Switch (CM7) | 25 |
