Steering Wheel External Components

Steering Wheel External Components

Component Name Callout
Steering Wheel Control Switch - Left (UPF) 1
Automatic Transmission Manual Shift Switch - Left (MYC) 2
Automatic Transmission Manual Shift Switch - Right (MYC) 3
Steering Wheel Control Switch - Right (UK3) 4
Inflatable Restraint Steering Wheel Module 5

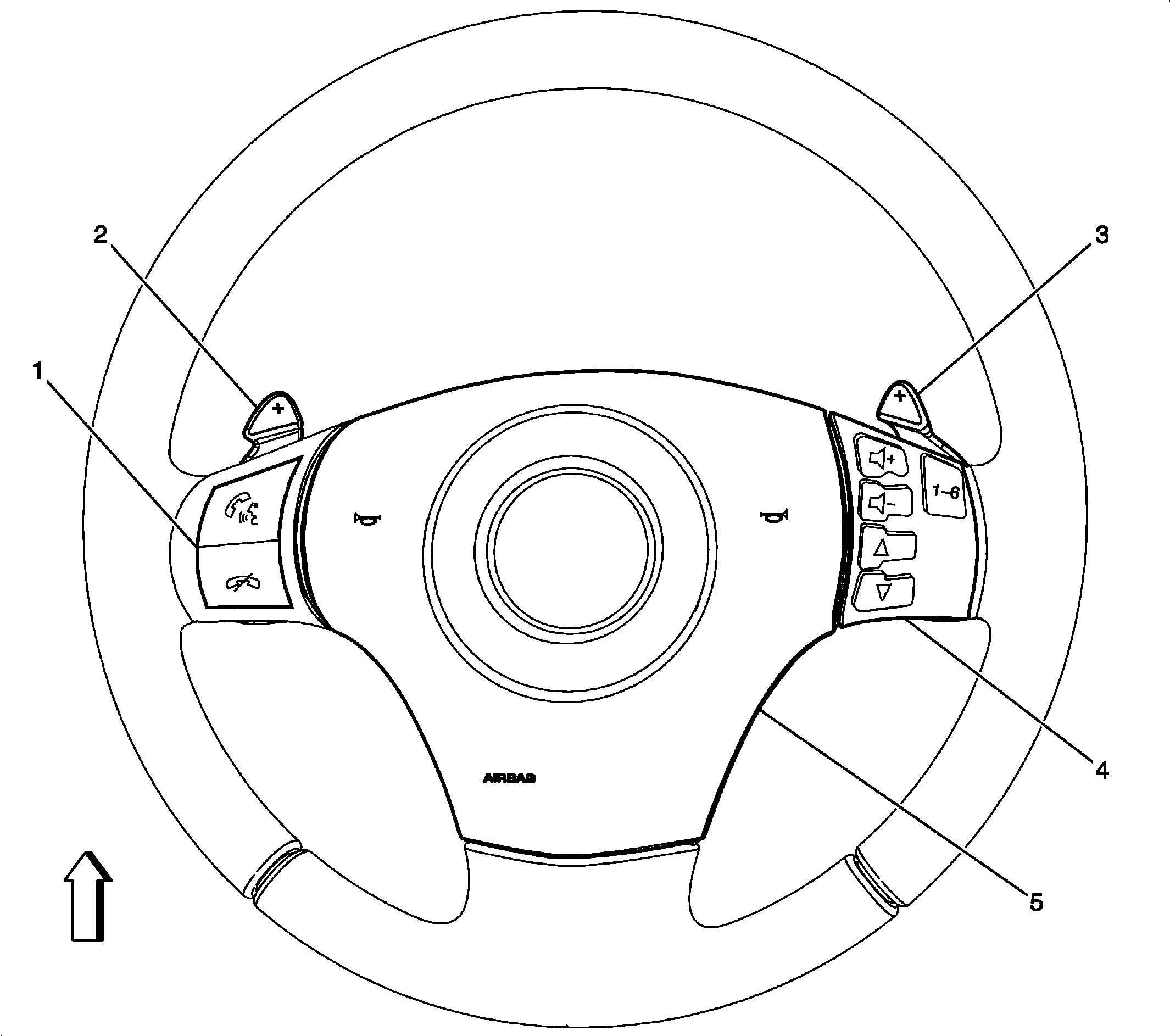

Fig 1: View Of Steering Wheel
GM2185808Courtesy of GENERAL MOTORS COMPANY
