Engine Compartment Electrical Components

Engine Compartment Electrical Components

Component Name Callout
G106 1
Battery Positive Cable 2
Battery Negative Cable 3
Battery (LS3 without Z52) 4
Starter Solenoid 5
Starter Motor 6
Generator (LS3 or LS7) 7

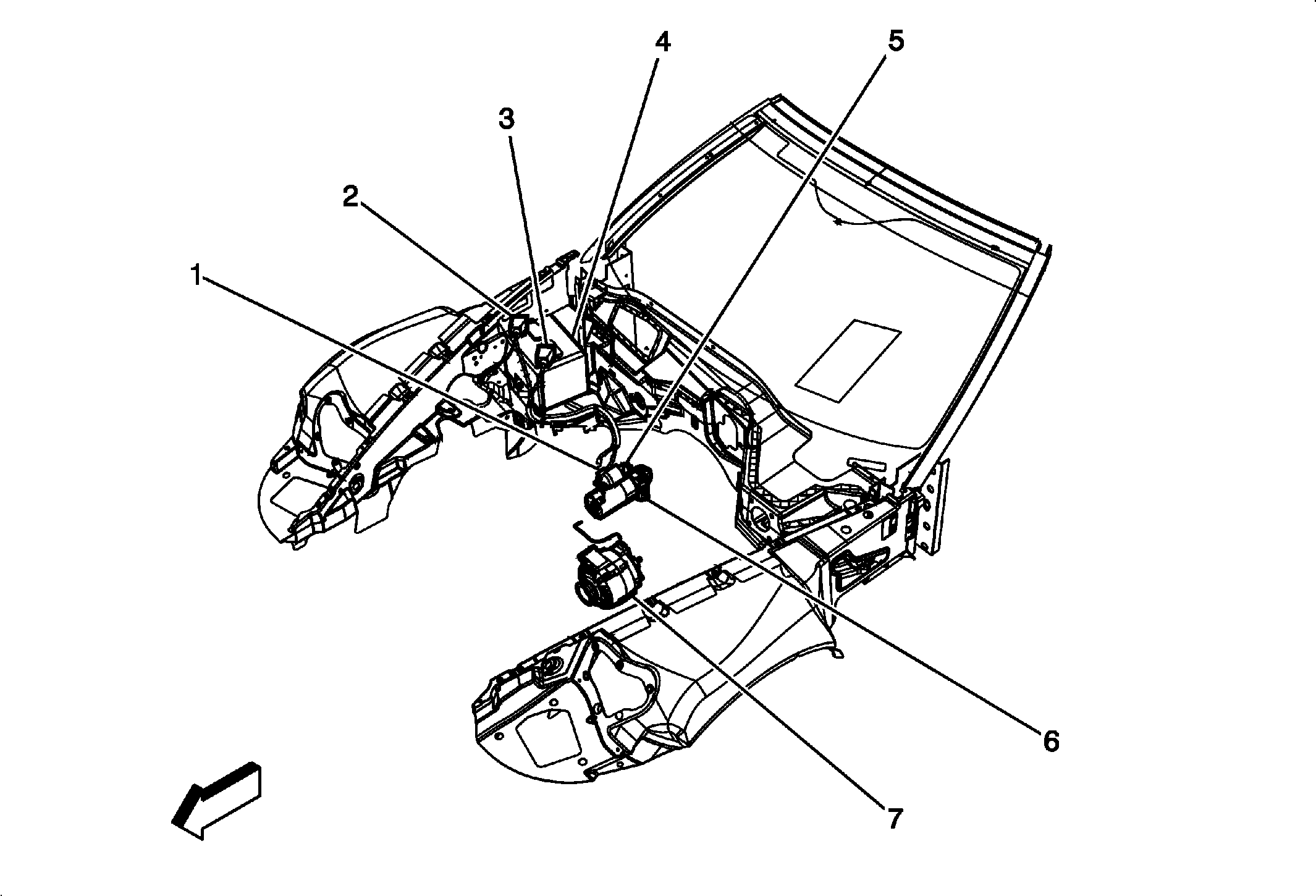

Fig 1: Engine Compartment Electrical Components
GM2528923Courtesy of GENERAL MOTORS COMPANY
