Left Side of Engine Components (LS3)
Left Side of Engine Components (LS3)
Component Name
Callout
Generator
1
G107
2
Knock Sensor (KS) 1
3
G105
4
X103
5

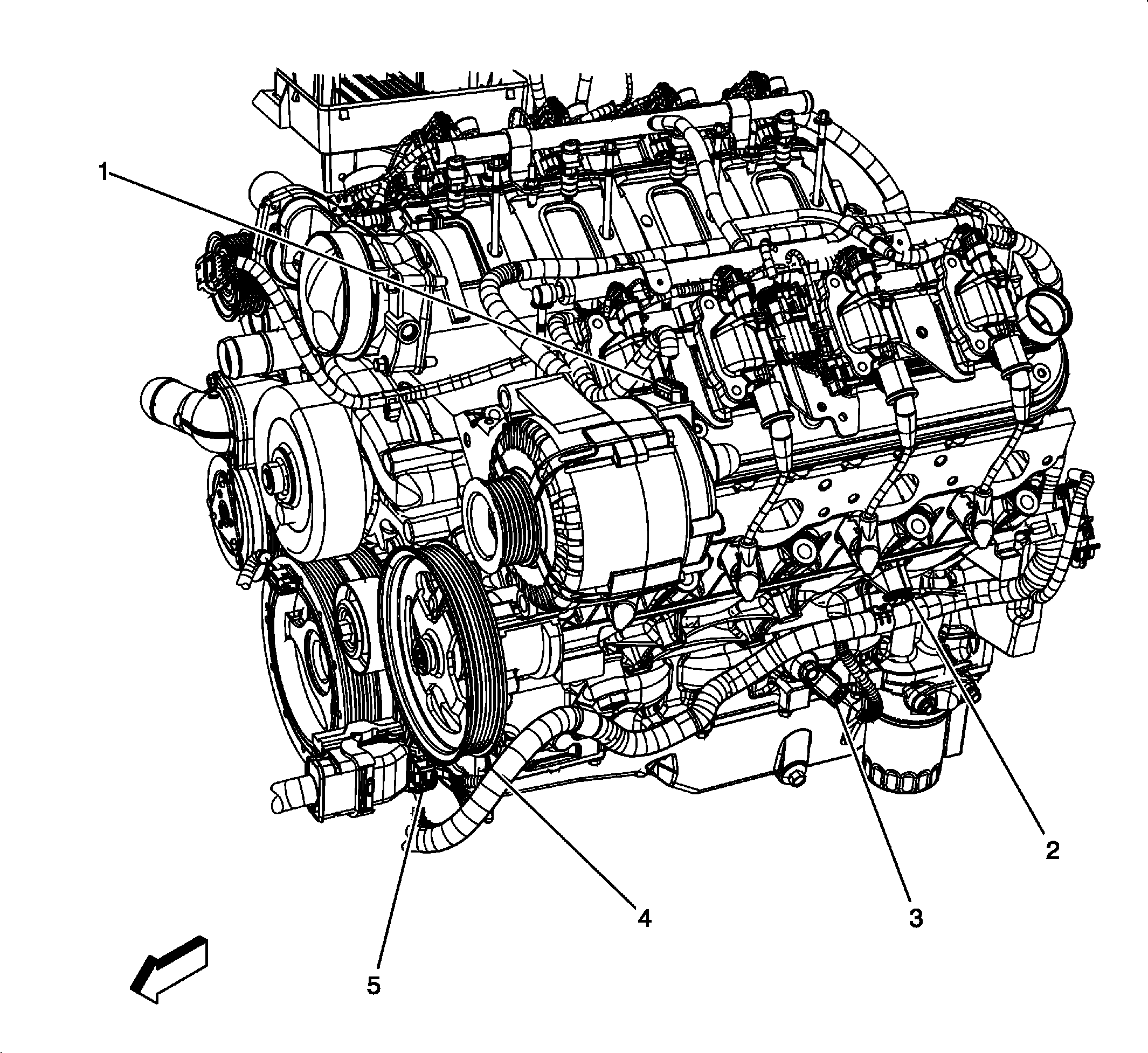

Fig 1: Left Side of Engine Components (LS3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
