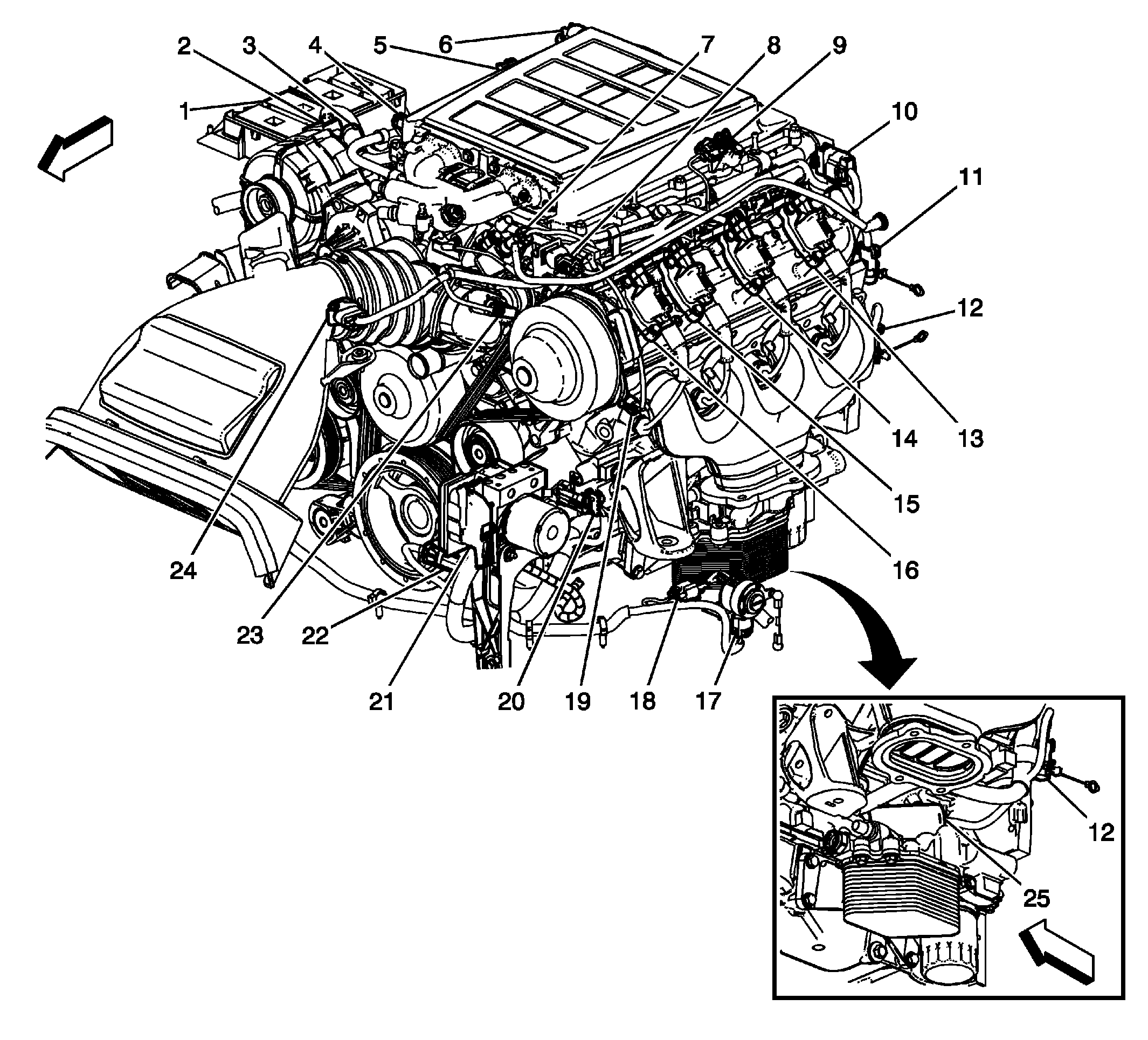

Left Side of Engine Components (LS9)
Left Side of Engine Components (LS9)
| Component Name | Callout |
|---|---|
| Fuse Block - Underhood X2 | 1 |
| Generator X1 | 2 |
| Generator X2 | 3 |
| Intake Air Temperature (IAT) Sensor 2 | 4 |
| Barometric Pressure (BARO) Sensor | 5 |
| X149 | 6 |
| Evaporative Emission (EVAP) Canister Purge Solenoid Valve | 7 |
| Supercharger Bypass Valve Solenoid (JL9) | 8 |
| Manifold Absolute Pressure (MAP) Sensor | 9 |
| X150 | 10 |
| Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 | 11 |
| Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 | 12 |
| Ignition Coil 7 | 13 |
| Ignition Coil 5 | 14 |
| Ignition Coil 3 | 15 |
| Ignition Coil 1 | 16 |
| Suspension Position Sensor - Left Front (FE2) | 17 |
| Wheel Speed Sensor (WSS) - Left Front | 18 |
| Engine Coolant Temperature (ECT) Sensor | 19 |
| Camshaft Position (CMP) Sensor | 20 |
| Electronic Brake Control Module (EBCM) | 21 |
| Variable Effort Steering Actuator | 22 |
| Throttle Body | 23 |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor | 24 |
| Knock Sensor (KS) | 25 |
