Removal Procedure

    IMPORTANT:

    DO NOT handle the level sender on the resistor card. Oils from human contact can damage the card.

  1. Remove the module from the fuel tank. Refer to Fuel Tank Fuel Pump Module Replacement - Left Side (6.2L LS3, 7.0L LS7) , Fuel Tank Fuel Pump Module Replacement - Left Side (6.2L LS9 - With Supercharger) .

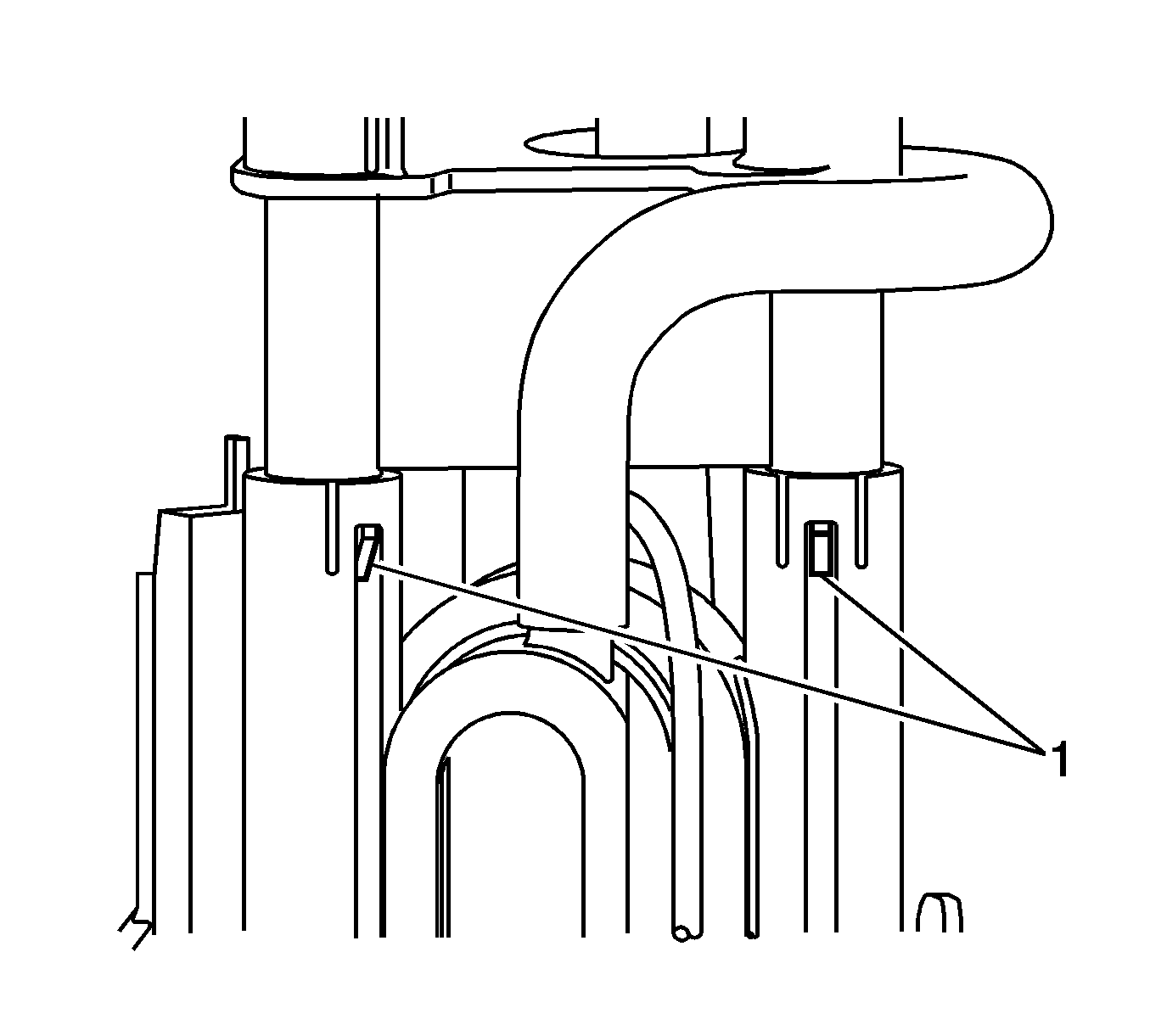

    2. Fig 1: Identifying (CPA) Lock Tabs
    GM1690257Courtesy of GENERAL MOTORS COMPANY
  2. Press on the 3 connector position assurance (CPA) lock tabs (1) and slide downward.
  3. Disconnect the electrical connector from the module.
  4. Remove the sender wires from the connector.

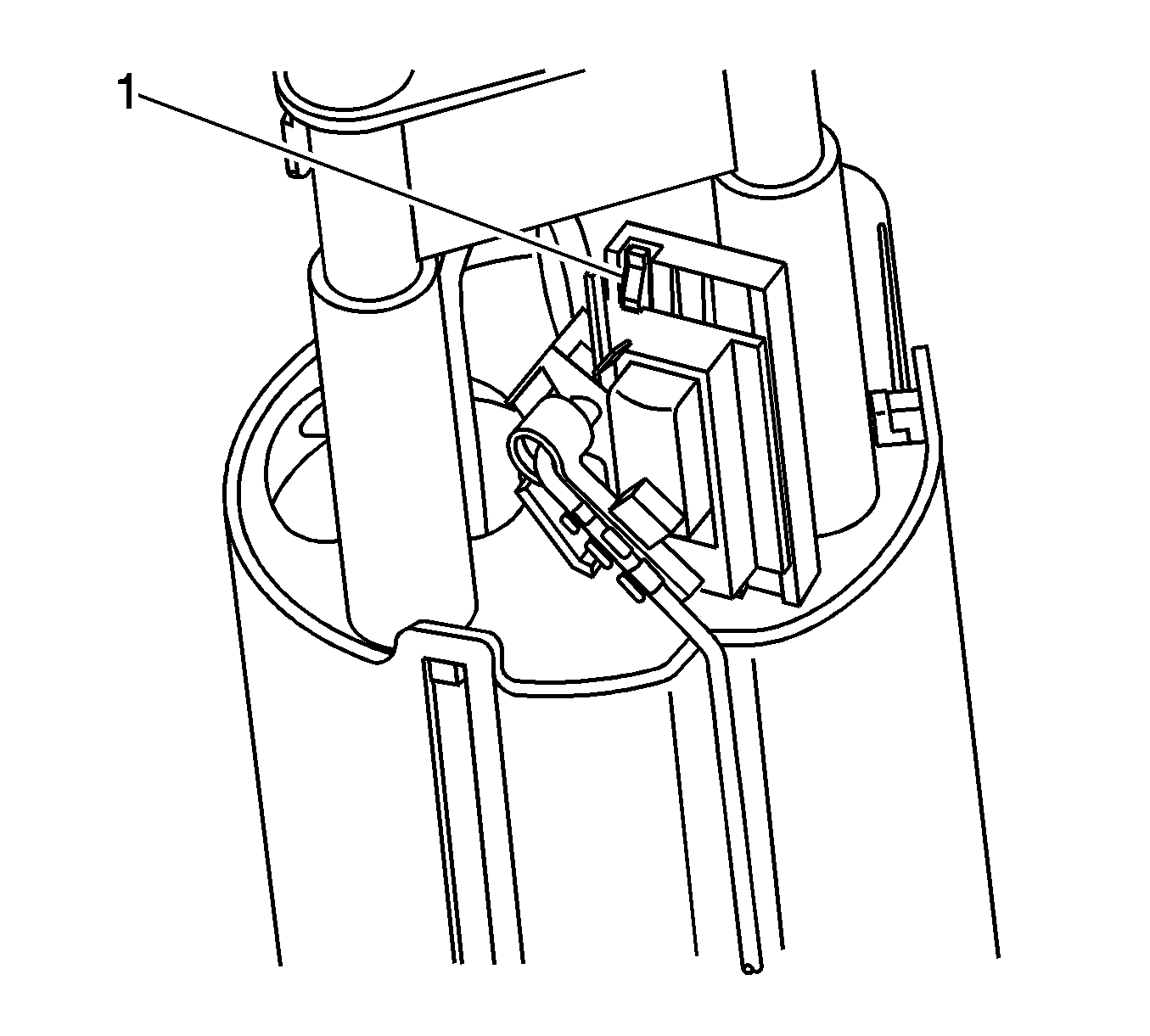

    5. Fig 2: View Of Level Sender Body Lock Tabs
    GM1690260Courtesy of GENERAL MOTORS COMPANY
  5. Push in the lock tab (1) above the level sender body and slide the level sender out of the slot.
  6. Remove the level sender from the module. Ensure wires are routed into the slot in the back of the level sender body.
