Right Side of Engine Components (LS3)

Component Name	Callout
Manifold Absolute Pressure (MAP) Sensor	1
Throttle Body	2
Evapoative Emission (EVAP) Canister Purge Solenoid Valve	3
A/C Compressor Clutch	4
Starter Motor X1	5
Knock Sensor (KS) 2	6
Engine Oil Level and Temperature Sensor	7
Crankshaft Position (CKP) Sensor	8
Starter Motor X2	9

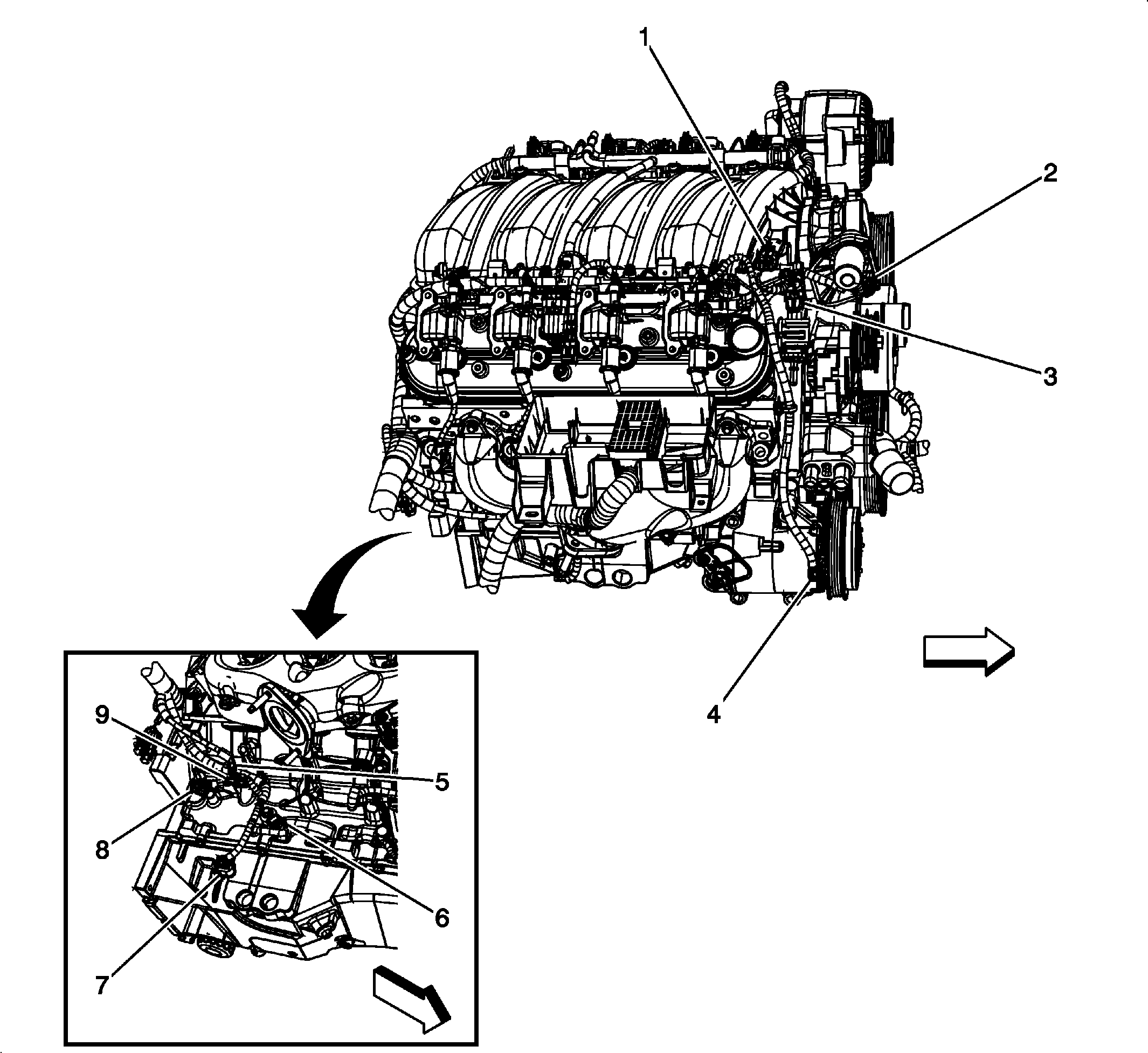

Fig 1: Manifold Absolute Pressure Sensor, Knock Sensor, Crankshaft Position Sensor And Engine Oil Level And Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY
