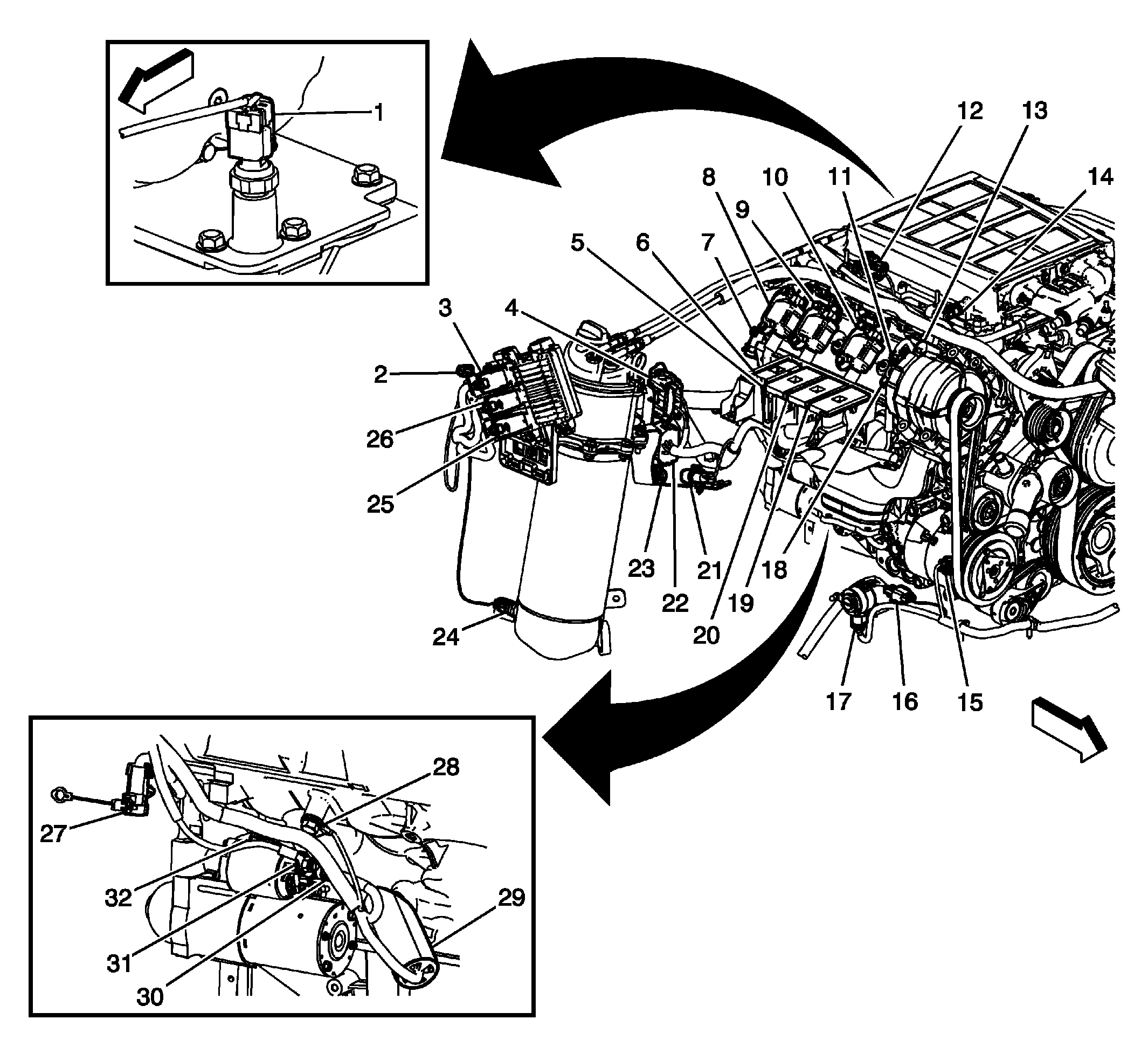

Right Side of Engine Components (LS9)
Right Side of Engine Components (LS9)
| Component Name | Callout |
|---|---|
| Engine Oil Pressure (EOP) Sensor | 1 |
| Turn Signal Repeater Lamp - Right (T90) | 2 |
| Engine Control Module (ECM) X1 | 3 |
| X180 | 4 |
| Fuse Block - Underhood X3 | 5 |
| Fuse Block - Underhood X4 | 6 |
| Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 | 7 |
| Ignition Coil 8 | 8 |
| Ignition Coil 6 | 9 |
| Ignition Coil 4 | 10 |
| Generator X1 | 11 |
| Manifold Absolute Pressure (MAP) Sensor | 12 |
| Generator X2 | 13 |
| Intake Ait Temtperature (IAT) Sensor 2 | 14 |
| A/C Compressor Clutch | 15 |
| Wheel Speed Sensor (WSS) - Right Front | 16 |
| Suspension Position Sensor - Right Front (FE2) | 17 |
| Ignition Coil 2 | 18 |
| Fuse Block - Underhood X1 | 19 |
| Fuse Block - Underhood X2 | 20 |
| X182 | 21 |
| X184 | 22 |
| X186 | 23 |
| Engine Oil Temperature Sensor (LS7/LS9) | 24 |
| Engine Control Module (ECM) X3 | 25 |
| Engine Control Module (ECM) X2 | 26 |
| Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 | 27 |
| G106 | 28 |
| Knock Sensor (KS) | 29 |
| Starter Motor X1 | 30 |
| Starter Motor X2 | 31 |
| Crankshaft Position (CKP) Sensor | 32 |
